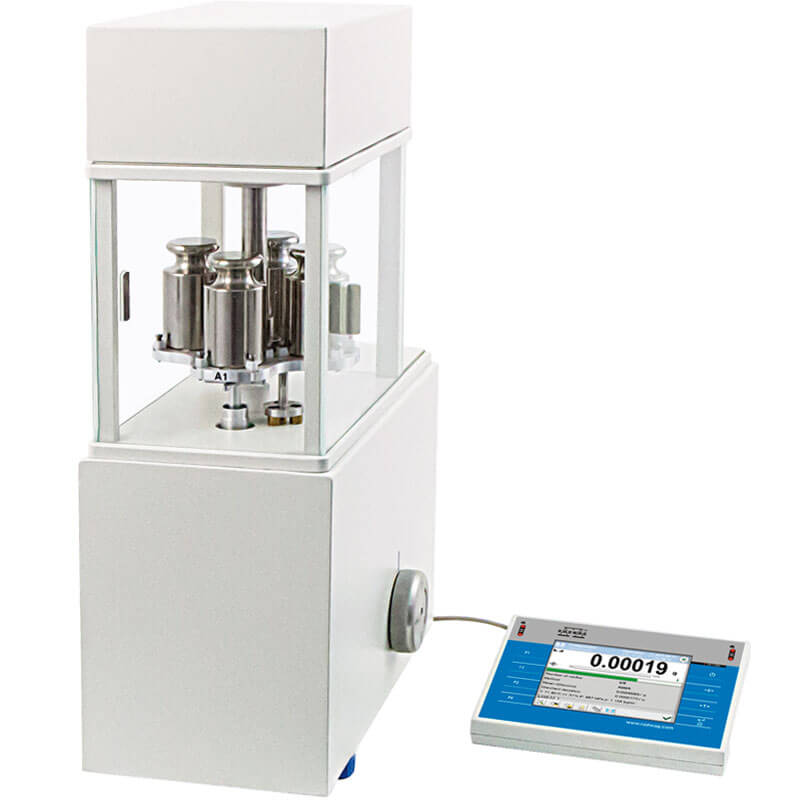

Name: AK-4 AUTOMATIC MASS COMPARATORS
SKU: R873
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-413-0004	AK-4/100	no	110g	0,001mg	ø30mm
WL-413-0002	AK-4/1000	no	1,02kg	0,005mg	ø50mm
WL-413-0008	AK-4/1001	no	1,02kg	0,001mg	ø50mm
WL-413-0005	AK-4/2000	no	2,05kg	0,01mg	ø70mm
WL-413-0006	AK-4/5000	no	5,05kg	0,01mg	ø70mm
WL-413-0009	AK-4/5000.1	no	5,05kg	0,1mg	ø70mm
WL-413-0007	AK-4/10000	no	10,02kg	0,01mg	ø100mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	110g
Readability [d]	0,001mg
Repeatability (5% Max)	0,002 mg (10 g)
Repeatability (Max)	0,002 mg (100 g)
Stabilization time	30s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	ø30mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	860×800×560mm
Adjustment	external
Net weight	45,8kg
Gross weight	65,8kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 4 h
Anti-draft chamber dimens	560×340×665mm
Chamber packaging size	950×420×630mm
Controling device dimensions	206×140×70mm
E1	10 g ÷ 100 g
E2	10 g ÷ 100 g
Eccentricity (tested load)	0mg
Electric compensation range	- 1 ÷ + 10g
F1	10 g ÷ 100 g
F2	10 g ÷ 100 g
M1	-
M2	-
Magazine positions	4
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	385×215×600mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	1,02kg
Readability [d]	0,005mg
Repeatability (5% Max)	0,012 mg (100 g)
Repeatability (Max)	0,012 mg (1 kg)
Stabilization time	30s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	ø50mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	860×800×560mm
Adjustment	external
Net weight	46,8kg
Gross weight	66,8kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	±2%/4h
Anti-draft chamber dimens	560×340×665mm
Chamber packaging size	950×420×630mm
Controling device dimensions	206×140×70mm
E1	100 g ÷ 1 kg
E2	100 g ÷ 1 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 10 ÷ + 20g
F1	100 g ÷ 1 kg
F2	100 g ÷ 1 kg
M1	-
M2	-
Magazine positions	4
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	385×215×600mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	1,02kg
Readability [d]	0,001mg
Repeatability (5% Max)	0,002 mg (100 g)
Repeatability (Max)	0,002 mg (1 kg)
Stabilization time	30s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	ø50mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	760×860×560mm
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	±2%/12h
Anti-draft chamber dimens	560×340×665mm
Chamber packaging size	950×420×630mm
Controling device dimensions	206×140×70mm
E1	100 g ÷ 1 kg
E2	100 g ÷ 1 kg
Eccentricity (tested load)	0mg
Electric compensation range	1 ÷ 10g
F1	100 g ÷ 1 kg
F2	100 g ÷ 1 kg
M1	-
M2	-
Magazine positions	4
Net weight (with table)
Net weight (without table)
Net weight/gross weight	25 kg / 41 kg
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	385×215×600mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	2,05kg
Readability [d]	0,01mg
Repeatability (5% Max)	0,015 mg (200 g)
Repeatability (Max)	0,015 mg (2 kg)
Stabilization time	30s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	ø70mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	860×800×560mm
Adjustment	external
Net weight	68kg
Gross weight	95kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 4 h
Anti-draft chamber dimens	560×340×665mm
Chamber packaging size	950×420×630mm
Controling device dimensions	206×140×70mm
E1	200 g ÷ 2 kg
E2	200 g ÷ 2 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 10 ÷ + 20g
F1	200 g ÷ 2 kg
F2	200 g ÷ 2 kg
M1	-
M2	-
Magazine positions	4 pozycje
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	385×215×600mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	5,05kg
Readability [d]	0,01mg
Repeatability (5% Max)	0,02 mg (1 kg)
Repeatability (Max)	0,02 mg (5 kg)
Stabilization time	30s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	ø70mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	1000×900×685mm
Adjustment	external
Net weight	70kg
Gross weight	97kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 4 h
Anti-draft chamber dimens	660×470×700mm
Chamber packaging size	930×750×1000mm
Controling device dimensions	206×140×70mm
E1	1 kg ÷ 5 kg
E2	1 kg ÷ 5 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 10 ÷ + 50g
F1	1 kg ÷ 5 kg
F2	1 kg ÷ 5 kg
M1	-
M2	-
Magazine positions
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	350×405×650mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

AK-4 AUTOMATIC MASS COMPARATORS
