PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

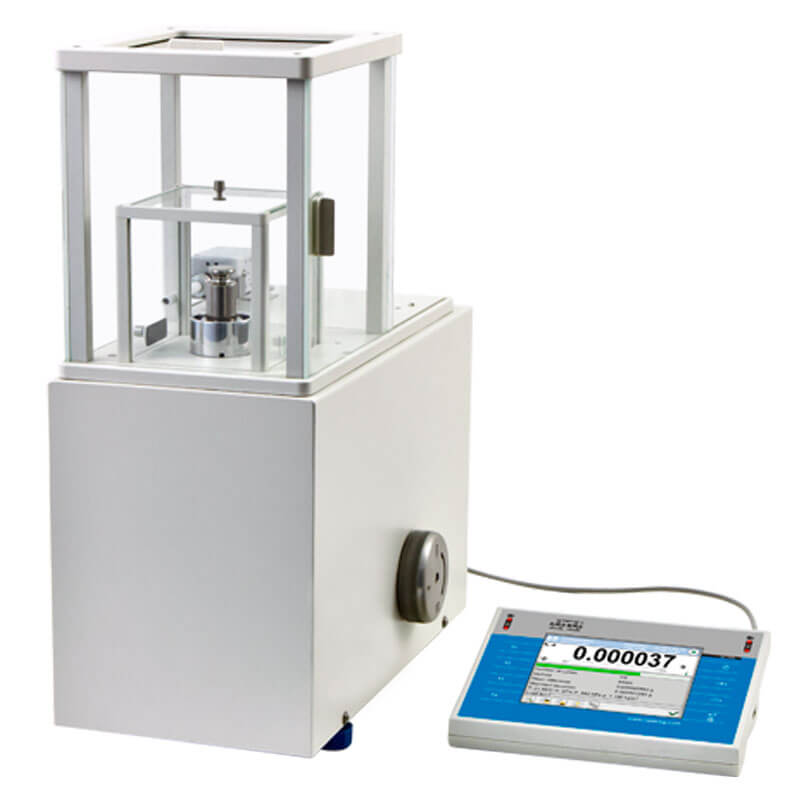

WAY.4Y.KO MANUAL MASS COMPARATORS - WAY 100.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,001mg |
|---|
| Repeatability (5% Max) | 0,003 mg (100 mg) |
|---|
| Repeatability (Max) | 0,003 mg (100 g) |
|---|
| Stabilization time | 30s |
|---|
| Operating temperature | +15 - +30°C |
|---|
| Weighing pan dimensions | ø 30mm |
|---|
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
|---|
| Packaging dimensions | 860×800×550mm |
|---|
| Adjustment | external |
|---|
| Net weight | 35,5kg |
|---|
| Gross weight | 55,5kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ± 3 % / 4 h |
|---|
| Anti-draft chamber dimens | 560×340×570mm |
|---|
| Chamber packaging size | 820×850×630mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 5 g ÷ 100 g |
|---|
| E2 | 100 mg ÷ 100 g |
|---|
| Eccentricity (tested load) | 1 d / 1 |
|---|
| Electric compensation range | - 1 g ÷ + 10 g |
|---|
| F1 | 1 mg ÷ 100 g |
|---|
| F2 | 1 mg ÷ 100 g |
|---|
| M1 | 1 mg ÷ 100 g |
|---|
| M2 | 1 mg ÷ 100 g |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 10g |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 385×215×500mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ± 0,5 °C / 12 h (± 0,3 °C / 4 h) |
|---|
PRODUCT DATASHEET
WAY.4Y.KO MANUAL MASS COMPARATORS - WAY 500.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,01mg |
|---|
| Repeatability (5% Max) | 0,02 mg (100 mg) |
|---|
| Repeatability (Max) | 0,02 mg (500 g) |
|---|
| Stabilization time | 30s |
|---|
| Operating temperature | +15 - +30°C |
|---|
| Weighing pan dimensions | ø 50mm |
|---|
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
|---|
| Packaging dimensions | 860×800×550mm |
|---|
| Adjustment | external |
|---|
| Net weight | 36,5kg |
|---|
| Gross weight | 56,5kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ± 3 % / 4 h |
|---|
| Anti-draft chamber dimens | 560×300×665 |
|---|
| Chamber packaging size | 820×850×630mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 200 g ÷ 500 g |
|---|
| E2 | 10 g ÷ 500 g |
|---|
| Eccentricity (tested load) | 1 d / 1 |
|---|
| Electric compensation range | - 10 g ÷ + 20 g |
|---|
| F1 | 1 g ÷ 500 g |
|---|
| F2 | 1 g ÷ 500 g |
|---|
| M1 | 1 g ÷ 500 g |
|---|
| M2 | 1 g ÷ 500 g |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 30 g, 2 × 10 gg |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 385×215×420mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ± 0,5 °C / 12 h (± 0,3 °C / 4 h) |
|---|
PRODUCT DATASHEET

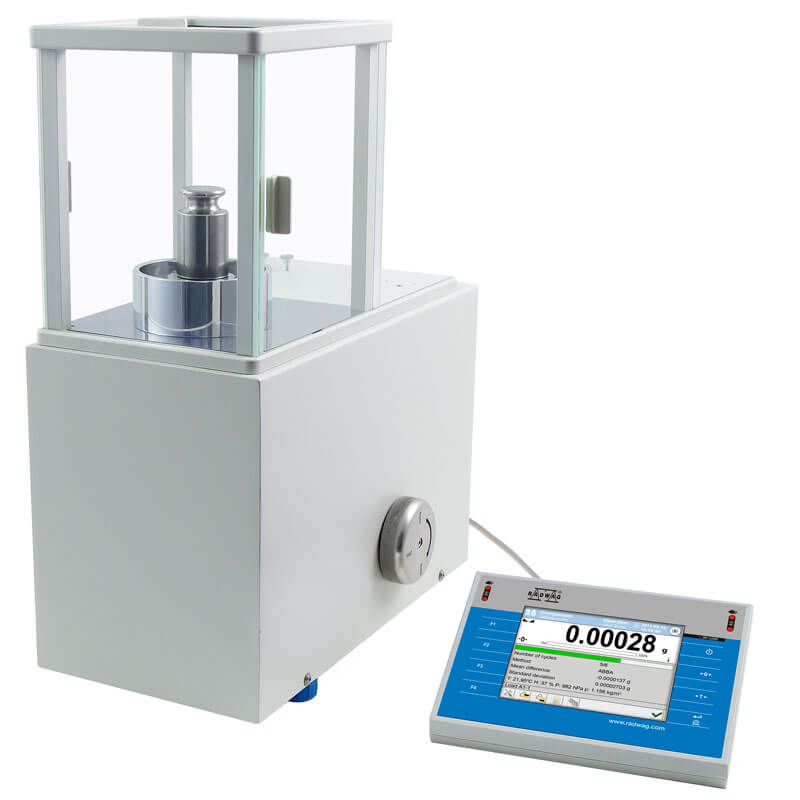

WAY.4Y.KO MANUAL MASS COMPARATORS - WAY 1.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,01mg |
|---|
| Repeatability (5% Max) | 0,035 mg (1 g) |
|---|
| Repeatability (Max) | 0,035 mg (1 kg) |
|---|
| Stabilization time | 30s |
|---|
| Operating temperature | +15 - +30°C |
|---|
| Weighing pan dimensions | ø 60mm |
|---|
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
|---|
| Packaging dimensions | 860×800×550mm |
|---|
| Adjustment | external |
|---|
| Net weight | 37kg |
|---|
| Gross weight | 57kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ± 3 % / 4 h |
|---|
| Anti-draft chamber dimens | 660×470×700mm |
|---|
| Chamber packaging size | 820×850×630mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 500 g ÷ 1 kg |
|---|
| E2 | 100 g ÷ 1 kg |
|---|
| Eccentricity (tested load) | 1 d / 1 |
|---|
| Electric compensation range | - 10 g ÷ + 20 g |
|---|
| F1 | 10 g ÷ 1 kg |
|---|
| F2 | 1 g ÷ 1 kg |
|---|
| M1 | 1 g ÷ 1 kg |
|---|
| M2 | 1 g ÷ 1 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 50 g, 30 g, 2 x 10 gg |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 385×215×420mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ± 0,5 °C / 12 h (± 0,3 °C / 4 h) |
|---|
PRODUCT DATASHEET
WAY.4Y.KO MANUAL MASS COMPARATORS - WAY 2.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,1mg |
|---|
| Repeatability (5% Max) | 0,1 mg (1 g) |
|---|
| Repeatability (Max) | 0,1 mg (2 kg) |
|---|
| Stabilization time | 20s |
|---|
| Operating temperature | +15 - +30°C |
|---|
| Weighing pan dimensions | ø 70mm |
|---|
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
|---|
| Packaging dimensions | 860×800×550mm |
|---|
| Adjustment | external |
|---|
| Net weight | 38,5kg |
|---|
| Gross weight | 58,5kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ±3%/4h |
|---|
| Anti-draft chamber dimens | 660×470×700 |
|---|
| Chamber packaging size | 820×850×630mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 1 kg ÷ 2 kg |
|---|
| E2 | 500 g ÷ 2 kg |
|---|
| Eccentricity (tested load) | 1 d / 1 |
|---|
| Electric compensation range | - 50 g ÷ + 300 g |
|---|
| F1 | 100 g ÷ 2 kg |
|---|
| F2 | 10 g ÷ 2 kg |
|---|
| M1 | 1 g ÷ 1 kg |
|---|
| M2 | 1 kg ÷ 1 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 2×100 g |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 385×215×420mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ± 0,5 °C / 12 h (± 0,3 °C / 4 h) |
|---|
PRODUCT DATASHEET

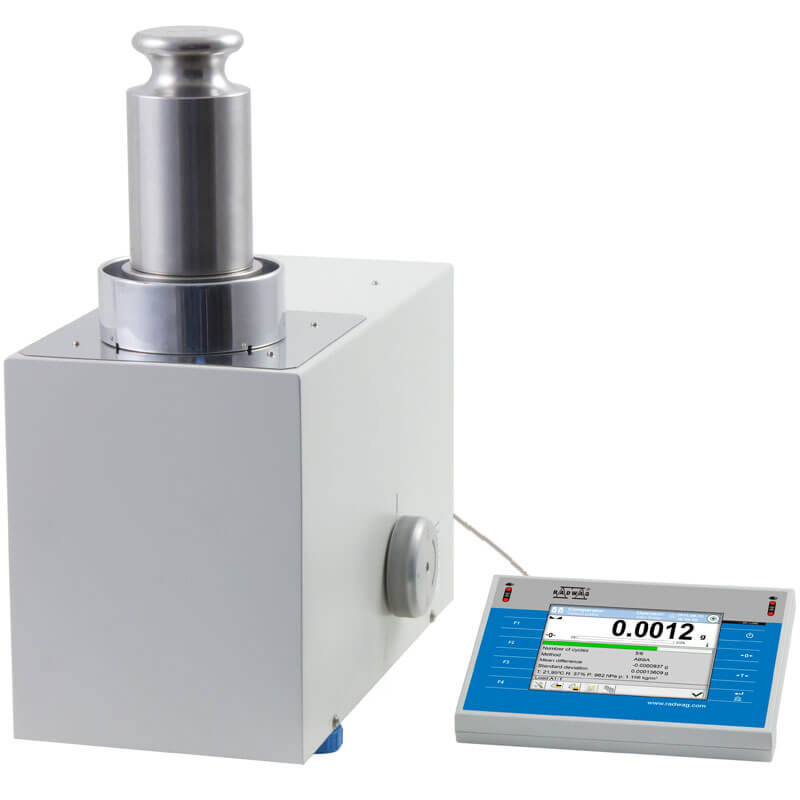

WAY.4Y.KO MANUAL MASS COMPARATORS - WAY 5.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,1mg |
|---|
| Repeatability (5% Max) | 0,2 mg (1 g) |
|---|
| Repeatability (Max) | 0,2 mg (5 kg) |
|---|
| Stabilization time | 20s |
|---|
| Operating temperature | +15 - +30°C |
|---|
| Weighing pan dimensions | ø 90mm |
|---|
| Power supply | 110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC |
|---|
| Packaging dimensions | 860×800×550mm |
|---|
| Adjustment | external |
|---|
| Net weight | 38kg |
|---|
| Gross weight | 58kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ±5%/4h |
|---|
| Anti-draft chamber dimens | 560×340×570mm |
|---|
| Chamber packaging size | 820×850×630mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 2 kg ÷ 5 kg |
|---|
| E2 | 500 g ÷ 5 kg |
|---|
| Eccentricity (tested load) | 1 d / 1 |
|---|
| Electric compensation range | - 10 g ÷ + 50 g |
|---|
| F1 | 100 g ÷ 5 kg |
|---|
| F2 | 10 g ÷ 5 kg |
|---|
| M1 | 1 g ÷ 1 kg |
|---|
| M2 | 1 g ÷ 1 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 500 g, 300 g, 100 g, 50 g, 30 g, 2x10 g |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 560×340×550mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ± 0,5 °C / 12 h (± 0,3 °C / 4 h) |
|---|
