COMMUNICATION MODULE
Code: R744
PRODUCT DESCRIPTION
Please, use model selector above to see product description.
PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET
COMMUNICATION MODULE - IM01EX-1
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | ×1 |
| Housing | aluminum |
| Inputs/Outputs | 4 IN / 4 OUT |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
PRODUCT DATASHEET
COMMUNICATION MODULE - IM01EX-2
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | analog output 4-20mA/0-10V |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | ×1 |
| Housing | aluminum |
| Inputs/Outputs | 4 IN / 4 OUT |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
PRODUCT DATASHEET
COMMUNICATION MODULE - IM01EX-3
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | 12 IN / 12 OUT (digital) |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | ×1 |
| Housing | aluminum |
| Inputs/Outputs | |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
PRODUCT DATASHEET
COMMUNICATION MODULE - IM01EX-4
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | Profibus DP |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | ×1 |
| Housing | aluminum |
| Inputs/Outputs | 4 IN / 4 OUT |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
PRODUCT DATASHEET
COMMUNICATION MODULE - IM01EX-5
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | Profinet |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | |
| Housing | aluminum |
| Inputs/Outputs | 4 IN / 4 OUT |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
PRODUCT DATASHEET

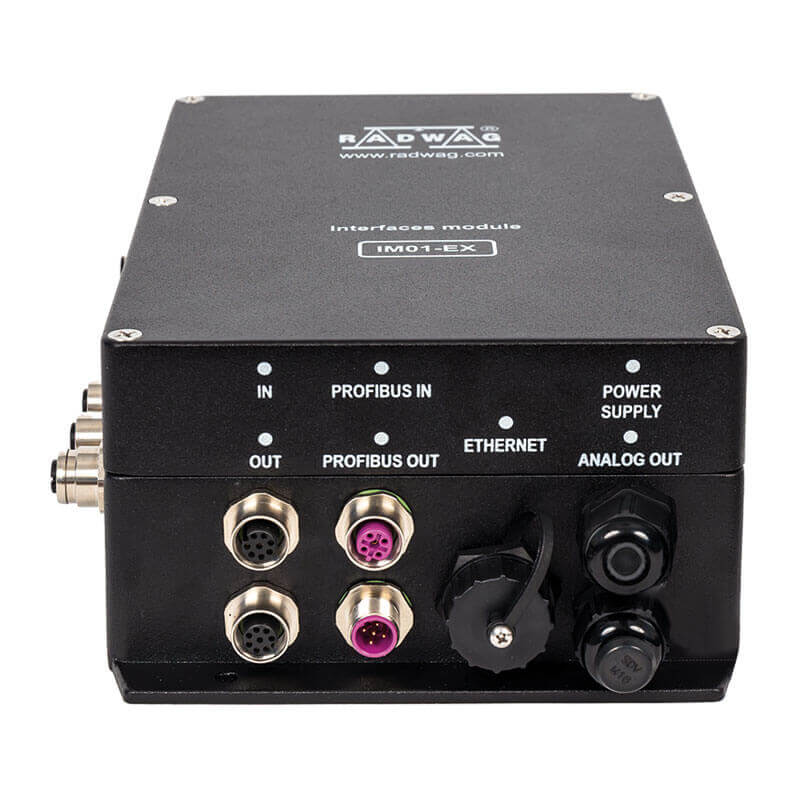

COMMUNICATION MODULE - IM01EX-8
| Operating temperature | -10 ÷ +40°C |
|---|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Communication interface | RS485 |
| Atmospheric humidity | 10÷85% RH no condensation |
| Power consumption | 10 W |
| Conformity with ATEX | II (2)G [Ex ib] IIC Gb II (2)D [Ex ib] IIIC Db |
| Device dimensions | 222×146×81mm |
| Ethernet | ×1 |
| Housing | aluminum |
| Inputs/Outputs | 4 IN / 4 OUT |
| Net weight/gross weight | 1,9 / 2,5kg |
| Protection class | IP 66 / IP 68 (1,5m) |
| RS 232 | ×2 |
| Storage temperature | -20 ÷ +60°C |
| USB | ×1 |
