PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

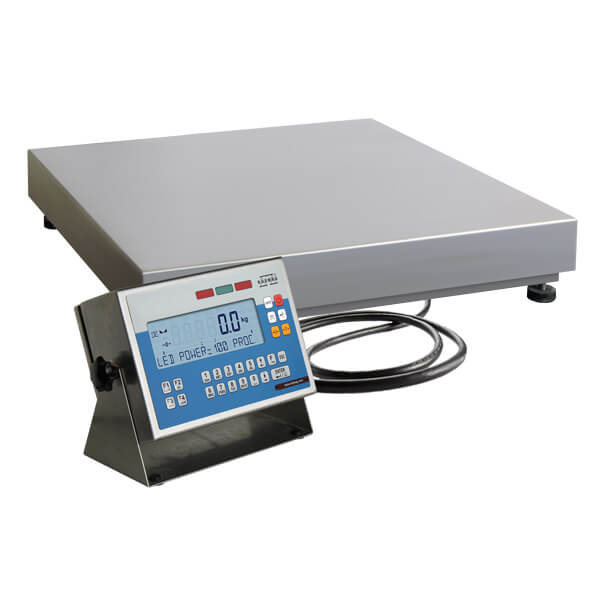

WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 15/H2/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250x300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 580×320×360mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 9,2 / 10,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 15/H3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 15,7 / 17,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 150/H3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 15,7 / 17,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 150/H4/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 840×600×400mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 23,7 / 26kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 150/H5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 840×700×400mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 29,7 / 32kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 150/H6/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 1160×820×340mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 42,7 / 46kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET

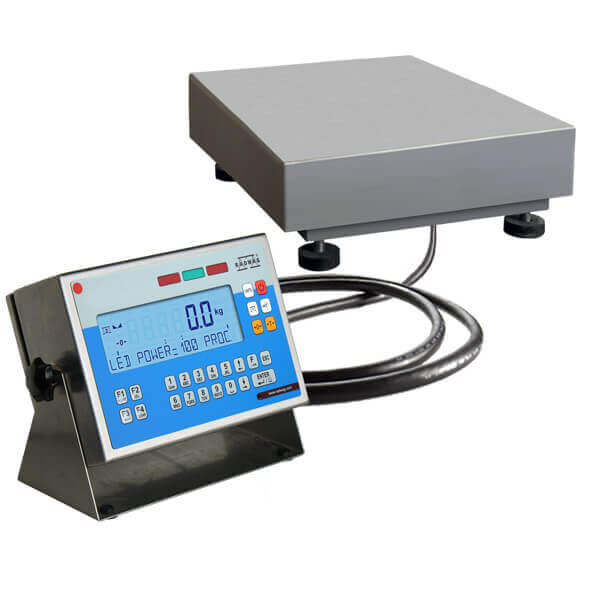

WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 3/H1/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 520×260×290mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 7,2 / 8,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 30/H3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 15,7 / 17,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 300/H5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 840×700×400mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 29,7 / 32kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 300/H6/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 1160×820×340mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 42,7 / 46kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 6/H2/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250x300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 580×320×360mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 9,2 / 10,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 60/H3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 15,7 / 17,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 60/H4/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 840×600×400mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 23,7 / 26kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPW H STAINLESS STEEL MULTIFUNCTIONAL SCALES - WPW 60/H5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232, RS 485 |
|---|
| Packaging dimensions | 840×700×400mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 29,7 / 32kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 9 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
