Name: WPT/4N/H.LD STAINLESS STEEL RAMP SCALES
SKU: R422
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-206-0032	WPT/4N 150 H1.LD	yes	150kg	50g	840×860mm
WP-206-0030	WPT/4N 1500 H2.LD	yes	1500kg	500g	1100×1200mm
WP-206-0031	WPT/4N 1500 H3.LD	yes	1500kg	500g	1200×1500mm
WP-206-0041	WPT/4N 1500 H4.LD	yes	1500kg	500g	1500×1500mm
WP-206-0033	WPT/4N 300 H1.LD	yes	300kg	100g	840×860mm
WP-206-0035	WPT/4N 300 H2.LD	yes	300kg	100g	1100×1200mm
WP-206-0037	WPT/4N 300 H3.LD	yes	300kg	100g	1200×1500mm
WP-206-0039	WPT/4N 300 H4.LD	yes	300kg	100g	1500×1500mm
WP-206-1025	WPT/4N 300/600 H1.LD	yes	300/600kg	100/200g	840×860mm
WP-206-1027	WPT/4N 300/600 H2.LD	yes	300/600kg	100/200g	1100×1200mm
WP-206-1028	WPT/4N 300/600 H3.LD	yes	300/600kg	100/200g	1200×1500mm
WP-206-1030	WPT/4N 300/600 H4.LD	yes	300/600kg	100/200g	1500×1500mm
WP-206-0034	WPT/4N 600 H1.LD	yes	600kg	200g	840×860mm
WP-206-0036	WPT/4N 600 H2.LD	no	600kg	200g	1100×1200mm
WP-206-0038	WPT/4N 600 H3.LD	yes	600kg	200g	1200×1500mm
WP-206-0040	WPT/4N 600 H4.LD	yes	600kg	200g	1500×1500mm
WP-206-1026	WPT/4N 600/1500 H2.LD	yes	600/1500kg	200/500g	1100×1200mm
WP-206-1029	WPT/4N 600/1500 H3.LD	yes	600/1500kg	200/500g	1200×1500mm
WP-206-1031	WPT/4N 600/1500 H4.LD	yes	600/1500kg	200/500g	1500×1500mm

PRODUCT DESCRIPTION

Please, use model selector above to see product description.

PRODUCT DOCUMENTS

Technical Documentation

User Manual
User Manual
Data Sheet
Conformity Declaration

Publications and teaching materials

Terminal and Scales Operated in Industry

PRODUCT DATASHEET

Please, use model selector above to see product datasheet.

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 150 H1.LD

Maximum capacity [Max]	150kg
Readability [d]	50g
Tare range	-150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1716×1290×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 1500 H2.LD

Maximum capacity [Max]	1500kg
Readability [d]	500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2106×1550×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	190kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

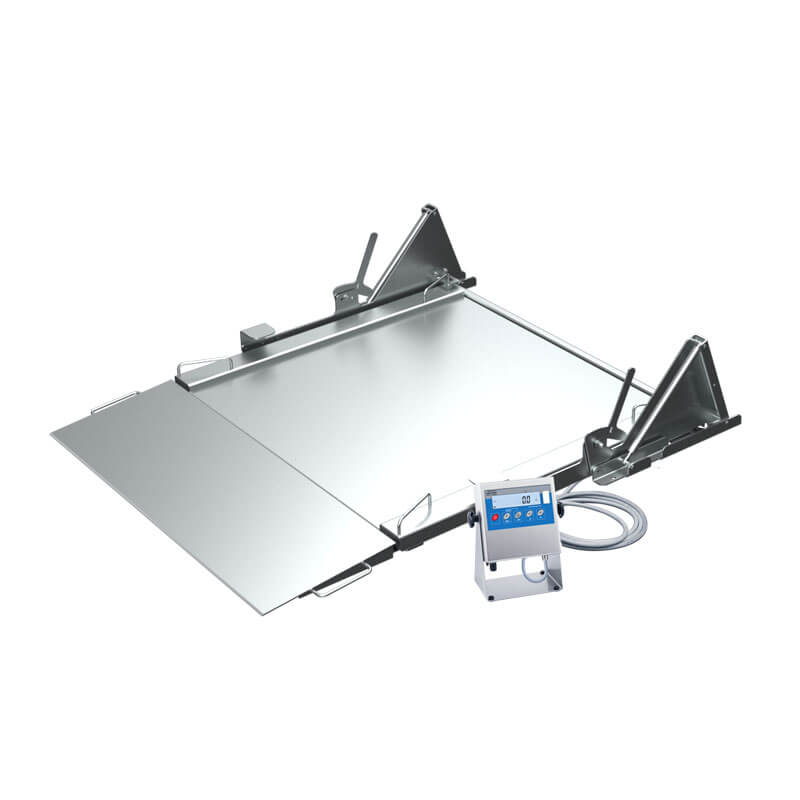

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 1500 H3.LD

Maximum capacity [Max]	1500kg
Readability [d]	500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1200×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1650×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	230kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 1500 H4.LD

Maximum capacity [Max]	1500kg
Readability [d]	500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1500×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1950×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	270kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300 H1.LD

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1716×1290×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300 H2.LD

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2056×1550×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300 H3.LD

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1200×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2356×1650×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	180kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300 H4.LD

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1500×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1950×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	270kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300/600 H1.LD

Maximum capacity [Max]	300/600kg
Readability [d]	100/200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1716×1290×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300/600 H2.LD

Maximum capacity [Max]	300/600kg
Readability [d]	100/200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2056×1550×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300/600 H3.LD

Maximum capacity [Max]	300/600kg
Readability [d]	100/200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1200×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2356×1650×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	180kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 300/600 H4.LD

Maximum capacity [Max]	300/600kg
Readability [d]	100/200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1500×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1950×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	270kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600 H1.LD

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1716×1290×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600 H2.LD

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2056×1550×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600 H3.LD

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1200×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2356×1650×45mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	180kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600 H4.LD

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1500×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1950×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	270kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600/1500 H2.LD

Maximum capacity [Max]	600/1500kg
Readability [d]	200/500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2106×1550×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600/1500 H3.LD

Maximum capacity [Max]	600/1500kg
Readability [d]	200/500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1200×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1650×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	180kg
Scale mass with indic, frame
Weighing platform height

PRODUCT DATASHEET

WPT/4N/H.LD STAINLESS STEEL RAMP SCALES - WPT/4N 600/1500 H4.LD

Maximum capacity [Max]	600/1500kg
Readability [d]	200/500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1500×1500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2406×1950×52mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	270kg
Scale mass with indic, frame
Weighing platform height
