PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.16.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 0,1g |
|---|
| Tare range | -16kg |
|---|
| Linearity | ±0,1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 550×463×350mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 24,7/28,7kg |
|---|
| OIML Class | |
|---|
| Preload range | 4kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,1g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.32.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 0,1g |
|---|
| Tare range | -32kg |
|---|
| Linearity | ±0,3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 550×463×350mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 24,7/28,7kg |
|---|
| OIML Class | |
|---|
| Preload range | 4kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,1g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.62.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 25g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -62kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET

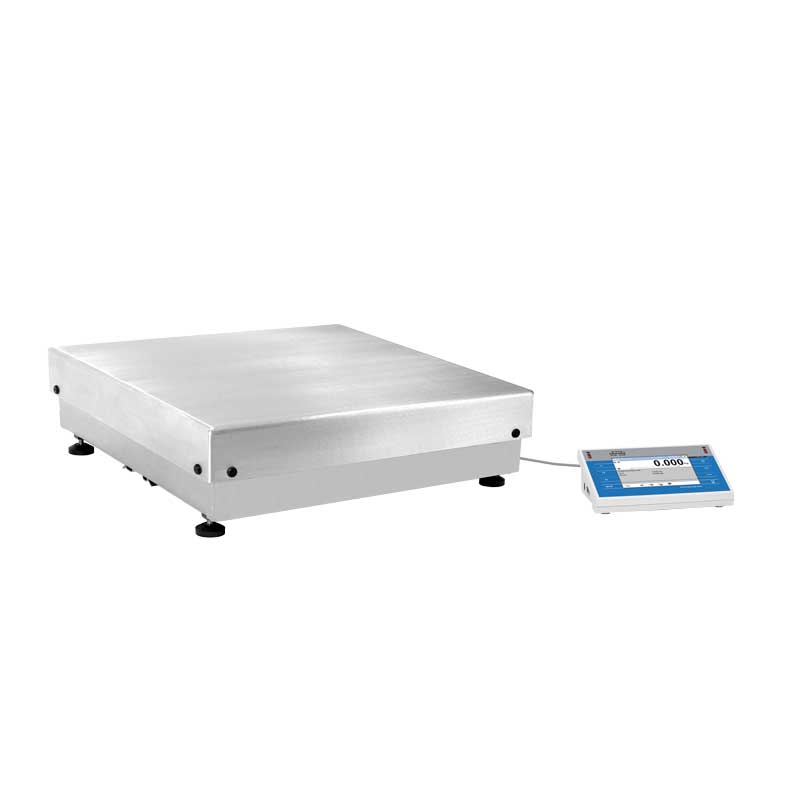

PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.120.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -120kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | |
|---|
| Preload range | 10kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,6g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.150.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -150kg |
|---|
| Linearity | ±3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 1,5g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.1.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET

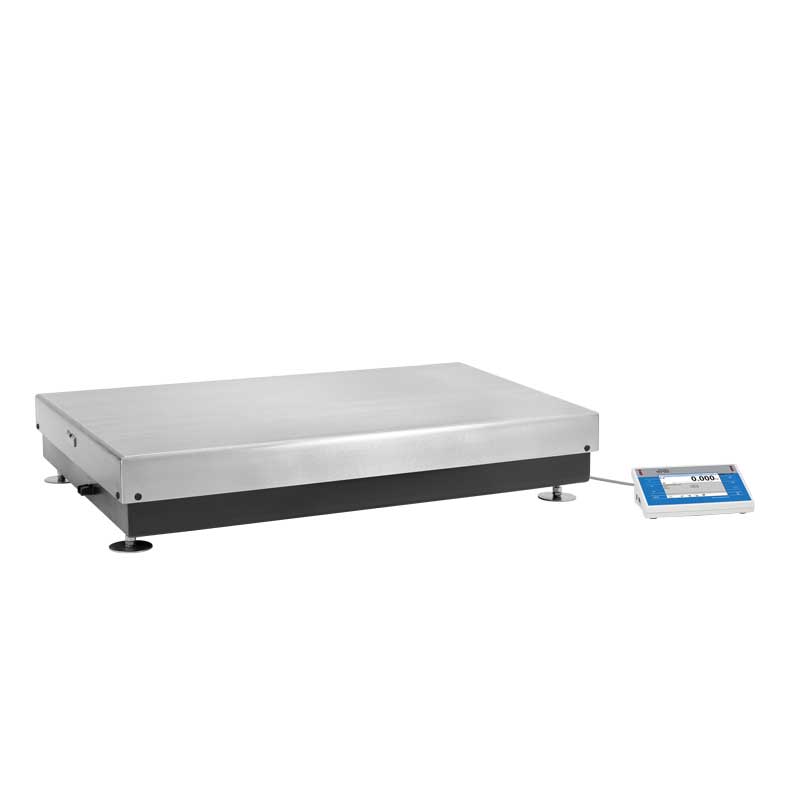

PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.600.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 250g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -600kg |
|---|
| Linearity | ±15g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 7,5g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.1100.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 500g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -1100kg |
|---|
| Linearity | ±30g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | |
|---|
| Preload range | 100kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 15g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.2000.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | 1000g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -2000kg |
|---|
| Linearity | ±60g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/ºC in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1250×1000mm |
|---|
| Power supply | 120 ÷ 240 VAC; 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1500×1250×615mm |
|---|
| Adjustment | internal |
|---|
| Net weight | 300kg |
|---|
| Gross weight | 425kg |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | |
|---|
| Preload range | 200kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 30g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | |
|---|
PRODUCT DATASHEET

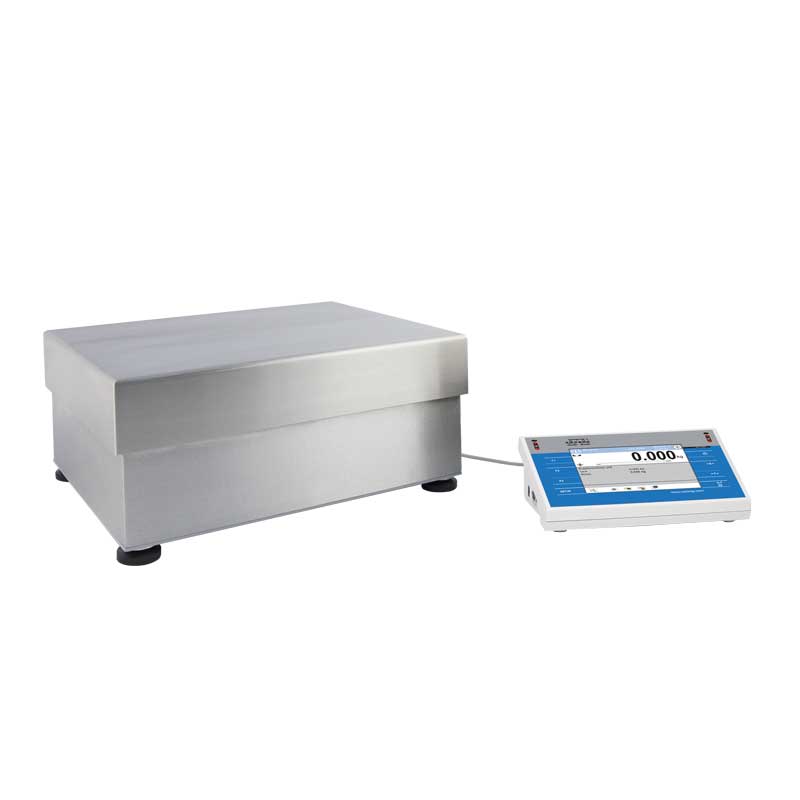

PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.32.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 0,1g |
|---|
| Tare range | -32kg |
|---|
| Linearity | ±0,3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 550×463×350mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 32 000 e |
|---|
| Net weight/gross weight | 24,7/28,7kg |
|---|
| OIML Class | II |
|---|
| Preload range | 4kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,1g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 1g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.32.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -32kg |
|---|
| Linearity | ±0,3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 550×463×350mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 16 000 e |
|---|
| Net weight/gross weight | 24,7/28,7kg |
|---|
| OIML Class | II |
|---|
| Preload range | 4kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,1g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 2g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.32.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 1/2/5g |
|---|
| Tare range | -32kg |
|---|
| Linearity | ±0,3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 550×463×350mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 400 e |
|---|
| Net weight/gross weight | 24,7/28,7kg |
|---|
| OIML Class | III |
|---|
| Preload range | 4kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,1g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 1/2/5g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.62.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 25g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -62kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 6 200 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | II |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.62.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 25g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -62kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 32 000 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | II |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 2g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.62.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 25g |
|---|
| Readability [d] | 2/5/10g |
|---|
| Tare range | -62kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 200 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | III |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 2/5/10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.120.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -120kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 12 000 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | II |
|---|
| Preload range | 10kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,6g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.120.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -120kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 24 000 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | II |
|---|
| Preload range | 10kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,6g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 5g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.120.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 5/10/20g |
|---|
| Tare range | -120kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 700×700×295mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 000 e |
|---|
| Net weight/gross weight | 37/52kg |
|---|
| OIML Class | III |
|---|
| Preload range | 10kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 0,6g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 5/10/20g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.150.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -150kg |
|---|
| Linearity | ±3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 15 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | II |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 1,5g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.150.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -150kg |
|---|
| Linearity | ±3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 30 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | II |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 1,5g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 5g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.150.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 5/10/20g |
|---|
| Tare range | -150kg |
|---|
| Linearity | ±3g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | III |
|---|
| Preload range | 30kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 1,5g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 5/10/20g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 30 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | II |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 15 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | II |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 10/20/50g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 800×600mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1000×800×307mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 000 e |
|---|
| Net weight/gross weight | 71,5/119kg |
|---|
| OIML Class | III |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10/20/50g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.1.HRP.M2.1
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 30 000 e |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | II |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.1.HRP.M2.2
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 15 000 e |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | II |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
PUE 7.1.HRP HIGH RESOLUTION SCALES - PUE 7.1.300.1.HRP.M3
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 10/20/50g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ±6g |
|---|
| Stabilization time | ~ 3s |
|---|
| Sensitivity drift | 2 ppm/?C in temperature +10 ÷ +40°C |
|---|
| Operating temperature | +10° ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | 120 ÷ 240 VAC 6,5 ÷ 28 VDC / 21W |
|---|
| Display | 5,7' ' (panel touchscreen) |
|---|
| Communication interface | 2×RS232, 2×USB, 1×Ethernet, 4×IN/4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 1200×1000×328mm |
|---|
| Adjustment | internal |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Ethernet | |
|---|
| Housing | construction - mild steel, weighing pan - stainless steel |
|---|
| Inputs/Outputs | |
|---|
| Max qty of verific units | 10 000/10 000/6 000 e |
|---|
| Net weight/gross weight | 126/160kg |
|---|
| OIML Class | III |
|---|
| Preload range | 60kg |
|---|
| Protection class | construction IP 66/67, terminal IP43 |
|---|
| Repeatability | 3g |
|---|
| RS 232 | |
|---|
| USB | |
|---|
| Verification scale interval | 10/20/50g |
|---|
