Name: HY10.HRP HIGH RESOLUTION SCALES
SKU: R328
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-330-0015	HY10.32.HRP.M2.1	yes	32 kg	0.1 g	360×280 mm
WP-330-0010	HY10.16.HRP	no	16kg	0,1g	360×280mm
WP-330-0009	HY10.32.HRP	no	32kg	0,1g	360×280mm
WP-330-0001	HY10.62.HRP	no	62kg	0,5g	500×500mm
WP-330-0007	HY10.120.HRP	no	120kg	1g	500×500mm
WP-330-0002	HY10.150.HRP	no	150kg	1g	800×600mm
WP-330-0003	HY10.300.HRP	no	300kg	2g	800×600mm
WP-330-0004	HY10.300.1.HRP	no	300kg	2g	1000×800mm
WP-330-0005	HY10.600.HRP	no	600kg	5g	1000×800mm
WP-330-0006	HY10.1100.HRP	no	1100kg	10g	1000×800mm
WP-330-0012	HY10.2000.HRP	no	2000kg	20g	1250×1000mm
WP-330-0023	HY10.300.HRP.M2.1	yes	300kg	1g	800×600mm
WP-330-0016	HY10.32.HRP.M2.2	yes	32 kg	2 g	360×280 mm
WP-330-1001	HY10.32.HRP.M3	yes	10/20/32kg	1/2/5g	360×280mm
WP-330-0018	HY10.62.HRP.M2.2	yes	62kg	2g	500×500mm
WP-330-1002	HY10.62.HRP.M3	yes	20/50/62kg	2/5/10g	500×500mm
WP-330-0019	HY10.120.HRP.M2.1	yes	120 kg	1 g	500×500 mm
WP-330-0021	HY10.150.HRP.M2.1	yes	150kg	1g	800×600mm
WP-330-0020	HY10.120.HRP.M2.2	yes	120kg	5g	500×500mm
WP-330-1003	HY10.120.HRP.M3	yes	50/100/120kg	5/10/20g	500×500mm
WP-330-0022	HY10.150.HRP.M2.2	yes	150kg	5g	800×600mm
WP-330-1004	HY10.150.HRP.M3	yes	50/100/150kg	5/10/20g	800×600mm
WP-330-0024	HY10.300.HRP.M2.2	yes	300kg	20g	800×600mm
WP-330-1005	HY10.300.HRP.M3	yes	100/200/300kg	10/20/50g	800×600mm
WP-330-0025	HY10.300.1.HRP.M2.1	yes	300kg	1g	1000×800mm
WP-330-0026	HY10.300.1.HRP.M2.2	yes	300kg	20g	1000×800mm
WP-330-1006	HY10.300.1.HRP.M3	yes	100/200/300kg	10/20/50g	1000×800mm

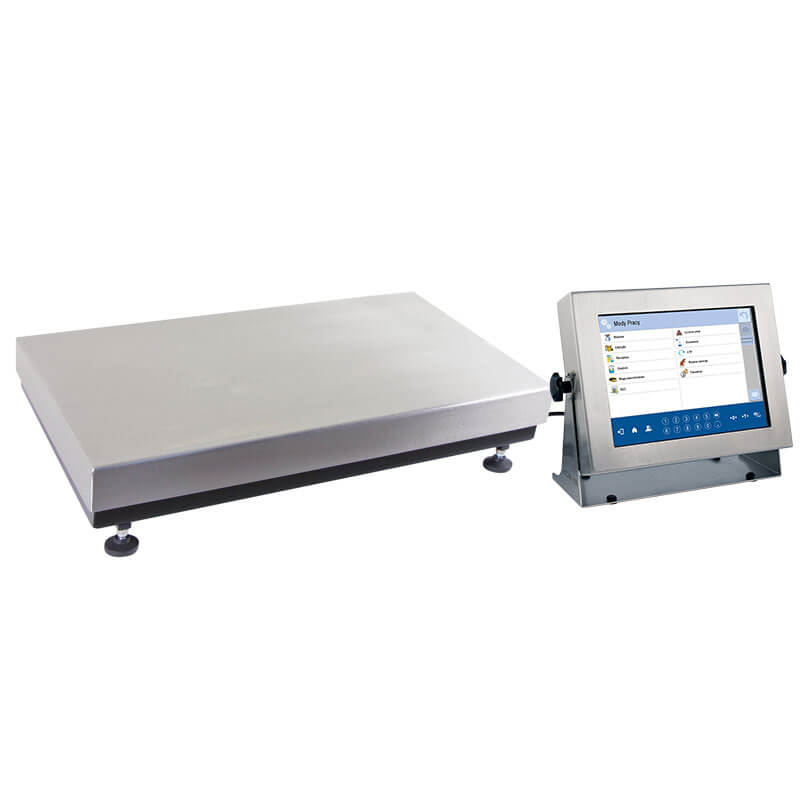

WP-330-0027	HY10.600.HRP.M2.1	yes	600kg	10g	1000×800mm
WP-330-0028	HY10.600.HRP.M2.2	yes	600kg	20g	1000×800mm
WP-330-1007	HY10.600.HRP.M3	yes
WP-330-0017	HY10.62.HRP.M2.1	no	62kg	1g	500×500mm

Maximum capacity [Max]	16kg
Minimum load	5g
Readability [d]	0,1g
Tare range	-16kg
Linearity	±0,1g
Stabilization time	2s
Sensitivity drift	2 ppm/°C in temperature +10° ÷ +40 °C
Operating temperature	+10° ÷ +40°C
Weighing pan dimensions	360×280mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	10,1" widescreen colour dispaly 1024×600
Communication interface
Packaging dimensions
Adjustment	internal
Net weight	24,7kg
Gross weight	28,7kg
Atmospheric humidity	40% ÷ 80%
Device dimensions
Ethernet	×1
Housing
Inputs/Outputs	4 IN / 4 OUT
Max qty of verific units
Net weight/gross weight
OIML Class
Preload range	4kg
Protection class	IP 66/67 construction, IP 68/69 indicator
Repeatability	0,1g
RS 232	×2
USB	×2
Verification scale interval

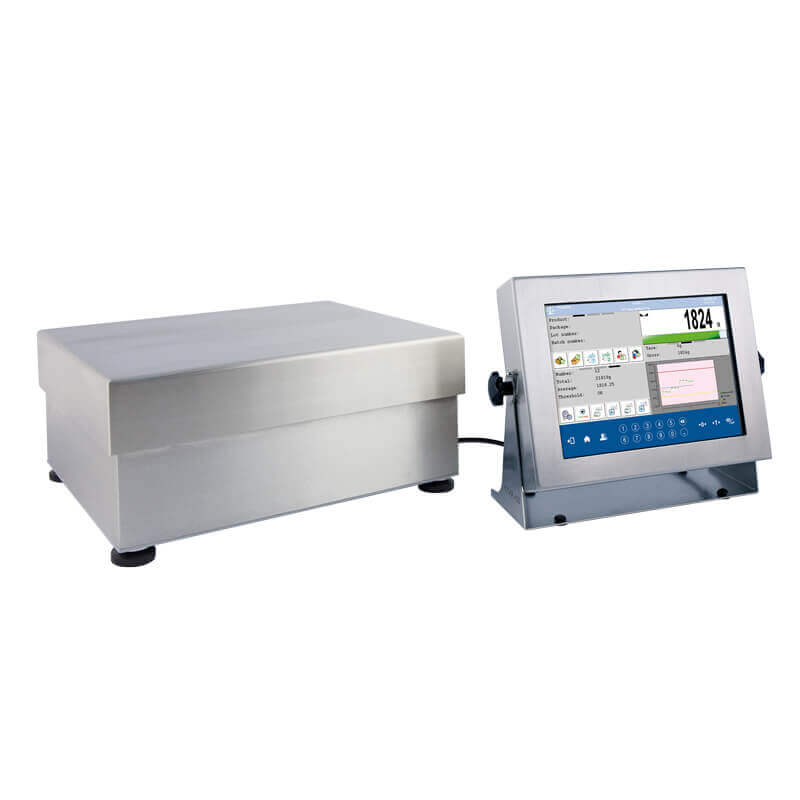

Maximum capacity [Max]	32kg
Minimum load	5g
Readability [d]	0,1g
Tare range	-32kg
Linearity	±0,3g
Stabilization time	2s
Sensitivity drift	2 ppm/°C in temperature +10° ÷ +40 °C
Operating temperature	+10° ÷ +40°C
Weighing pan dimensions	360×280mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	10,1" widescreen colour dispaly 1024×600
Communication interface
Packaging dimensions
Adjustment	internal
Net weight	24,7kg
Gross weight	28,7kg
Atmospheric humidity	40% ÷ 80%
Device dimensions
Ethernet	×1
Housing
Inputs/Outputs	4 IN / 4 OUT
Max qty of verific units
Net weight/gross weight
OIML Class
Preload range	4kg
Protection class	IP 66/67 construction, IP 68/69 indicator
Repeatability	0,1g
RS 232	×2
USB	×2
Verification scale interval

Maximum capacity [Max]	62kg
Minimum load	25g
Readability [d]	0,5g
Tare range	-62kg
Linearity	±1g
Stabilization time	3s
Sensitivity drift	2 ppm/°C in temperature +10° ÷ +40 °C
Operating temperature	+10° ÷ +40°C
Weighing pan dimensions	500×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	10,1" widescreen colour dispaly 1024×600
Communication interface
Packaging dimensions
Adjustment	internal
Net weight	37kg
Gross weight	52kg
Atmospheric humidity	40% ÷ 80%
Device dimensions
Ethernet	×1
Housing
Inputs/Outputs	4 IN / 4 OUT
Max qty of verific units
Net weight/gross weight
OIML Class
Preload range	30kg
Protection class	IP 66/67 construction, IP 68/69 indicator
Repeatability	0,3g
RS 232	×2
USB	×2
Verification scale interval

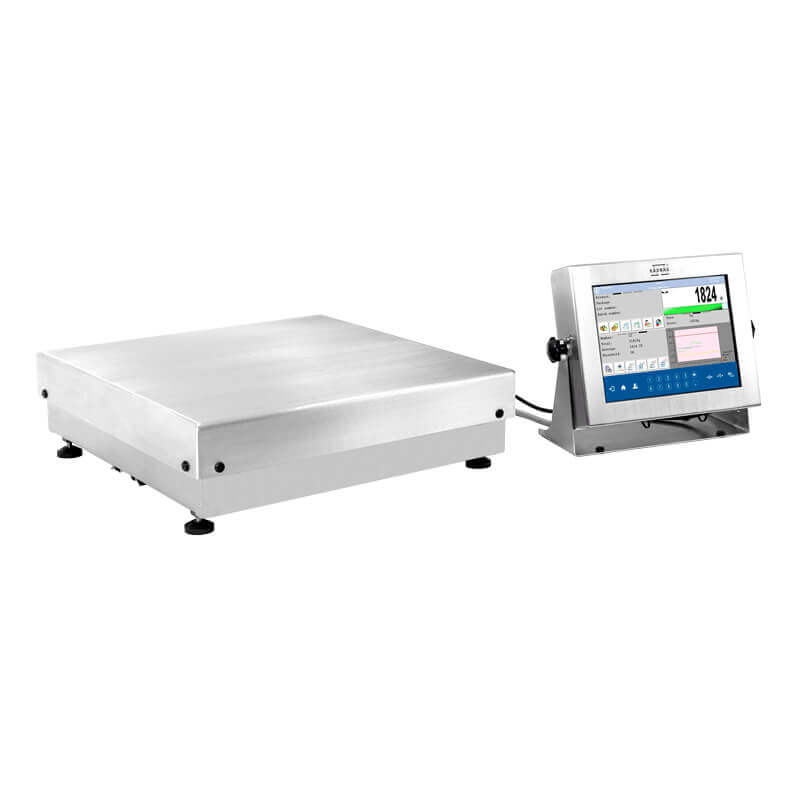

Maximum capacity [Max]	120kg
Minimum load	50g
Readability [d]	1g
Tare range	-120kg
Linearity	±2g
Stabilization time	3s
Sensitivity drift	2 ppm/°C in temperature +10° ÷ +40 °C
Operating temperature	+10° ÷ +40°C
Weighing pan dimensions	500×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	10,1" widescreen colour dispaly 1024×600
Communication interface
Packaging dimensions
Adjustment	internal
Net weight	37kg
Gross weight	52kg
Atmospheric humidity	40% ÷ 80%
Device dimensions
Ethernet	×1
Housing
Inputs/Outputs	4 IN / 4 OUT
Max qty of verific units
Net weight/gross weight
OIML Class
Preload range	10kg
Protection class	IP 66/67 construction, IP 68/69 indicator
Repeatability	0,6g
RS 232	×2
USB	×2
Verification scale interval

Maximum capacity [Max]	150kg
Minimum load	50g
Readability [d]	1g
Tare range	-150kg
Linearity	± 3g
Stabilization time	3s
Sensitivity drift	2 ppm/°C in temperature +10° ÷ +40 °C
Operating temperature	+10° ÷ +40°C
Weighing pan dimensions	800×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	10,1" widescreen colour dispaly 1024×600
Communication interface
Packaging dimensions
Adjustment	internal
Net weight	71,5kg
Gross weight	119kg
Atmospheric humidity	40% ÷ 80%
Device dimensions
Ethernet	×1
Housing
Inputs/Outputs	4 IN / 4 OUT
Max qty of verific units
Net weight/gross weight
OIML Class
Preload range	30kg
Protection class	IP 66/67 construction, IP 68/69 indicator
Repeatability	1,5g
RS 232	×2
USB	×2
Verification scale interval
