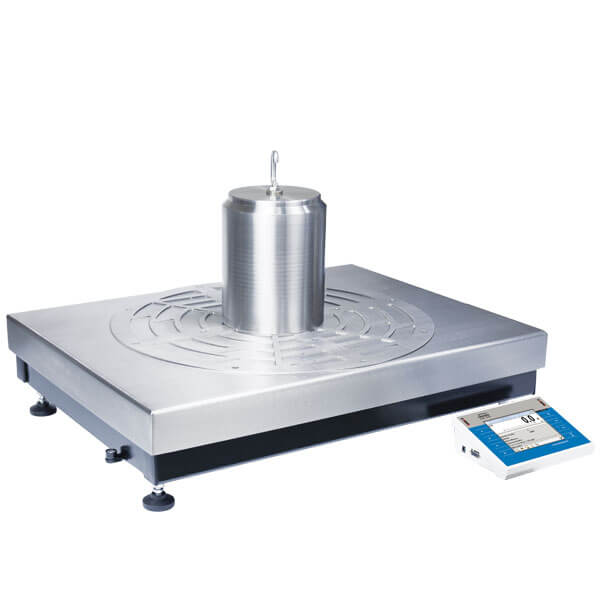

HRP 4Y.KO MASS COMPARATORS

Code: R913

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-414-0006	HRP 200.4Y.KO	no	210kg	0,2g	800×600mm
WL-414-0004	HRP 500.4Y.KO	no	510kg	0,5g	800×600mm
WL-414-0007	HRP 1000.4Y.KO	no	1050kg	1g	1000×800mm
WL-414-0008	HRP 2000.4Y.KO	no	2100kg	1g	1250×1000mm
WL-414-0015	HRP 2000.1.4Y.KO	no	2100kg	5g	1250×1000mm

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	210kg
Readability [d]	0,2g
Repeatability (5% Max)	0,5 g (50 kg)
Repeatability (Max)	0,6 g (200 kg)
Stabilization time	10s
Operating temperature	+15° ÷ +30°C,
Weighing pan dimensions	800×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Packaging dimensions
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	5%/4h
Anti-draft chamber dimens
Chamber packaging size
Comparator packsize with pan	1000×800×355
Comp packsize without pan	1000×800×310
Controling device dimensions	206×140×70mm
E1	-
E2	-
Eccentricity (tested load)	2 d / 1
Electric compensation range	0 ÷ 210 kg
F1	-
F2	100 kg ÷ 200 kg
M1	50 kg ÷ 200 kg
M2	50 kg ÷ 200 kg
Max permissible load speed	0,6 m/min
Net weight/gross weight	59 kg / 85 kg
Net/gross weight with pan	105 kg / 140 kg
Recommended load speed	0,3 m/min
Self-cent weigh pan dimens	600 x 600mm
Supplementary weights extern
Supplementary weights intern
Weighing device dimensions
Weigh unit dimens with pan	810×600×260mm
Weigh unit dmns without pan	810×600×165mm
Working tempr change rate	± 1 °C / 12 h

Maximum capacity [Max]	510kg
Readability [d]	0,5g
Repeatability (5% Max)	0,5 g (50 kg)
Repeatability (Max)	1,6 g (500 kg)
Stabilization time	10s
Operating temperature	+15° ÷ +30°C
Weighing pan dimensions	800×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Packaging dimensions
Adjustment	external
Net weight	73,5kg
Gross weight	96,5kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	5%/4h
Anti-draft chamber dimens
Chamber packaging size
Comparator packsize with pan	988×800×355mm
Comp packsize without pan	988×800×310mm
Controling device dimensions	206×140×70mm
E1	-
E2	-
Eccentricity (tested load)	2 d / 1
Electric compensation range	0 ÷ 510 kg
F1	-
F2	200 kg ÷ 500 kg
M1	100 kg ÷ 500 kg
M2	50 kg ÷ 500 kg
Max permissible load speed	0,6 m/min
Net weight/gross weight
Net/gross weight with pan	142,5 kg / 165,5 kg
Recommended load speed	0,3 m/min
Self-cent weigh pan dimens	600×600mm
Supplementary weights extern
Supplementary weights intern
Weighing device dimensions
Weigh unit dimens with pan	810×600×260mm
Weigh unit dmns without pan	810×600×165mm
Working tempr change rate	± 1 °C / 12 h

Maximum capacity [Max]	1050kg
Readability [d]	1g
Repeatability (5% Max)	1,5 g (100 kg)
Repeatability (Max)	2,5 g (1000 kg)
Stabilization time	10s
Operating temperature	+15° ÷ +30°C°C
Weighing pan dimensions	1000×800mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Packaging dimensions
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	5%/4h
Anti-draft chamber dimens
Chamber packaging size
Comparator packsize with pan	1200×1000×485mm
Comp packsize without pan	1200×1000×440mm
Controling device dimensions	206×140×70mm
E1	-
E2	-
Eccentricity (tested load)	1 d / 1
Electric compensation range	0 ÷ 1050 kg
F1	-
F2	500 kg ÷ 1000 kg
M1	200 kg ÷ 1000 kg
M2	100 kg ÷ 1000 kg
Max permissible load speed	0,6 m/min
Net weight/gross weight	134 kg / 157 kg
Net/gross weight with pan	199kg / 268 kg
Recommended load speed	0,3 m/min
Self-cent weigh pan dimens	600×600mm
Supplementary weights extern
Supplementary weights intern
Weighing device dimensions
Weigh unit dimens with pan	1010×800×275mm
Weigh unit dmns without pan	1010×800×182mm
Working tempr change rate	± 1 °C / 12 h

Maximum capacity [Max]	2100kg
Readability [d]	1g
Repeatability (5% Max)	2,5 g (200 kg)
Repeatability (Max)	5 g (2000 kg)
Stabilization time	10s
Operating temperature	+15° ÷ +30°C°C
Weighing pan dimensions	1250×1000mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Packaging dimensions
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	5%/4h
Anti-draft chamber dimens
Chamber packaging size
Comparator packsize with pan	1500×1200×735mm
Comp packsize without pan	1500×1250×635mm
Controling device dimensions	206×140×70mm
E1	-
E2	-
Eccentricity (tested load)	1 d / 1
Electric compensation range	0 ÷ 2100 kg
F1	-
F2	1000 kg ÷ 2000 kg
M1	500 kg ÷ 2000 kg
M2	200 kg ÷ 2000 kg
Max permissible load speed	0,6 m/min
Net weight/gross weight	300 kg / 425 kg
Net/gross weight with pan	530 kg / 665 kg
Recommended load speed	0,3 m/min
Self-cent weigh pan dimens	920×920mm
Supplementary weights extern
Supplementary weights intern
Weighing device dimensions
Weigh unit dimens with pan	1250×1000×430mm
Weigh unit dmns without pan	1250×1000×265mm
Working tempr change rate	± 1 °C / 12 h

Maximum capacity [Max]	2100kg
Readability [d]	5g
Repeatability (5% Max)	5 g (500 kg)
Repeatability (Max)	10 g (2000 kg)
Stabilization time	10s
Operating temperature	+15° ÷ +30°C°C
Weighing pan dimensions	1250×1000mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Packaging dimensions
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	10%/4h
Anti-draft chamber dimens
Chamber packaging size
Comparator packsize with pan	1500×1200×735mm
Comp packsize without pan	1500×1250×635mm
Controling device dimensions	206×140×70mm
E1	-
E2	-
Eccentricity (tested load)	0,5 d / 1
Electric compensation range	0 ÷ 2100 kg
F1	-
F2	-
M1	500 kg ÷ 2000 kg
M2	500 kg ÷ 2000 kg
Max permissible load speed	0,6 m/min
Net weight/gross weight	300 kg / 425 kg
Net/gross weight with pan	530 kg / 665 kg
Recommended load speed	0,3 m/min
Self-cent weigh pan dimens	920×920mm
Supplementary weights extern
Supplementary weights intern
Weighing device dimensions
Weigh unit dimens with pan	1250×1000×430mm
Weigh unit dmns without pan	1250×1000×265mm
Working tempr change rate	± 2 °C / 12 h
