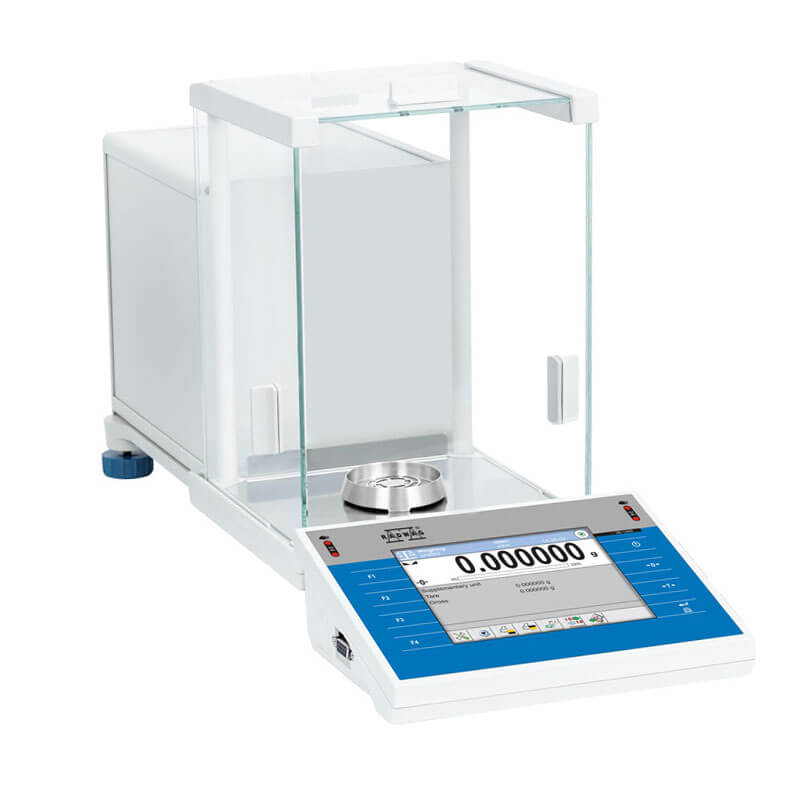

XA 4Y.M MICROBALANCES

Code: R295

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-101-0174	XA 52.4Y.M	yes	52g	5µg	ø 30mm
WL-101-1037	XA 21/52.4Y.M	yes	21/52g	1/5µg	ø 30mm
WL-101-0143	XA 21.4Y.M	yes	21g	1µg	ø 30mm
WL-101-0157	XA 6.4Y.M	yes	6,1g	1µg	ø 30mm
WL-101-1024	XA 6/21.4Y.M	yes	6/21g	1/2µg	ø 30mm

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	52g
Minimum load	0,5mg
Readability [d]	5µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±20µg
Net weight	9,8kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	3,5µg
Repeatability (Max)	6µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-52g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	7mg
Minimum weight (U=1%,k=2)	0,7mg
Eccentric load deviation	20µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	168×163×228mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	21/52g
Minimum load	0,1mg
Readability [d]	1/5µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±20µg
Net weight	9,8kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	2,5
Repeatability (Max)	6µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-52g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	5mg
Minimum weight (U=1%,k=2)	0,5mg
Eccentric load deviation	20µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	168×163×228mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	21g
Minimum load	0,1mg
Readability [d]	1µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±9µg
Net weight	9,8kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	1,8µg
Repeatability (Max)	4µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-21g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	3,6mg
Minimum weight (U=1%,k=2)	0,36mg
Eccentric load deviation	15µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	168×163×228mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	6,1g
Minimum load	0,1mg
Readability [d]	1µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±7µg
Net weight	9,8kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	1,3µg
Repeatability (Max)	2,5µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-6,1g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	2,6mg
Minimum weight (U=1%,k=2)	0,26mg
Eccentric load deviation	7µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	168×163×228mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	6/21g
Minimum load	0,1mg
Readability [d]	1/2µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±9µg
Net weight	9,8kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	1,8µg
Repeatability (Max)	4µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-21g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	3,6mg
Minimum weight (U=1%,k=2)	0,36mg
Eccentric load deviation	15µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	168×163×228mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate
