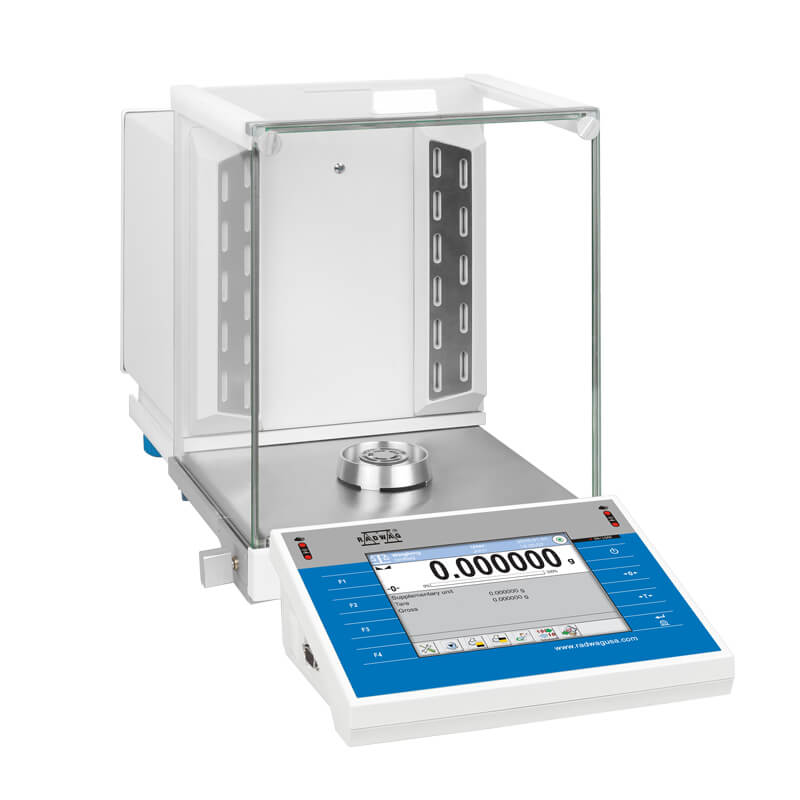

Name: XA 4Y.M.A MICROBALANCES
SKU: R301
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-101-0182	XA 52.4Y.M.A	yes	52g	5µg	ø 30mm
WL-101-1045	XA 21/52.4Y.M.A	yes	21/52g	1/5µg	ø 30mm
WL-101-0148	XA 21.4Y.M.A	yes	21 g	1 µg	ø30 mm
WL-101-0154	XA 6.4Y.M.A	yes	6.1 g	1 µg	ø30 mm
WL-101-1025	XA 6/21.4Y.M.A	yes	6 / 21 g	1 / 2 µg	ø30 mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	52g
Minimum load	0,5mg
Readability [d]	5µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	18,9kg
Linearity	±20µg
Net weight	14,5kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	3,5µg
Repeatability (Max)	6µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-52g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	7mg
Minimum weight (U=1%,k=2)	0,7mg
Eccentric load deviation	20µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	199×170×217mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	21/52g
Minimum load	0,1mg
Readability [d]	1/5µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	18,9kg
Linearity	±20µg
Net weight	14,5kg
Operating temperature	+10÷+40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	2,5µg
Repeatability (Max)	6µg
Sensitivity drift
Stabilization time	~ 3,5s
Tare range	-52g
Weighing pan dimensions	ø 30mm
Minimum weight (USP)	5mg
Minimum weight (U=1%,k=2)	0,5mg
Eccentric load deviation	20µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	199×170×217mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	21 g
Minimum load	0.1 mg
Readability [d]	1 µg
Power supply	100 ÷ 240 V AC 50 / 60 Hz
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
Database capacity
Display	5.7” resistive colour touchscreen
Gross weight	18.9 kg
Linearity	±9 µg
Net weight	14.5 kg
Operating temperature	+10 ÷ +40 °C
Packaging dimensions	720×385×485 mm
Repeatability (5% Max)	1.8 µg
Repeatability (Max)	4 µg
Sensitivity drift
Stabilization time	~ 3.5 s
Tare range	-21 g
Weighing pan dimensions	ø30 mm
Minimum weight (USP)	3.6 mg
Minimum weight (U=1%,k=2)	0.36 mg
Eccentric load deviation	15 µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	199×170×217 mm
Power consumption	700 mA (bezprzewodowy terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	6.1 g
Minimum load	0.1 mg
Readability [d]	1 µg
Power supply	100 ÷ 240 V AC 50 / 60 Hz
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
Database capacity
Display	5.7” resistive colour touchscreen
Gross weight	18.9 kg
Linearity	±7 µg
Net weight	14.5 kg
Operating temperature	+10 ÷ +40 °C
Packaging dimensions	720×385×485 mm
Repeatability (5% Max)	1.3 µg
Repeatability (Max)	2.5 µg
Sensitivity drift
Stabilization time	~ 3.5 s
Tare range	-6.1 g
Weighing pan dimensions	ø30 mm
Minimum weight (USP)	2.6 mg
Minimum weight (U=1%,k=2)	0.26 mg
Eccentric load deviation	7 µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	199×170×217 mm
Power consumption	700 mA (bezprzewodowy terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

Maximum capacity [Max]	6 / 21 g
Minimum load	0.1 mg
Readability [d]	1 / 2 µg
Power supply	100 ÷ 240 V AC 50 / 60 Hz
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi®
Database capacity
Display	5.7” resistive colour touchscreen
Gross weight	18.9 kg
Linearity	±9 µg
Net weight	14.5 kg
Operating temperature	+10 ÷ +40 °C
Packaging dimensions	720×385×485 mm
Repeatability (5% Max)	1.8 µg
Repeatability (Max)	4 µg
Sensitivity drift
Stabilization time	~ 3.5 s
Tare range	-21 g
Weighing pan dimensions	ø30 mm
Minimum weight (USP)	3.6 mg
Minimum weight (U=1%,k=2)	0.36 mg
Eccentric load deviation	15 µg
Sensitivity offset
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	199×170×217 mm
Power consumption	700 mA (bezprzewodowy terminal - 1A)
Atmosph humidity change rate
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate

XA 4Y.M.A MICROBALANCES
