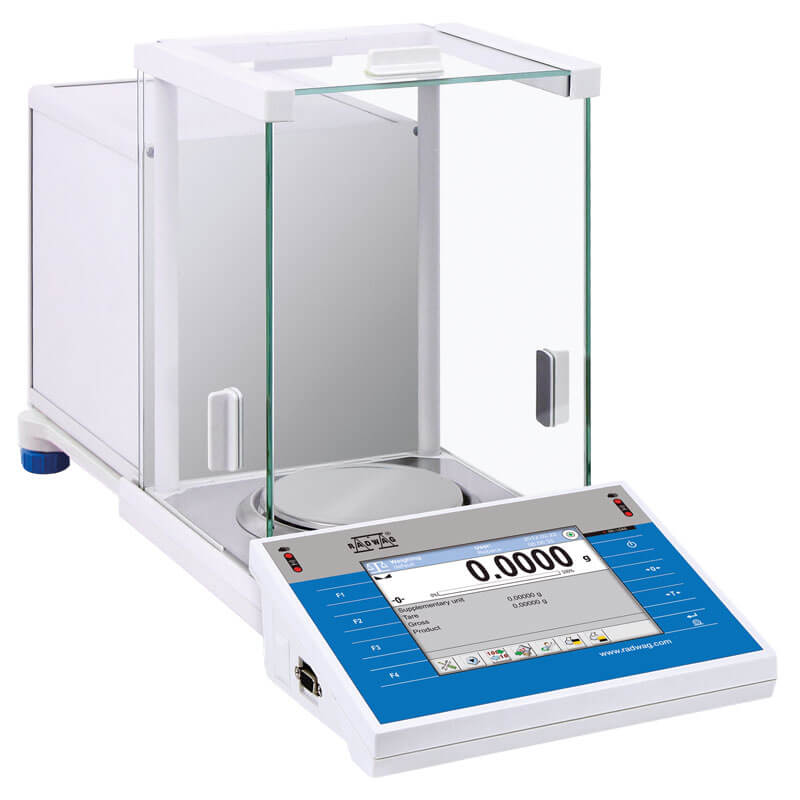

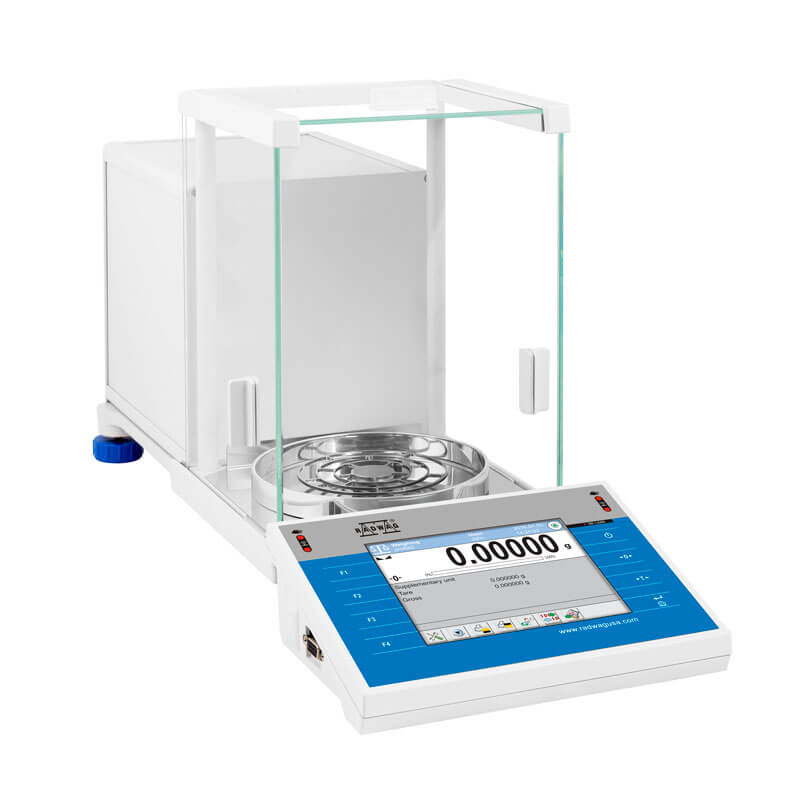

Name: XA 4Y ANALYTICAL BALANCES
SKU: R108
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-107-0069	XA 310.4Y	yes	310g	0,1mg	ø 100mm
WL-107-0068	XA 220.4Y	yes	220g	0,1mg	ø 100mm
WL-107-0065	XA 210.4Y	yes	210g	0,01mg	ø 90 + ø 85 (option)mm
WL-107-1019	XA 120/250.4Y	yes	120/250g	0,01/0,1mg	ø 90 + ø 85 (option)mm
WL-107-0052	XA 110.4Y	yes	110g	0,01mg	ø 90 + ø 85 (option)mm
WL-107-1016	XA 82/220.4Y	yes	82/220g	0,01/0,1mg	ø 90 + ø 85 (option)mm
WL-107-0064	XA 52.4Y	yes	52g	0,01mg	ø 90 + ø 85 (option)mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	310g
Minimum load	10mg
Readability [d]	0,1mg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±0,3mg
Net weight	9,8kg
Operating temperature	+10 - +40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	0,07mg
Repeatability (Max)	0,15mg
Sensitivity drift
Stabilization time	2,5s
Tare range	-310g
Weighing pan dimensions	ø 100mm
Minimum weight (USP)	140mg
Minimum weight (U=1%,k=2)	14mg
Eccentric load deviation	0,3mg
Sensitivity offset	2×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	170×200×220mm
Power consumption	700mA (wireless terminal - 1A)
Touch-free operation
Repeatability
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight

Maximum capacity [Max]	220g
Minimum load	10mg
Readability [d]	0,1mg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±0,2mg
Net weight	9,8kg
Operating temperature	+10 - +40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	0,06mg
Repeatability (Max)	0,1mg
Sensitivity drift
Stabilization time	2,5s
Tare range	-220g
Weighing pan dimensions	ø 100mm
Minimum weight (USP)	120mg
Minimum weight (U=1%,k=2)	12mg
Eccentric load deviation	0,2mg
Sensitivity offset	2×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	170×200×220mm
Power consumption	700mA (wireless terminal - 1A)
Touch-free operation
Repeatability
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight

Maximum capacity [Max]	210g
Minimum load	1mg
Readability [d]	0,01mg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±0,1mg
Net weight	9,8kg
Operating temperature	+10 - +40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	0,007mg
Repeatability (Max)	0,03mg
Sensitivity drift
Stabilization time	4s
Tare range	-210g
Weighing pan dimensions	ø 90 + ø 85 (option)mm
Minimum weight (USP)	14mg
Minimum weight (U=1%,k=2)	1,4mg
Eccentric load deviation	0,1mg
Sensitivity offset	2×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	170×200×220mm
Power consumption	700mA (wireless terminal - 1A)
Touch-free operation
Repeatability
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight

Maximum capacity [Max]	120/250g
Minimum load	1mg
Readability [d]	0,01/0,1mg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±0,06/0,2mg
Net weight	9,8kg
Operating temperature	+10 - +40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	0,007mg
Repeatability (Max)	0,06mg
Sensitivity drift
Stabilization time	4s
Tare range	-250g
Weighing pan dimensions	ø 90 + ø 85 (option)mm
Minimum weight (USP)	14mg
Minimum weight (U=1%,k=2)	1,4mg
Eccentric load deviation	0,2mg
Sensitivity offset	2×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	170×200×220mm
Power consumption	700mA (wireless terminal - 1A)
Touch-free operation
Repeatability
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight

Maximum capacity [Max]	110g
Minimum load	1mg
Readability [d]	0,01mg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	14,3kg
Linearity	±0,06mg
Net weight	9,8kg
Operating temperature	+10 - +40°C
Packaging dimensions	720×385×485mm
Repeatability (5% Max)	0,007mg
Repeatability (Max)	0,02mg
Sensitivity drift
Stabilization time	4s
Tare range	-110g
Weighing pan dimensions	ø 90 + ø 85 (option)mm
Minimum weight (USP)	14mg
Minimum weight (U=1%,k=2)	1,4mg
Eccentric load deviation	0,06mg
Sensitivity offset	2×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	170×200×220mm
Power consumption	700mA (wireless terminal - 1A)
Touch-free operation
Repeatability
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight

XA 4Y ANALYTICAL BALANCES
