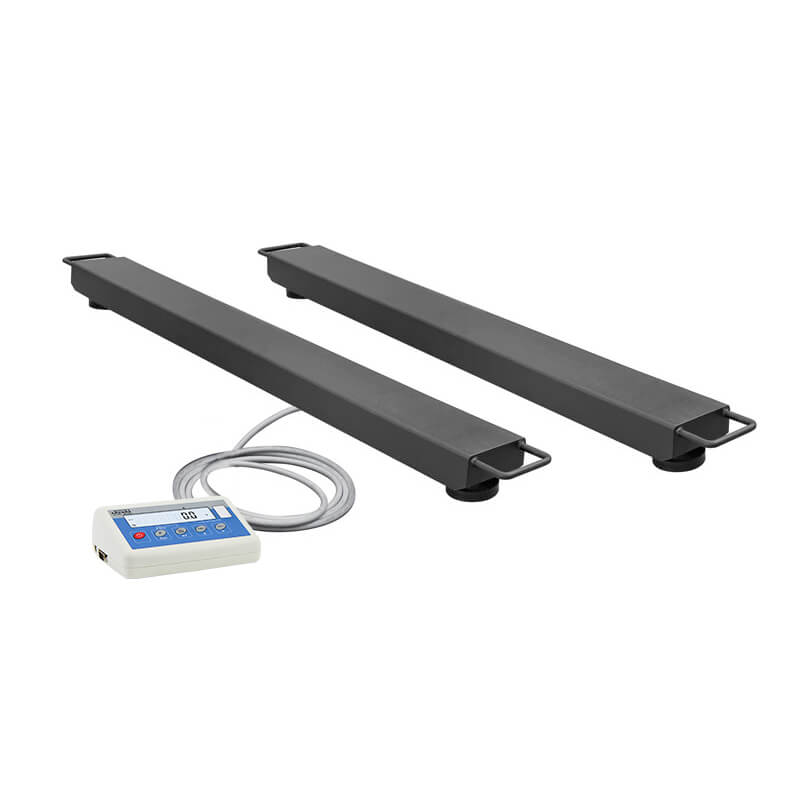

Name: WPT/4P2 BEAM SCALES
SKU: R674
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-209-0001	WPT/4P2 600 C	yes	600kg	200g	2× 1,2 m (maxiamal distance 5 m)
WP-209-0013	WPT/4P2 1500 C	yes	1500kg	500g	2× 1,2 m (maxiamal distance 5 m)
WP-209-0004	WPT/4P2 3000 C	yes	3000kg	1000g	2× 1,2 m (maxiamal distance 5 m)
WP-209-0022	WPT/4P2 2000 C1	yes	2000kg	1000g	2× 2 m (maxiamal distance 5 m)
WP-209-0005	WPT/4P2 4000 C1	yes	4000kg	2000g	2× 2 m (maxiamal distance 5 m)
WP-209-0006	WPT/4P2 6000 C1	yes	6000kg	2000g	2× 2 m (maxiamal distance 5 m)
WP-209-0023	WPT/4P2 2000 C2	yes	2000kg	1000g	2× 2,5 m (maxiamal distance 5 m)
WP-209-0007	WPT/4P2 4000 C2	yes	4000kg	2000g	2× 2,5 m (maxiamal distance 5 m)
WP-209-0008	WPT/4P2 6000 C2	yes	6000kg	2000g	2× 2,5 m (maxiamal distance 5 m)

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	2× 1,2 m (maxiamal distance 5 m)
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1200×120×85mm
Operation time on batteries	35 h (average time)
Protection class	IP 67 construction, IP 43 indicator
Scale mass with indicator	37kg

Maximum capacity [Max]	1500kg
Readability [d]	500g
Tare range	-1500kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	2× 1,2 m (maxiamal distance 5 m)
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1200×120×85mm
Operation time on batteries	35 h (average time)
Protection class	IP 67 construction, IP 43 indicator
Scale mass with indicator	37kg

Maximum capacity [Max]	3000kg
Readability [d]	1000g
Tare range	-3000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	2× 1,2 m (maxiamal distance 5 m)
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1200×120×85mm
Operation time on batteries	35 h (average time)
Protection class	IP 67 construction, IP 43 indicator
Scale mass with indicator	37kg

Maximum capacity [Max]	2000kg
Readability [d]	1000g
Tare range	-2000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	2× 2 m (maxiamal distance 5 m)
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2000×120×105mm
Operation time on batteries	35 h (average time)
Protection class	IP 67 construction, IP 43 indicator
Scale mass with indicator	53kg

Maximum capacity [Max]	4000kg
Readability [d]	2000g
Tare range	-4000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	2× 2 m (maxiamal distance 5 m)
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2000×120×155mm
Operation time on batteries	35 h (average time)
Protection class	IP 67 construction, IP 43 indicator
Scale mass with indicator	90kg

WPT/4P2 BEAM SCALES
