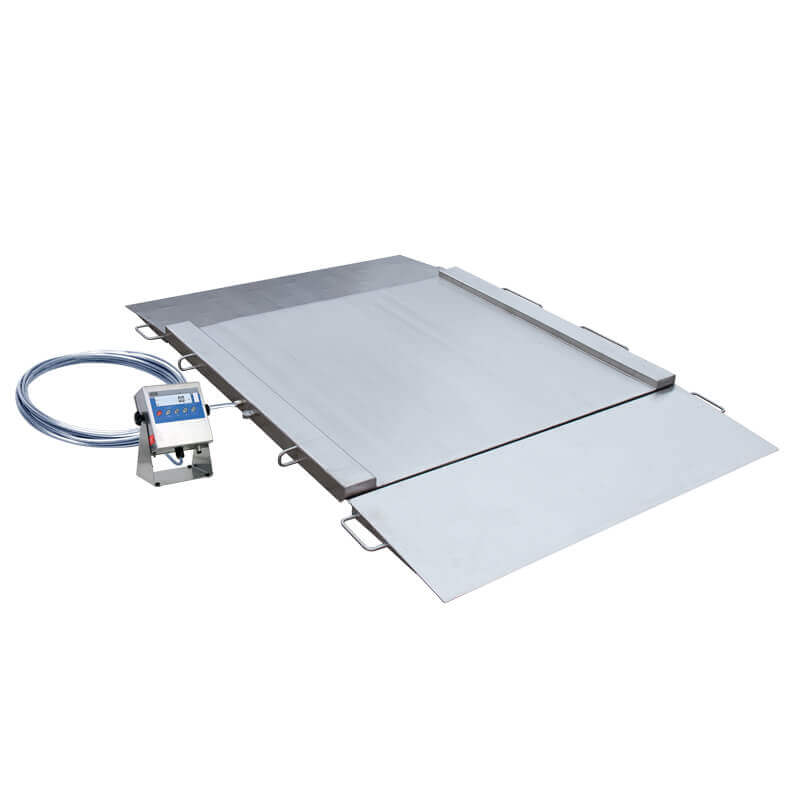

Name: WPT/4N/H STAINLESS STEEL RAMP SCALES
SKU: R416
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-206-0019	WPT/4N 150 H1	yes	150kg	50g	840×860mm
WP-206-0018	WPT/4N 300 H1	yes	300kg	100g	840×860mm
WP-206-0020	WPT/4N 600 H1	yes	600kg	200g	840×860mm
WP-206-0024	WPT/4N 300 H2	yes	300kg	100g	1100×1200mm
WP-206-0021	WPT/4N 600 H2	yes	600kg	200g	1100×1200mm
WP-206-0004	WPT/4N 1500 H2	yes	1500kg	500g	1100×1200mm
WP-206-0025	WPT/4N 300 H3	yes	300kg	100g	1200×1500mm
WP-206-0026	WPT/4N 600 H3	yes	600kg	200g	1200×1500mm
WP-206-0006	WPT/4N 1500 H3	yes	1500kg	500g	1200×1500mm
WP-206-0027	WPT/4N 300 H4	yes	300kg	100g	1500×1500mm
WP-206-0028	WPT/4N 600 H4	yes	600kg	200g	1500×1500mm
WP-206-0007	WPT/4N 1500 H4	yes	1500kg	500g	1500×1500mm
WP-206-1020	WPT/4N 300/600 H1	yes	300/600kg	100/200g	840×860mm
WP-206-1019	WPT/4N 300/600 H2	yes	300/600kg	100/200g	1100×1200mm
WP-206-1011	WPT/4N 600/1500 H2	yes	600/1500kg	200/500g	1100×1200mm
WP-206-1023	WPT/4N 300/600 H3	yes	300/600kg	100/200g	1200×1500mm
WP-206-1004	WPT/4N 600/1500 H3	yes	600/1500kg	200/500g	1200×1500mm
WP-206-1024	WPT/4N 300/600 H4	yes	300/600kg	100/200g	1500×1500mm
WP-206-1008	WPT/4N 600/1500 H4	yes	600/1500kg	200/500g	1500×1500mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	150kg
Readability [d]	50g
Tare range	-150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1710×1160×76mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1710×1160×76mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	840×860mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	1710×1160×76mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	105kg
Scale mass with indic, frame
Weighing platform height

Maximum capacity [Max]	300kg
Readability [d]	100g
Tare range	-300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2050×1420×76mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

Maximum capacity [Max]	600kg
Readability [d]	200g
Tare range	-600kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1100×1200mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Device dimensions	2050×1420×76mm
OIML Class
Operation time on batteries
Protection class	IP 68 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	150kg
Scale mass with indic, frame
Weighing platform height

WPT/4N/H STAINLESS STEEL RAMP SCALES
