PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 150 C6
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,05kg |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 55kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 116 +/-6mm |
|---|
PRODUCT DATASHEET

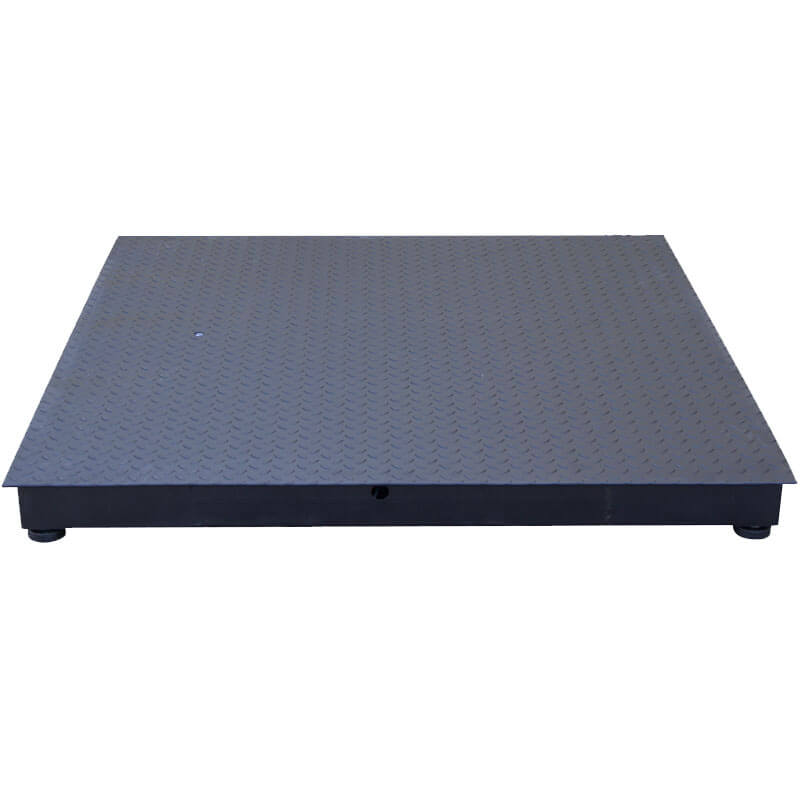

WPT/4C PLATFORM SCALES - WPT/4 300 C6
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,1kg |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 55kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 116 +/-6mm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 600 C6
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,2kg |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 55kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10mm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 1500 C6
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,5kg |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 55kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10mm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 150 C7
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,05kg |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 80kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 116 +/-6mm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 300 C7
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,1kg |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 80kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 116 +/-6mm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 600 C7
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,2kg |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 80kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 1500 C7
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,5kg |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 80kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 1500 C8
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,5kg |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 110kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET

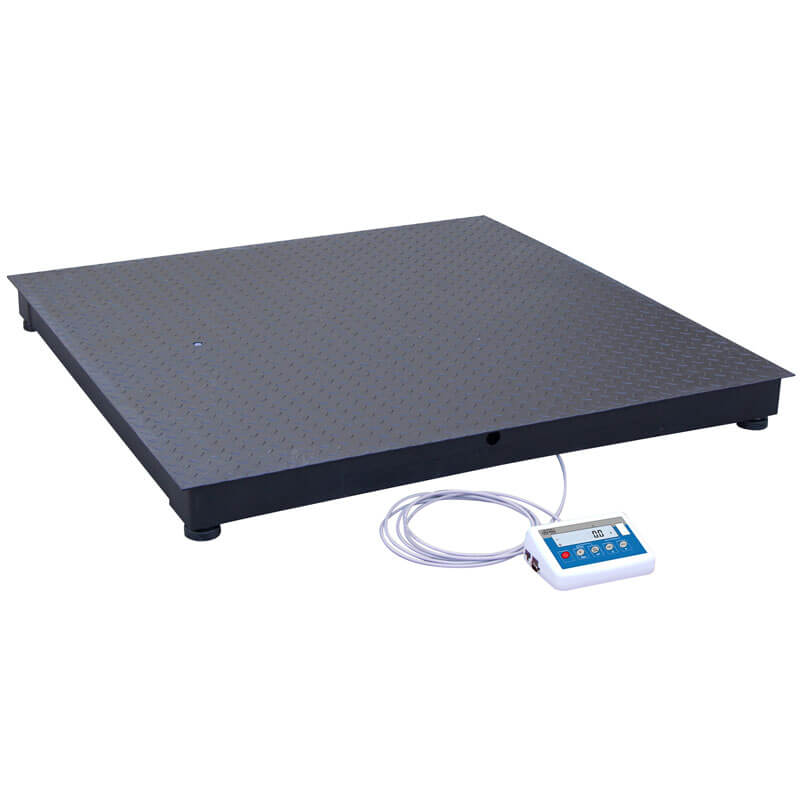

WPT/4C PLATFORM SCALES - WPT/4 3000 C8
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1kg |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 110kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 1500 C8/9
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,5kg |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 135kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 3000 C8/9
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1kg |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 135kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 1500 C9
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,5kg |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 160kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 3000 C9
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1kg |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
| Scale mass with indicator | 160kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 3000 C10
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1kg |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 68 (1h max)/69 indicator (PUE C/31H) |
|---|
| Scale mass with indicator | 230kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10 mmmm |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 6000 C10
| Maximum capacity [Max] | |
|---|
| Readability [d] | 2kg |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 68 (1h max)/69 indicator (PUE C/31H) |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | |
|---|
PRODUCT DATASHEET
WPT/4C PLATFORM SCALES - WPT/4 3000 C11
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1kg |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2000×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 68 (1h max)/69 indicator (PUE C/31H) |
|---|
| Scale mass with indicator | 290kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 120 +/-10mm |
|---|
PRODUCT DATASHEET

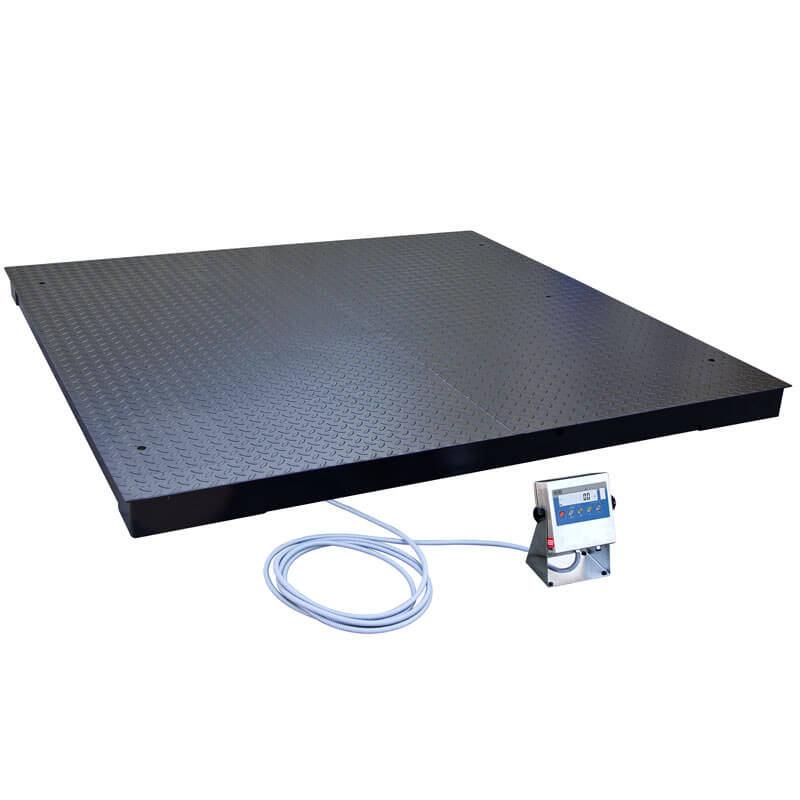

WPT/4C PLATFORM SCALES - WPT/4 6000 C11
| Maximum capacity [Max] | |
|---|
| Readability [d] | 2kg |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2000×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 65 construction, IP 68 (1h max)/69 indicator (PUE C/31H) |
|---|
| Scale mass with indicator | 350kg |
|---|
| Scale mass with indic, frame | |
|---|
| Weighing platform height | 160 +/-10mm |
|---|
