PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 300 H6/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 75kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 600 H6/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 75kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 300 H7/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 105kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 600 H7/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 105kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET

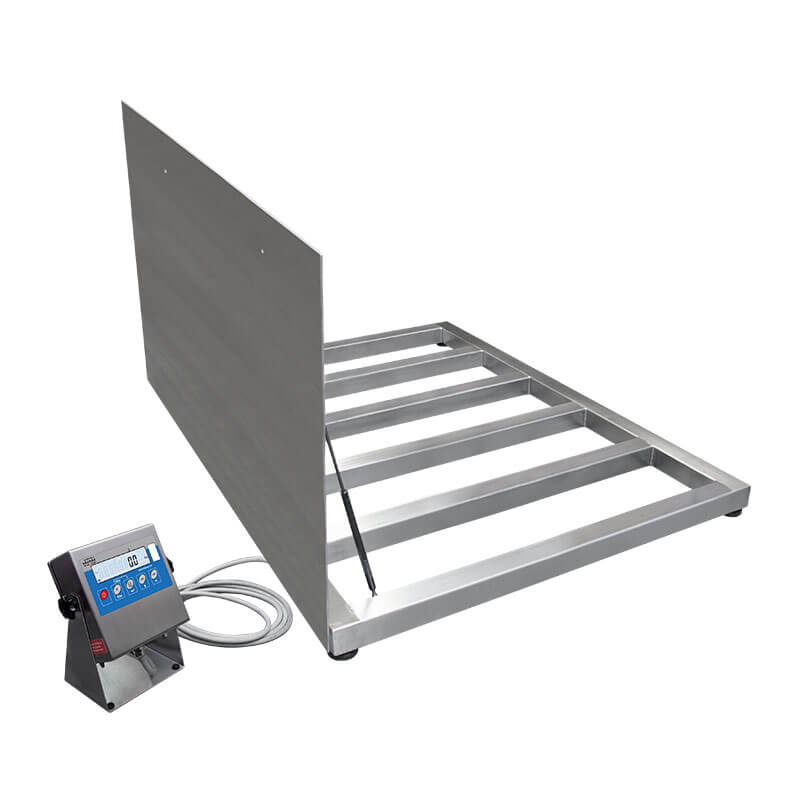

WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 1500 H7/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 115kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 1500 H8/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 145kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 3000 H8/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 155kg |
|---|
| Weighing platform height | 111mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 1500 H8/9/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 178kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 3000 H8/9/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 195kg |
|---|
| Weighing platform height | 111mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 1500 H9/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 210kg |
|---|
| Weighing platform height | 88mm |
|---|
PRODUCT DATASHEET

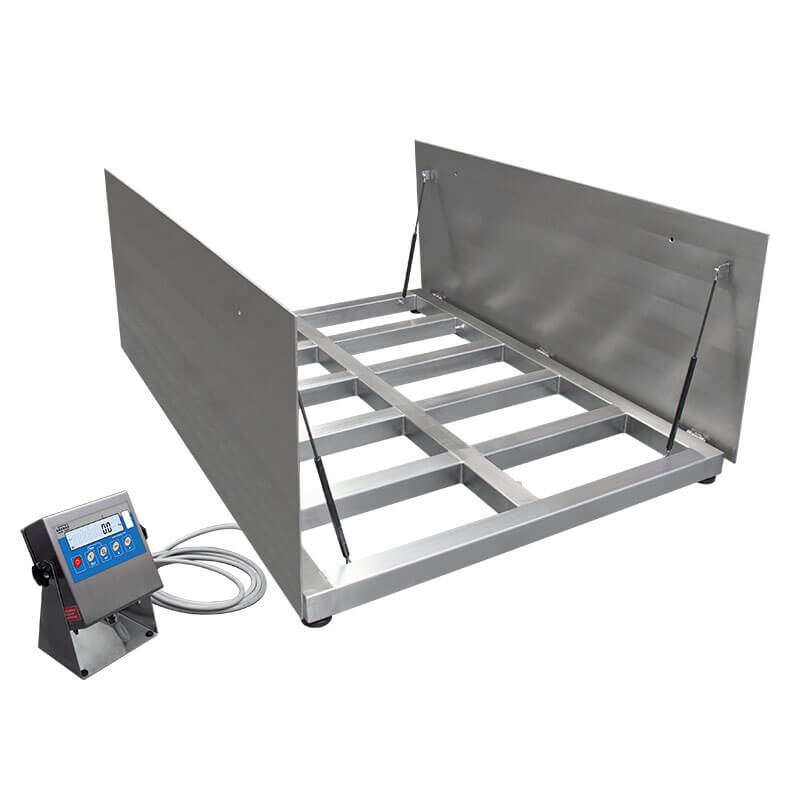

WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 3000 H9/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 230kg |
|---|
| Weighing platform height | 111mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 3000 H10/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 320kg |
|---|
| Weighing platform height | 111mm |
|---|
PRODUCT DATASHEET
WPT/4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - WPT/4 6000 H10/Z
| Maximum capacity [Max] | |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Device dimensions | |
|---|
| OIML Class | |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Scale mass with indicator | |
|---|
| Scale mass with indic, frame | 325kg |
|---|
| Weighing platform height | 166mm |
|---|
