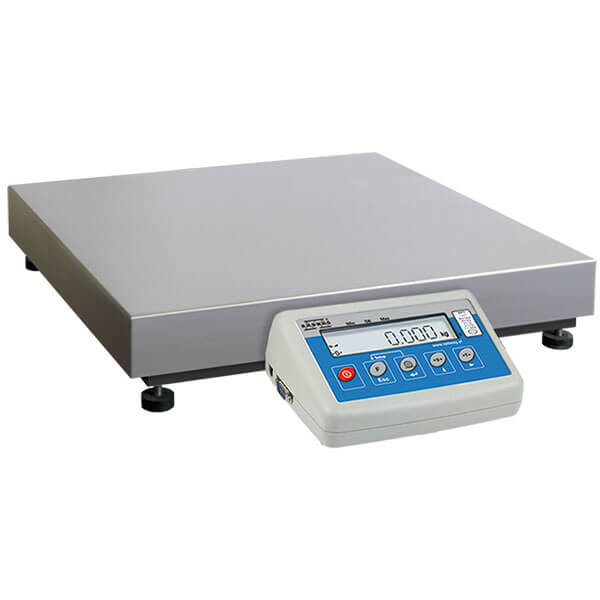

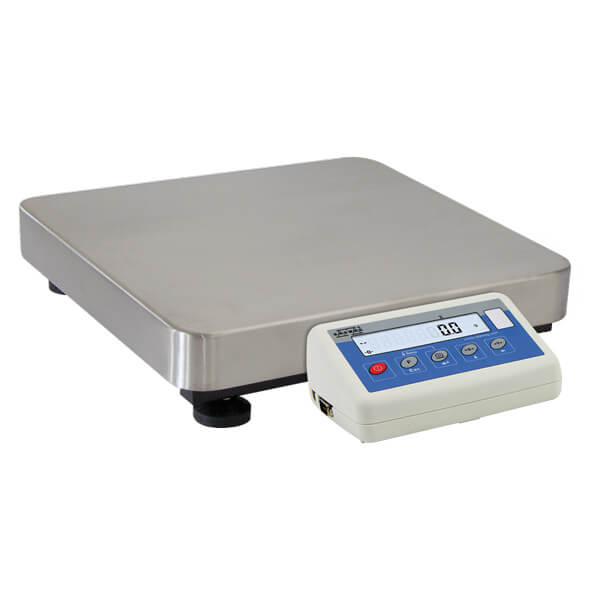

Name: WPT /R Load Cell Platform Scale
SKU: E002
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-101-0109	WPT 1.5/F1/R	yes	1,5kg	0,5g	300×300mm
WP-101-0096	WPT 6/F1/R	yes	6kg	2g	300×300mm
WP-101-0099	WPT 15/F1/R	yes	15kg	5g	300×300mm
WP-101-0106	WPT 3/F1/R	yes	3kg	1g	300×300mm
WP-101-0102	WPT 30/F1/R	yes	30kg	10g	300×300mm
WP-101-0187	WPT 15/C2/R	yes	15kg	5g	400×500mm
WP-101-0046	WPT 30/C2/R	yes	30kg	10g	400×500mm
WP-101-0040	WPT 60/C2/R	yes	60kg	20g	400×500mm
WP-101-0061	WPT 150/C2/R	yes	150kg	50g	400×500mm
WP-101-0049	WPT 300/C2/R	yes	300kg	100g	400×500mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	1,5kg
Minimum load	10g
Readability [d]	0,5g
Tare range	-1,5kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	570×390×170mm
Atmospheric humidity	10÷85% RH no condensation
Net weight/gross weight	5,3 / 6,1kg
Operation time on batteries	35 h (average time)
Protection class	IP 65 construction, IP 43 indicator

Maximum capacity [Max]	3kg
Minimum load	20g
Readability [d]	1g
Tare range	-3kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	570×390×170mm
Atmospheric humidity	10÷85% RH no condensation
Net weight/gross weight	5,3 / 6,1kg
Operation time on batteries	35 h (average time)
Protection class	IP 65 construction, IP 43 indicator

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	570×390×170mm
Atmospheric humidity	10÷85% RH no condensation
Net weight/gross weight	5,2 / 6kg
Operation time on batteries	35 h (average time)
Protection class	IP 65 construction, IP 43 indicator

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	570×390×170mm
Atmospheric humidity	10÷85% RH no condensation
Net weight/gross weight	5,2 / 6kg
Operation time on batteries	35 h (average time)
Protection class	IP 65 construction, IP 43 indicator

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	570×390×170mm
Atmospheric humidity	10÷85% RH no condensation
Net weight/gross weight	5,2 / 6kg
Operation time on batteries	35 h (average time)
Protection class	IP 65 construction, IP 43 indicator

WPT /R Load Cell Platform Scale
