PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 1.5/F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 10g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -1,5kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 500×390×410mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 5,3 / 6,6kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET

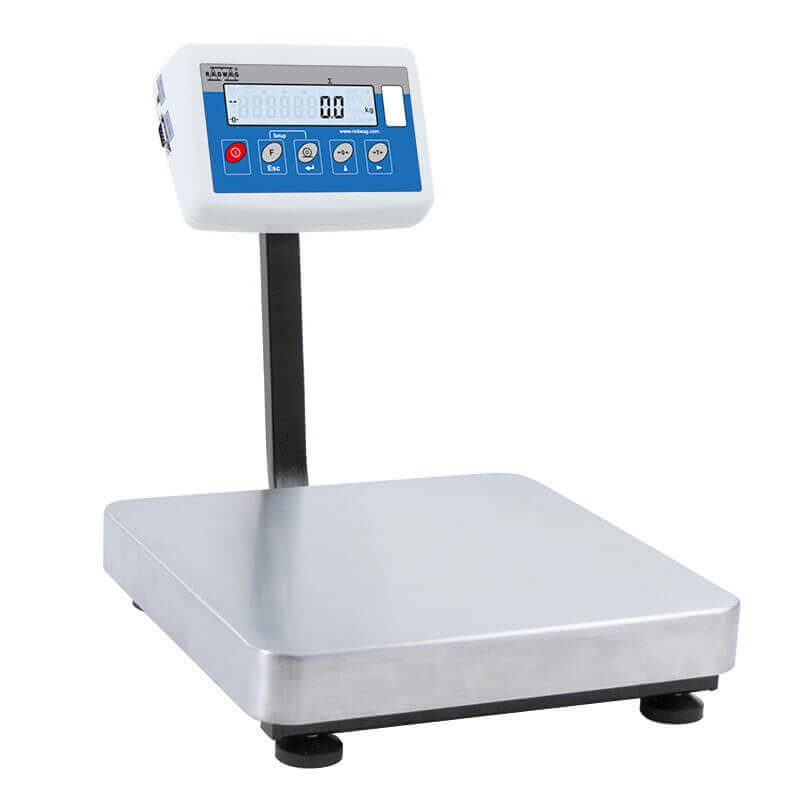

WPT Load Cell Platform Scale - WPT 3/F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 500×390×410mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 5,3 / 6,6kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 6/F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 500×390×410mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 5,3 / 6,6kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 15/F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 500×390×410mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 5,3 / 6,6kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 30/F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 500×390×410mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 5,3 / 6,6kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 15/C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 12,8 / 14,8kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 30/C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 12,8 / 14,8kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 60/C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 12,8 / 14,8kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 150/C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 12,8 / 14,8kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 300/C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 12,8 / 14,8kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 15/C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 23,4 / 27,2kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 30/C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 23,4 / 27,2kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET

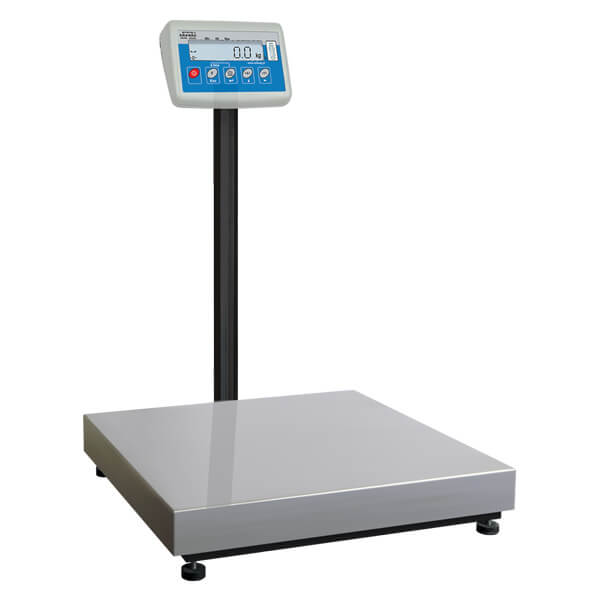

WPT Load Cell Platform Scale - WPT 60/C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 23,4 / 27,2kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 150/C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 23,4 / 27,2kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
PRODUCT DATASHEET
WPT Load Cell Platform Scale - WPT 300/C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Net weight/gross weight | 23,4 / 27,2kg |
|---|
| Operation time on batteries | 35 h (average time) |
|---|
| Protection class | IP 65 construction, IP 43 indicator |
|---|
