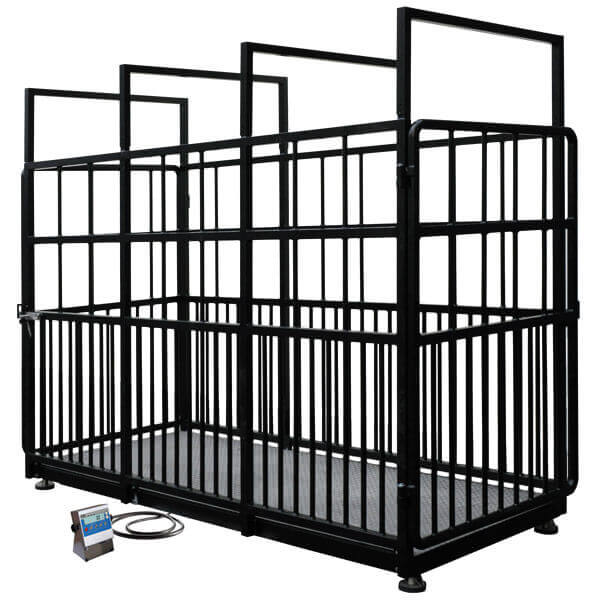

Name: WPT 4I/S LIVESTOCK SCALES
SKU: R684
Availability: OutOfStock

WPT 4I/S LIVESTOCK SCALES

Code: R684

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-212-0001	WPT/4I 2000 S1	yes	2000kg	1kg	1×2m
WP-212-0002	WPT/4I 2000 S2	yes	2000kg	1kg	1×2m
WP-212-0003	WPT/4I 2000 S3	yes	2000kg	1kg	1×2,5m

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	2000kg
Readability [d]	1kg
Tare range	-2000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1×2m
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Barriers height	1,1m
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator	290kg

Maximum capacity [Max]	2000kg
Readability [d]	1kg
Tare range	-2000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1×2m
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Barriers height	1,8m
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator

Maximum capacity [Max]	2000kg
Readability [d]	1kg
Tare range	-2000kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	1×2,5m
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Atmospheric humidity	10÷85% RH no condensation
Barriers height	1,8m
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Scale mass with indicator
