PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

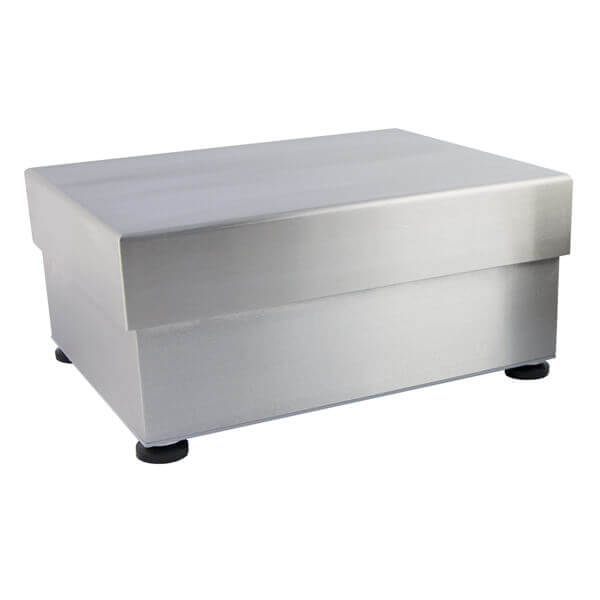

STAINLESS STEEL HRP.H PLATFORMS - High Resolution Platforms PL.16.HRP.H
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 0,1g |
|---|
| Tare range | -16kg |
|---|
| Linearity | ±0,1g |
|---|
| Stabilization time | 2s |
|---|
| Sensitivity drift | 2 ppm/°C in temperature +10 - +40°C |
|---|
| Operating temperature | +10 - +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 12 ÷ 24 V DC |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 18,7kg |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Housing | aluminum |
|---|
| Preload range | 4kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 0,1g |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - High Resolution Platforms PL.32.HRP.H
| Maximum capacity [Max] | |
|---|
| Minimum load | 5g |
|---|
| Readability [d] | 0,1g |
|---|
| Tare range | -32kg |
|---|
| Linearity | ±0,3g |
|---|
| Stabilization time | 2s |
|---|
| Sensitivity drift | 2 ppm/°C in temperature +10 - +40°C |
|---|
| Operating temperature | +10 - +40°C |
|---|
| Weighing pan dimensions | 360×280mm |
|---|
| Power supply | 12 ÷ 24 V DC |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 18,7kg |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | 360×313×170mm |
|---|
| Housing | aluminum |
|---|
| Preload range | 4kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 0,1g |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - High Resolution Platforms PL.600.HRP.H
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -600kg |
|---|
| Linearity | ±15g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 126kg |
|---|
| Gross weight | 160kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 60kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 7,5g |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - High Resolution Platforms PL.1100.HRP.H
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -1100kg |
|---|
| Linearity | ± 30g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 126kg |
|---|
| Gross weight | 160kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 100kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 15g |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - High Resolution Platforms PL.2000.HRP.H
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -2000kg |
|---|
| Linearity | ±60g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 1250×1000mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 290kg |
|---|
| Gross weight | 415kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 200kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 30g |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - HIGH RESOLUTION PLATFORMS PL.62.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 0.5 g |
|---|
| Tare range | -62 kg |
|---|
| Linearity | ±1 g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 500×500 mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal (automatic) |
|---|
| Net weight | 37 kg |
|---|
| Gross weight | 47 kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 30 kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 0.3 g |
|---|
| Weighing pan material | stainless steel AISI304 |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - HIGH RESOLUTION PLATFORMS PL.120.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -120kg |
|---|
| Linearity | ±1g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 37kg |
|---|
| Gross weight | 47kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | mild steel |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 10kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 0,6g |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - HIGH RESOLUTION PLATFORMS PL.150.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 1 g |
|---|
| Tare range | -150 kg |
|---|
| Linearity | ±3 g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 800×600 mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal (automatic) |
|---|
| Net weight | 71.5 kg |
|---|
| Gross weight | 119 kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 30 kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 1.5 g |
|---|
| Weighing pan material | stainless steel AISI304 |
|---|
PRODUCT DATASHEET
STAINLESS STEEL HRP.H PLATFORMS - HIGH RESOLUTION PLATFORMS PL.300.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 2 g |
|---|
| Tare range | -300 kg |
|---|
| Linearity | ±6 g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 800×600 mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal (automatic) |
|---|
| Net weight | 71.5 kg |
|---|
| Gross weight | 119 kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 60 kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 3 g |
|---|
| Weighing pan material | stainless steel AISI304 |
|---|
PRODUCT DATASHEET

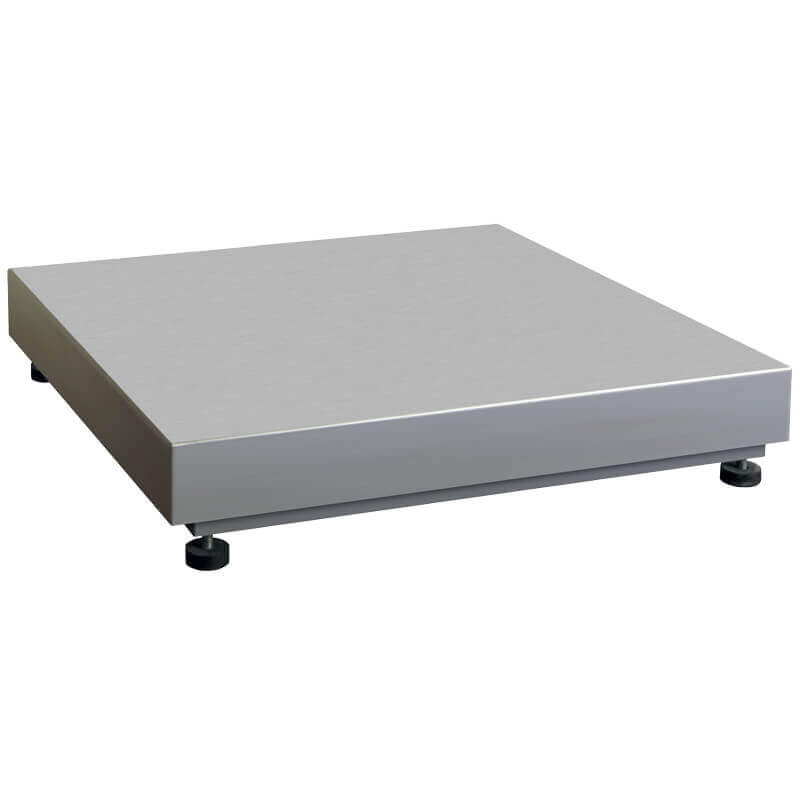

STAINLESS STEEL HRP.H PLATFORMS - HIGH RESOLUTION PLATFORMS PL.300.1.HRP
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -300kg |
|---|
| Linearity | ± 6g |
|---|
| Stabilization time | |
|---|
| Sensitivity drift | |
|---|
| Operating temperature | |
|---|
| Weighing pan dimensions | 1000×800mm |
|---|
| Power supply | |
|---|
| Communication interface | RS232, RS485, Ethernet |
|---|
| Adjustment | internal |
|---|
| Net weight | 126kg |
|---|
| Gross weight | 160kg |
|---|
| Atmospheric humidity | 15% ÷ 80% |
|---|
| Construction | |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Preload range | 60kg |
|---|
| Protection class | IP 67 |
|---|
| Repeatability | 3g |
|---|
| Weighing pan material | stainless steel |
|---|
