PUE HX5.EX-1 INDICATOR - PUE HX5.EX-1
| Operating temperature | -10 ÷ 40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS 232, RS 485 |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Conformity with ATEX | II 2G Ex ib IIC T4 Gb (gases)II 2D Ex ib IIIC T60ºC Db (dusts) |
|---|
| Connection of load cells | 4 or 6 wires + shield |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of verific units | 6000 e |
|---|
| Minimum load cell impedance | 80 Ω |
|---|
| Min voltage/verification unit | 0,4 µV |
|---|
| OIML Class | III |
|---|
| Protection class | IP 66 / IP 68 |
|---|
| Storage temperature | |
|---|
| Working in zones | 1,2 (gases), 21, 22 (dusts) |
|---|
PRODUCT DATASHEET

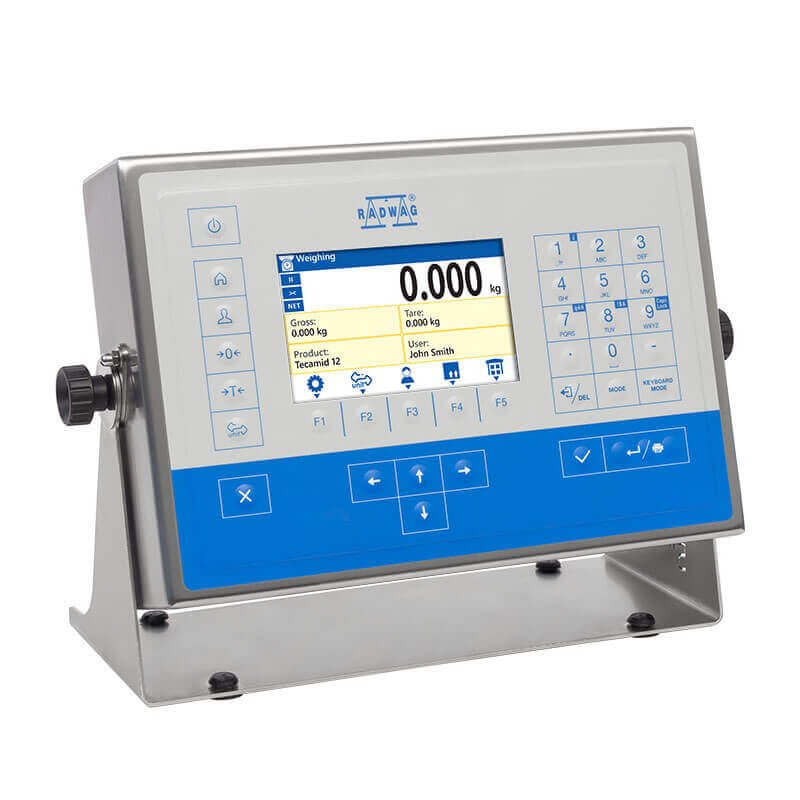

PUE HX5.EX-1 INDICATOR - PUE HX5.EX-2
| Operating temperature | -10 ÷ 40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS 232, RS 485, 4 IN, 4 OUT |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Conformity with ATEX | II 2G Ex ib IIC T4 Gb (gases)
II 2D Ex ib IIIC T60ºC Db (dusts) |
|---|
| Connection of load cells | 4 or 6 wires + shield |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of verific units | 6000 e |
|---|
| Minimum load cell impedance | 80 Ω |
|---|
| Min voltage/verification unit | 0,4 µV |
|---|
| OIML Class | III |
|---|
| Protection class | IP 66 / IP 68 |
|---|
| Storage temperature | |
|---|
| Working in zones | 1,2 (gases), 21, 22 (dusts) |
|---|
PRODUCT DATASHEET
PUE HX5.EX-1 INDICATOR - PUE HX5.EX-3
| Operating temperature | -10 ÷ 40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS 232, RS 485, 4 IN |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Conformity with ATEX | II 2G Ex ib IIC T4 Gb (gases)
II 2D Ex ib IIIC T60ºC Db (dusts) |
|---|
| Connection of load cells | 4 or 6 wires + shield |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of verific units | 6000 e |
|---|
| Minimum load cell impedance | 80 Ω |
|---|
| Min voltage/verification unit | 0,4 µV |
|---|
| OIML Class | III |
|---|
| Protection class | IP 66 / IP 68 |
|---|
| Storage temperature | |
|---|
| Working in zones | 1,2 (gases), 21, 22 (dusts) |
|---|
PRODUCT DATASHEET
PUE HX5.EX-1 INDICATOR - PUE HX5.EX-4
| Operating temperature | -10 ÷ 40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS 232, RS 485, 4 OUT |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Conformity with ATEX | II 2G Ex ib IIC T4 Gb (gases)
II 2D Ex ib IIIC T60ºC Db (dusts) |
|---|
| Connection of load cells | 4 or 6 wires + shield |
|---|
| Device dimensions | |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of verific units | 6000 e |
|---|
| Minimum load cell impedance | 80 Ω |
|---|
| Min voltage/verification unit | 0,4 µV |
|---|
| OIML Class | III |
|---|
| Protection class | IP 66 / IP 68 |
|---|
| Storage temperature | |
|---|
| Working in zones | 1,2 (gases), 21, 22 (dusts) |
|---|
