PRODUCT DATASHEET

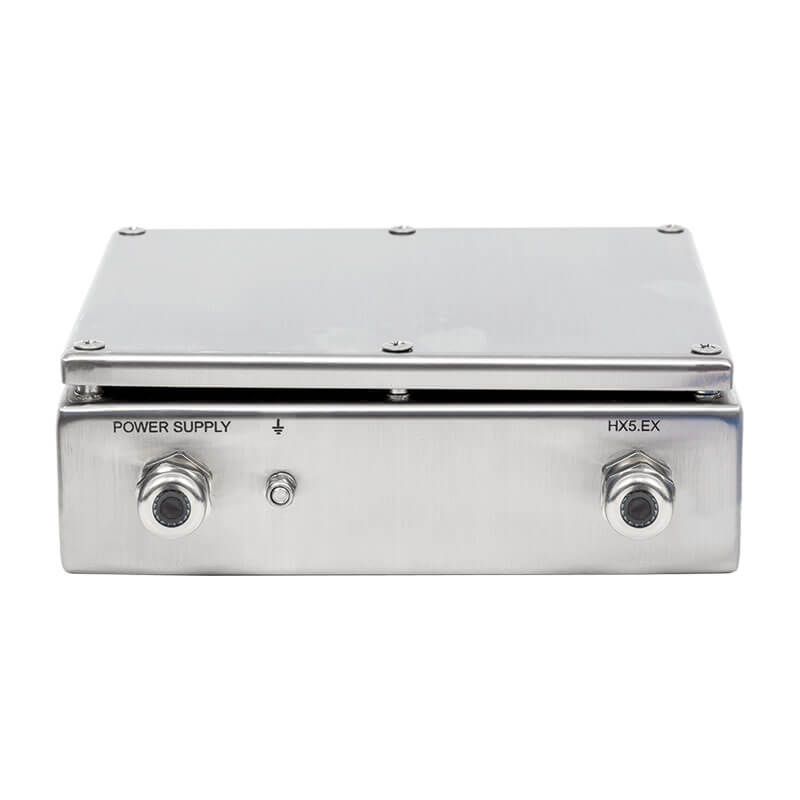

PM01.EX-1 INTRINSICALLY SAFE POWER SUPPLY INTENDED FOR EX SCALE - PM01EX-1
| Operating temperature | -20 ÷ +40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | |
|---|
| Communication interface | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex eb mb [ib] IIC T4 Gb
II 2D Ex tb [ib] IIIC T60°C Db |
|---|
| Connection of load cells | |
|---|
| Device dimensions | 196×174×64mm |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | |
|---|
| Maximum load cell impedance | |
|---|
| Max qty of verific units | |
|---|
| Minimum load cell impedance | |
|---|
| Min voltage/verification unit | |
|---|
| OIML Class | |
|---|
| Protection class | IP 66 / IP 68 (1,5m) |
|---|
| Storage temperature | -20 ÷ +60°C |
|---|
| Working in zones | (gases) 1, 2 (dusts) 21, 22 |
|---|
PRODUCT DATASHEET
PM01.EX-1 INTRINSICALLY SAFE POWER SUPPLY INTENDED FOR EX SCALE - PM01EX-2
| Operating temperature | -20 ÷ +40°C |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | |
|---|
| Communication interface | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II (2)G [Ex ib Gb] IIC
II (2)D [Ex ib Db] IIIC |
|---|
| Connection of load cells | |
|---|
| Device dimensions | 196×174×64mm |
|---|
| Housing | stainless steel |
|---|
| Maximum increase of signal | |
|---|
| Maximum load cell impedance | |
|---|
| Max qty of verific units | |
|---|
| Minimum load cell impedance | |
|---|
| Min voltage/verification unit | |
|---|
| OIML Class | |
|---|
| Protection class | IP 66 / IP 68 (1,5m) |
|---|
| Storage temperature | -20 ÷ +60°C |
|---|
| Working in zones | - |
|---|
