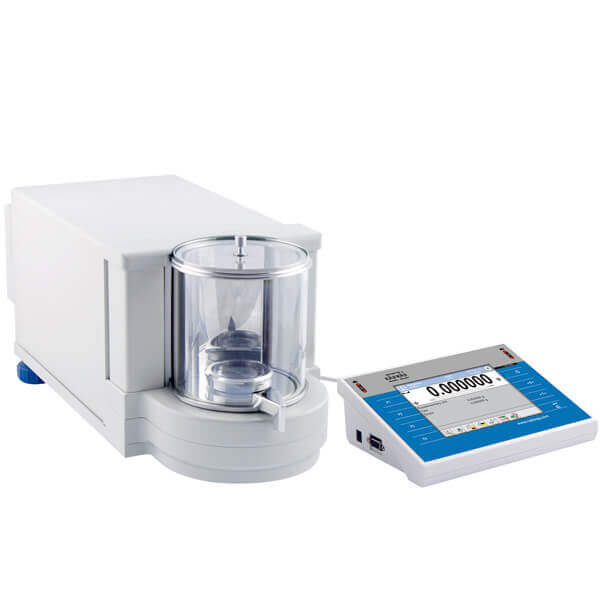

MYA 4Y MICROBALANCES

Code: R271

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WL-101-0126	MYA 31.4Y	yes	31g	1µg	ø 26mm
WL-101-1012	MYA 21/52.4Y	yes	21/52g	1/10µg	ø 26 / ø 40mm
WL-101-0073	MYA 21.4Y	yes	21g	1µg	ø 26mm
WL-101-1009	MYA 11/52.4Y	yes	11/52g	1/10µg	ø 26 / ø 40mm
WL-101-0076	MYA 11.4Y	yes	11g	1µg	ø 26mm
WL-101-0116	MYA 6.4Y	yes	6g	1µg	ø 26mm
WL-101-0072	MYA 5.4Y	yes	5,1g	1µg	ø 26mm
WL-101-0071	MYA 2.4Y	yes	2,1g	1µg	ø 16mm
WL-101-1006	MYA 0.8/3.4Y	yes	0,8/3g	1/10µg	ø 16 + ø 60 (for filters)mm

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	31g
Minimum load
Readability [d]	1µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Connection, 4Inputs/4Outputs
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	16,6kg
Linearity	± 8µg
Net weight	9,1kg
Operating temperature	+10÷+40°C
Packaging dimensions	660×660×455mm
Repeatability (5% Max)	2µg
Repeatability (Max)	5µg
Sensitivity drift
Stabilization time	max 10s
Tare range	-31g
Weighing pan dimensions	ø 26mm
Minimum weight (USP)	4mg
Minimum weight (U=1%,k=2)	0,4mg
Eccentric load deviation	8µg
Sensitivity offset	4×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	ø 90×90mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate	±1%/h (±4%/8h)
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate	±0,3 °C/h (±1 °C/8h)

Maximum capacity [Max]	21/52g
Minimum load
Readability [d]	1/10µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	16,6kg
Linearity	± 10/30µg
Net weight	9,1kg
Operating temperature	+10÷+40°C
Packaging dimensions	660×660×455mm
Repeatability (5% Max)	2µg
Repeatability (Max)	10µg
Sensitivity drift
Stabilization time	max 10s
Tare range	-52g
Weighing pan dimensions	ø 26 / ø 40mm
Minimum weight (USP)	4mg
Minimum weight (U=1%,k=2)	0,4mg
Eccentric load deviation	6/10µg
Sensitivity offset	4×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	ø 90×90mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate	±1%/h (±4%/8h)
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate	±0,3 °C/h (±1 °C/8h)

Maximum capacity [Max]	21g
Minimum load
Readability [d]	1µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Connection, 4Inputs/4Outputs
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	16,6kg
Linearity	± 7µg
Net weight	9,1kg
Operating temperature	+10÷+40°C
Packaging dimensions	660×660×455mm
Repeatability (5% Max)	1,2µg
Repeatability (Max)	3µg
Sensitivity drift
Stabilization time	max 10s
Tare range	-21g
Weighing pan dimensions	ø 26mm
Minimum weight (USP)	2,4mg
Minimum weight (U=1%,k=2)	0,24mg
Eccentric load deviation	7µg
Sensitivity offset	4×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	ø 90×90mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate	±1%/h (±4%/8h)
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate	±0,3 °C/h (±1 °C/8h)

Maximum capacity [Max]	11/52g
Minimum load
Readability [d]	1/10µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	16,6kg
Linearity	± 10/30µg
Net weight	9,1kg
Operating temperature	+10÷+40°C
Packaging dimensions	660×660×455mm
Repeatability (5% Max)	2µg
Repeatability (Max)	10µg
Sensitivity drift
Stabilization time	max 10s
Tare range	-52g
Weighing pan dimensions	ø 26 / ø 40mm
Minimum weight (USP)	4mg
Minimum weight (U=1%,k=2)	0,4mg
Eccentric load deviation	6/10µg
Sensitivity offset	3×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	ø 90×90mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate	±1%/h (±4%/8h)
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate	±0,3 °C/h (±1 °C/8h)

Maximum capacity [Max]	11g
Minimum load
Readability [d]	1µg
Power supply	13,5 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity	40% ÷ 80%
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Connection, 4Inputs/4Outputs
Database capacity
Display	5,7'' (panel touchscreen)
Gross weight	16,6kg
Linearity	± 6µg
Net weight	9,1kg
Operating temperature	+10÷+40°C
Packaging dimensions	660×660×455mm
Repeatability (5% Max)	1,2µg
Repeatability (Max)	2,5µg
Sensitivity drift
Stabilization time	max 10s
Tare range	-11g
Weighing pan dimensions	ø 26mm
Minimum weight (USP)	2,4mg
Minimum weight (U=1%,k=2)	0,24mg
Eccentric load deviation	6µg
Sensitivity offset	3×10⁻⁶×Rt
Sensitivity time drift	1×10⁻⁶/Year×Rt
Weighing chamber dimensions	ø 90×90mm
Power consumption	700mA (wireless terminal - 1A)
Atmosph humidity change rate	±1%/h (±4%/8h)
Sensitivity tempr drift	1×10⁻⁶/°C×Rt
Weight
Working tempr change rate	±0,3 °C/h (±1 °C/8h)
