PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

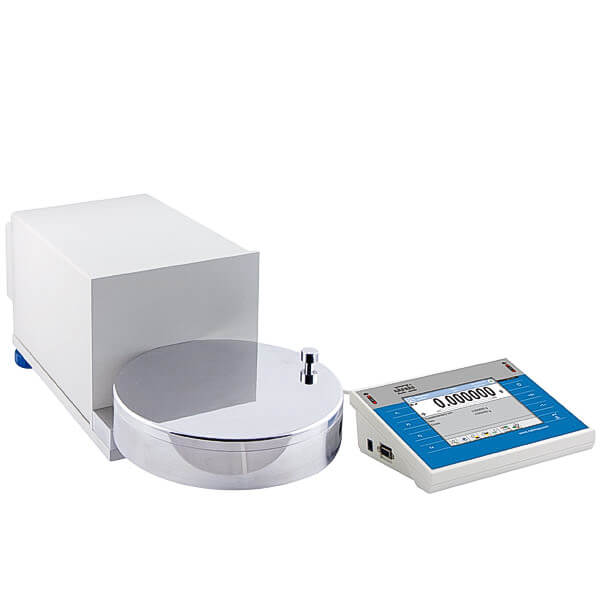

MYA 4Y.F MICROBALANCES - MYA 5.4Y.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 1µg |
|---|
| Power supply | 13,5 ÷ 16 V DC |
|---|
| Adjustment | internal (automatic) |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs |
|---|
| Database capacity | |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Gross weight | |
|---|
| Linearity | ±5µg |
|---|
| Net weight | |
|---|
| Operating temperature | +10÷+40°C |
|---|
| Packaging dimensions | 660×660×455mm |
|---|
| Repeatability (5% Max) | 1µg |
|---|
| Repeatability (Max) | 1,6µg |
|---|
| Sensitivity drift | |
|---|
| Stabilization time | max 8s |
|---|
| Tare range | -5,1g |
|---|
| Weighing pan dimensions | ø160 + ø 26mm |
|---|
| Minimum weight (USP) | 2mg |
|---|
| Minimum weight (U=1%,k=2) | 0,2mg |
|---|
| Eccentric load deviation | 5µg |
|---|
| Sensitivity offset | 1,5×10⁻⁶×Rt |
|---|
| Sensitivity time drift | 1×10⁻⁶/Year×Rt |
|---|
| Weighing chamber dimensions | ø168×35mm |
|---|
| Power consumption | 700mA (wireless terminal - 1A) |
|---|
| Atmosph humidity change rate | ±1%/h (±4%/8h) |
|---|
| Sensitivity tempr drift | 1×10⁻⁶/°C×Rt |
|---|
| Weight | 10,2/14,7kg |
|---|
| Working tempr change rate | ±0,3 °C/h (±1 °C/8h) |
|---|
PRODUCT DATASHEET

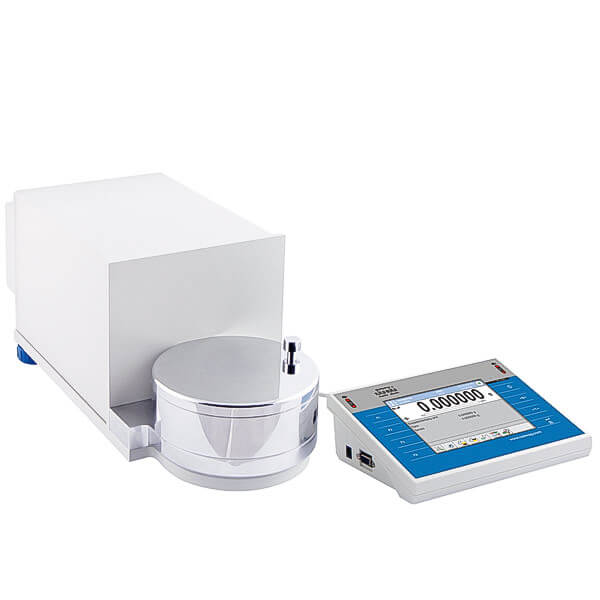

MYA 4Y.F MICROBALANCES - MYA 5.4Y.F
| Maximum capacity [Max] | |
|---|
| Minimum load | |
|---|
| Readability [d] | 1µg |
|---|
| Power supply | 13,5 ÷ 16 V DC |
|---|
| Adjustment | internal (automatic) |
|---|
| Atmospheric humidity | 40% ÷ 80% |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs |
|---|
| Database capacity | |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Gross weight | |
|---|
| Linearity | ±5µg |
|---|
| Net weight | |
|---|
| Operating temperature | +10÷+40°C |
|---|
| Packaging dimensions | 660×660×455mm |
|---|
| Repeatability (5% Max) | 1µg |
|---|
| Repeatability (Max) | 1,6µg |
|---|
| Sensitivity drift | |
|---|
| Stabilization time | max 8s |
|---|
| Tare range | -5,1g |
|---|
| Weighing pan dimensions | ø100 + ø 26mm |
|---|
| Minimum weight (USP) | 2mg |
|---|
| Minimum weight (U=1%,k=2) | 0,2mg |
|---|
| Eccentric load deviation | 5µg |
|---|
| Sensitivity offset | 1,5×10⁻⁶×Rt |
|---|
| Sensitivity time drift | 1×10⁻⁶/Year×Rt |
|---|
| Weighing chamber dimensions | ø118×35mm |
|---|
| Power consumption | 700mA (wireless terminal - 1A) |
|---|
| Atmosph humidity change rate | ±1%/h (±4%/8h) |
|---|
| Sensitivity tempr drift | 1×10⁻⁶/°C×Rt |
|---|
| Weight | 10,2/14,7kg |
|---|
| Working tempr change rate | ±0,3 °C/h (±1 °C/8h) |
|---|
