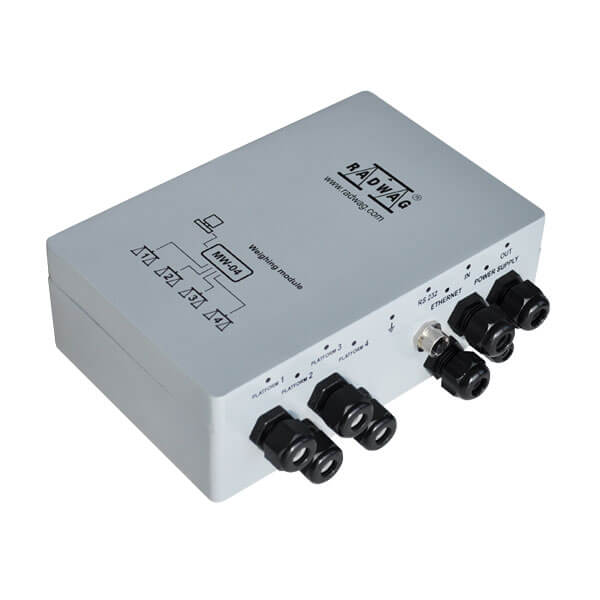

Name: MW-04 WEIGHING CONTROLLERS
SKU: R856
Availability: OutOfStock

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]
Minimum load
Readability [d]
Tare range
Repeatability (5% Max)
Repeatability (Max)
Linearity
Stabilization time
Sensitivity drift
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display
Communication interface	RS 232, Ethernet
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity
Minimum weight (USP)
Minimum weight (U=1%,k=2)
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption	25 W
4I/4O module	YES
Add weighing platform module	additional max. 2 pcs (metrological parameters as in the main weighing platform)
Connection of load cells	4 or 6 wires + shield
Device dimensions
Housing	aluminum
Inputs/Outputs (option)	Moduł 4IN / 4OUT
Load cell excitation voltage	5V DC
Max number of platforms	2 (max 4)
Maximum increase of signal	19,5 mV
Maximum load cell impedance	1200 Ω
Max qty of divisions conv	838 860 ×10
Max qty of verific units	6000 e
Memory
Minimum load cell impedance	80 Ω
Min voltage/verification unit	0,4 µV
Multiple range	YES
OIML Class
Preload range
Processor
Profibus module (option)	operation mode: slave
Protection class	IP 65
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]
Minimum load
Readability [d]
Tare range
Repeatability (5% Max)
Repeatability (Max)
Linearity
Stabilization time
Sensitivity drift
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display
Communication interface	RS 232, RS 485
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity
Minimum weight (USP)
Minimum weight (U=1%,k=2)
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption	25 W
4I/4O module	YES
Add weighing platform module	additional max. 2 pcs (metrological parameters as in the main weighing platform)
Connection of load cells	4 or 6 wires + shield
Device dimensions
Housing	aluminum
Inputs/Outputs (option)	Moduł 4IN / 4OUT
Load cell excitation voltage	5V DC
Max number of platforms	2 (max 4)
Maximum increase of signal	19,5 mV
Maximum load cell impedance	1200 Ω
Max qty of divisions conv	838 860 ×10
Max qty of verific units	6000 e
Memory
Minimum load cell impedance	80 Ω
Min voltage/verification unit	0,4 µV
Multiple range	YES
OIML Class
Preload range
Processor
Profibus module (option)	operation mode: slave
Protection class	IP 65
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]
Minimum load
Readability [d]
Tare range
Repeatability (5% Max)
Repeatability (Max)
Linearity
Stabilization time
Sensitivity drift
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display
Communication interface	RS 232, Profibus DP
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity
Minimum weight (USP)
Minimum weight (U=1%,k=2)
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption	25 W
4I/4O module	NIE
Add weighing platform module	additional max. 2 pcs (metrological parameters as in the main weighing platform)
Connection of load cells	4 or 6 wires + shield
Device dimensions
Housing	aluminum
Inputs/Outputs (option)	Moduł 4IN / 4OUT
Load cell excitation voltage	5V DC
Max number of platforms	2 (max 4)
Maximum increase of signal	19,5 mV
Maximum load cell impedance	1200 Ω
Max qty of divisions conv	838 860 ×10
Max qty of verific units	6000 e
Memory
Minimum load cell impedance	80 Ω
Min voltage/verification unit	0,4 µV
Multiple range	YES
OIML Class
Preload range
Processor
Profibus module (option)	operation mode: slave
Protection class	IP 65
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

MW-04 WEIGHING CONTROLLERS
