Name: MAS MODULES
SKU: R828
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WX-016-0148	MAS.1.21.Y WEIGHING MODULE	no	21g	0,01mg	ø 33mm
WX-016-0147	MAS.1.21.R WEIGHING MODULE	no	21g	0,01mg	ø 33mm
WX-016-0146	MAS.1.21 WEIGHING MODULE	no	21g	0,01mg	ø 33mm
WX-016-0151	MAS.1.51.Y WEIGHING MODULE	no	51g	0,01mg	ø 33mm

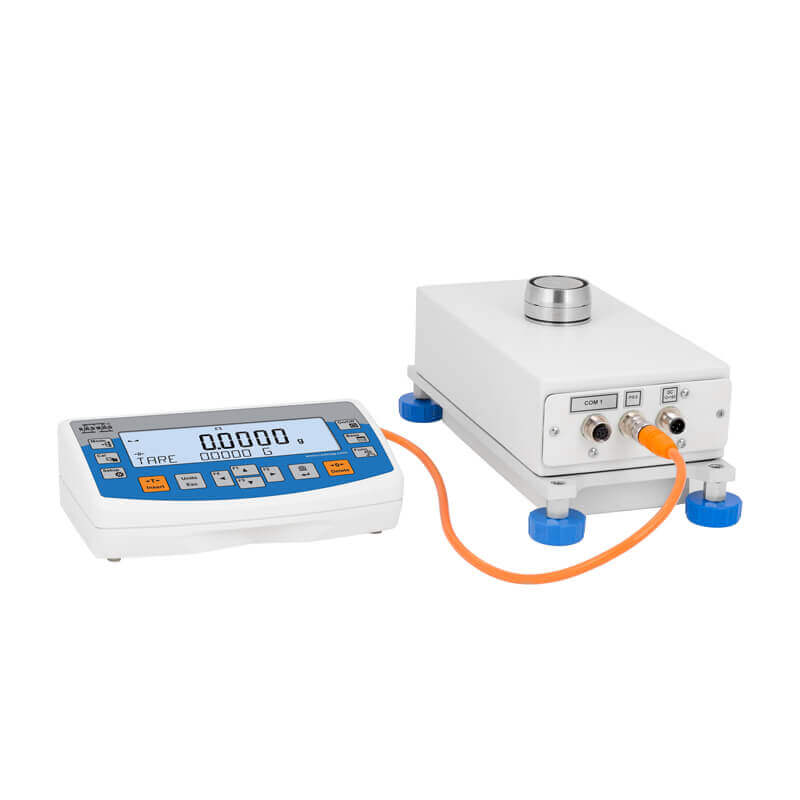

WX-016-0150	MAS.1.51.R WEIGHING MODULE	no	51g	0,01mg	ø 33mm
WX-016-0149	MAS.1.51 WEIGHING MODULE	no	51g	0,01mg	ø 33mm

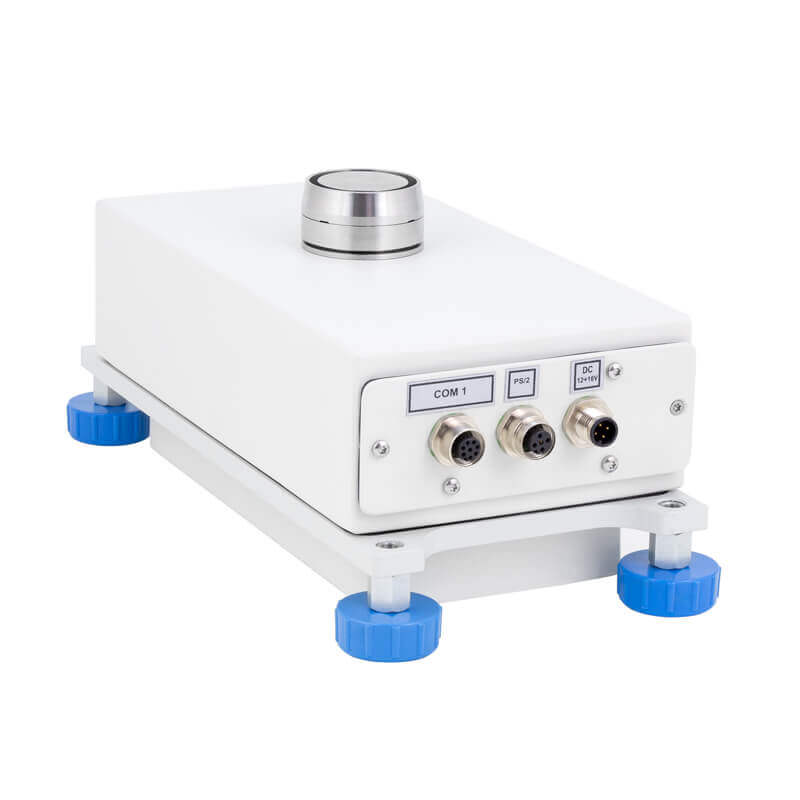

WX-016-0166	MAS.1.82/220.Y WEIGHING MODULE	no	82/220g	0,01/0,1mg	ø 42mm
WX-016-0164	MAS.1.82/220 WEIGHING MODULE	no	82/220g	0,01/0,1mg	ø 42mm
WX-016-0165	MAS.1.82/220.R WEIGHING MODULE	no	82/220g	0,01/0,1mg	ø 42mm
WX-016-0068	MAS 220.Y WEIGHING MODULE	no	220g	0,1mg	ø 42mm
WX-016-0067	MAS 220.R WEIGHING MODULE	no	220g	0,1mg	ø 42mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	21g
Minimum load	1mg
Readability [d]	0,01mg
Tare range	-21g
Repeatability (5% Max)	0,012mg
Repeatability (Max)	0,025mg
Linearity	± 0,06mg
Stabilization time	6s
Sensitivity drift	1 ppm/°C in temperature +15 - +35°C
Operating temperature	+10° ÷ +40 °C
Weighing pan dimensions	ø 33mm
Power supply	13,5 ÷ 16 V DC
Display	5,7'' (panel touchscreen)
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Packaging dimensions	650×340×305mm
Adjustment
Net weight	4,7kg
Gross weight	6,7kg
Atmospheric humidity	40% ÷ 80%
Minimum weight (USP)	24mg
Minimum weight (U=1%,k=2)	2,4mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption
4I/4O module
Add weighing platform module
Connection of load cells
Device dimensions	289×143×125mm
Housing
Inputs/Outputs (option)
Load cell excitation voltage
Max number of platforms
Maximum increase of signal
Maximum load cell impedance
Max qty of divisions conv
Max qty of verific units
Memory
Minimum load cell impedance
Min voltage/verification unit
Multiple range
OIML Class
Preload range
Processor
Profibus module (option)
Protection class
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]	21g
Minimum load	1mg
Readability [d]	0,01mg
Tare range	-21g
Repeatability (5% Max)	0,012mg
Repeatability (Max)	0,025mg
Linearity	± 0,06mg
Stabilization time	6s
Sensitivity drift	1 ppm/°C in temperature +15 - +35°C
Operating temperature	+10° ÷ +40 °C
Weighing pan dimensions	ø 33mm
Power supply	12 ÷ 16 V DC
Display	LCD (backlit)
Communication interface	1×RS232
Packaging dimensions	650×340×305mm
Adjustment
Net weight	4,7kg
Gross weight	6,7kg
Atmospheric humidity	40% ÷ 80%
Minimum weight (USP)	24mg
Minimum weight (U=1%,k=2)	2,4mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption
4I/4O module
Add weighing platform module
Connection of load cells
Device dimensions	289×143×125mm
Housing
Inputs/Outputs (option)
Load cell excitation voltage
Max number of platforms
Maximum increase of signal
Maximum load cell impedance
Max qty of divisions conv
Max qty of verific units
Memory
Minimum load cell impedance
Min voltage/verification unit
Multiple range
OIML Class
Preload range
Processor
Profibus module (option)
Protection class	IP 54
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]	21g
Minimum load	1mg
Readability [d]	0,01mg
Tare range	-21g
Repeatability (5% Max)	0,012mg
Repeatability (Max)	0,025mg
Linearity	± 0,06mg
Stabilization time	6s
Sensitivity drift	1 ppm/°C in temperature +15 - +35°C
Operating temperature	+10° ÷ +40 °C
Weighing pan dimensions	ø 33mm
Power supply	12 ÷ 16 V DC
Display
Communication interface	1×RS232
Packaging dimensions	650×340×305mm
Adjustment
Net weight	4,1kg
Gross weight	6,1kg
Atmospheric humidity	40% ÷ 80%
Minimum weight (USP)	24mg
Minimum weight (U=1%,k=2)	2,4mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption
4I/4O module
Add weighing platform module
Connection of load cells
Device dimensions	289×143×125mm
Housing
Inputs/Outputs (option)
Load cell excitation voltage
Max number of platforms
Maximum increase of signal
Maximum load cell impedance
Max qty of divisions conv
Max qty of verific units
Memory
Minimum load cell impedance
Min voltage/verification unit
Multiple range
OIML Class
Preload range
Processor
Profibus module (option)
Protection class	IP 54
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]	51g
Minimum load	1mg
Readability [d]	0,01mg
Tare range	-51g
Repeatability (5% Max)	0,012mg
Repeatability (Max)	0,025mg
Linearity	± 0,06mg
Stabilization time	6s
Sensitivity drift	1 ppm/°C in temperature +15 - +35°C
Operating temperature	+10° ÷ +40 °C
Weighing pan dimensions	ø 33mm
Power supply	13,5 ÷ 16 V DC
Display	5,7'' (panel touchscreen)
Communication interface	2×USB, 2×RS 232, Ethernet, Wireless Module, 4 Inputs, 4 Outputs (digital)
Packaging dimensions	650×340×305mm
Adjustment
Net weight	4,7kg
Gross weight	6,7kg
Atmospheric humidity	40% ÷ 80%
Minimum weight (USP)	24mg
Minimum weight (U=1%,k=2)	2,4mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption
4I/4O module
Add weighing platform module
Connection of load cells
Device dimensions	289×143×125mm
Housing
Inputs/Outputs (option)
Load cell excitation voltage
Max number of platforms
Maximum increase of signal
Maximum load cell impedance
Max qty of divisions conv
Max qty of verific units
Memory
Minimum load cell impedance
Min voltage/verification unit
Multiple range
OIML Class
Preload range
Processor
Profibus module (option)
Protection class	IP 54
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval

Maximum capacity [Max]	51g
Minimum load	1mg
Readability [d]	0,01mg
Tare range	-51g
Repeatability (5% Max)	0,012mg
Repeatability (Max)	0,025mg
Linearity	± 0,06mg
Stabilization time	6s
Sensitivity drift	1 ppm/°C in temperature +15 - +35°C
Operating temperature	+10° ÷ +40 °C
Weighing pan dimensions	ø 33mm
Power supply	12 ÷ 16 V DC
Display	LCD (backlit)
Communication interface	1×RS232
Packaging dimensions	650×340×305mm
Adjustment
Net weight	4,7kg
Gross weight	6,7kg
Atmospheric humidity	40% ÷ 80%
Minimum weight (USP)	24mg
Minimum weight (U=1%,k=2)	2,4mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Power consumption
4I/4O module
Add weighing platform module
Connection of load cells
Device dimensions	289×143×125mm
Housing
Inputs/Outputs (option)
Load cell excitation voltage
Max number of platforms
Maximum increase of signal
Maximum load cell impedance
Max qty of divisions conv
Max qty of verific units
Memory
Minimum load cell impedance
Min voltage/verification unit
Multiple range
OIML Class
Preload range
Processor
Profibus module (option)
Protection class	IP 54
Repeatability
RS 232, RS 485 transm speed
Sensitivity tempr drift
Verification scale interval
