PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.3.HR2
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 14,3 / 16kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.6.HR2
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 14,3 / 16kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.15.HR2
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 14,3 / 16kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.30.HR2
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 14,3 / 16kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.6.HR3
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 17,3 / 20kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.15.HR3
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 17,3 / 20kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.30.HR3
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 17,3 / 20kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET

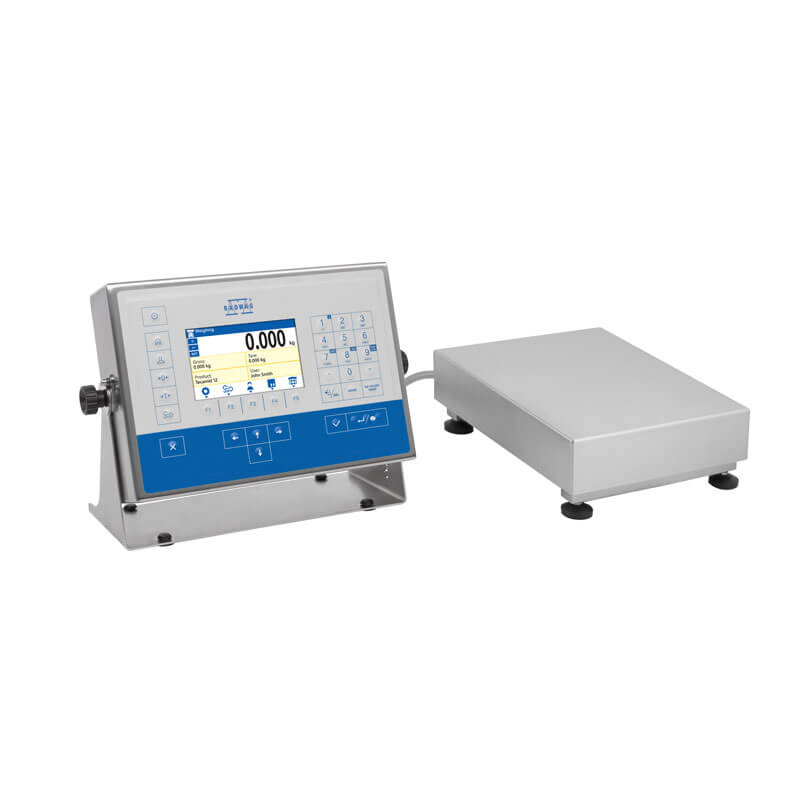

HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.60.HR3
| Maximum capacity [Max] | |
|---|
| Minimum load | 400 g |
|---|
| Readability [d] | 20 g |
|---|
| Tare range | -60 kg |
|---|
| Operating temperature | -10 ÷ +40 °C |
|---|
| Weighing pan dimensions | 410×410 mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, RS485 |
|---|
| Atmospheric humidity | 10% ÷ 85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 17.3 kg/20 kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.150.HR3
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic kolorowy |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH without condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 17,3 / 20kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.15.HR4
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 24,8 / 28,5kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.30.HR4
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 24,8 / 28,5kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.60.HR4
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 24,8 / 28,5kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.150.HR4
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 24,8 / 28,5kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.15.HR3/5
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.30.HR3/5
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.60.HR3/5
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.150.HR3/5
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 40g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.15.HR5
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 27,8 / 32kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.30.HR5
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 27,8 / 32kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.60.HR5
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 27,8 / 32kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1 HR WATERPROOF PLATFORM SCALES - HX5.EX-1.150.HR5
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 GbII 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI316 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 27,8 / 32kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI316 |
|---|
| Additional LCD display | |
|---|
