PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

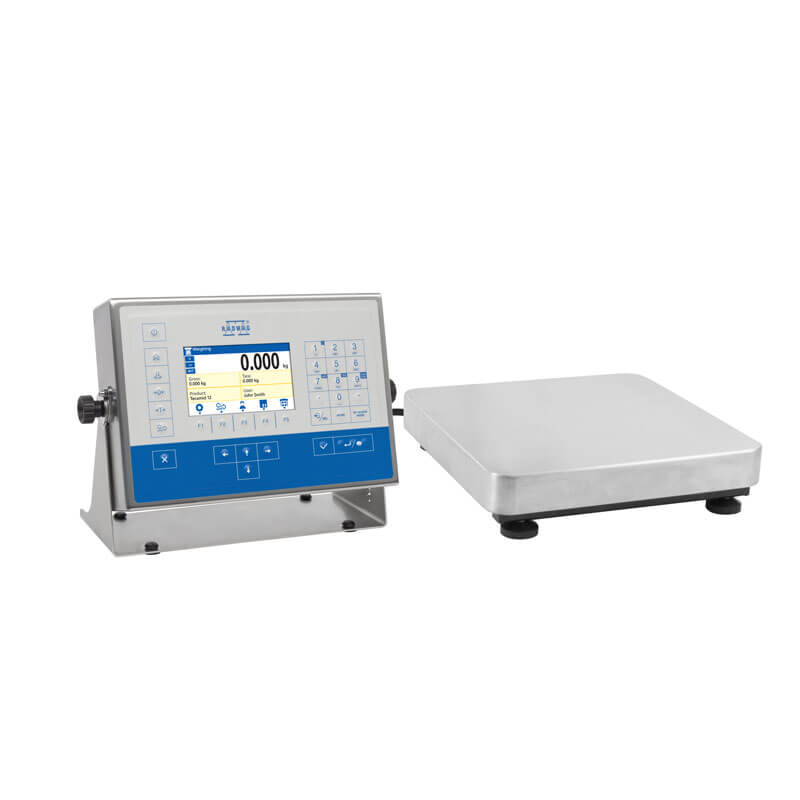

HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.1,5.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 10g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -1,5kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 12,3 / 13,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.3.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 12,3 / 13,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.6.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 12,3 / 13,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.15.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 12,3 / 13,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.30.F1
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 12,3 / 13,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.15.C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 18,1 / 20,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET

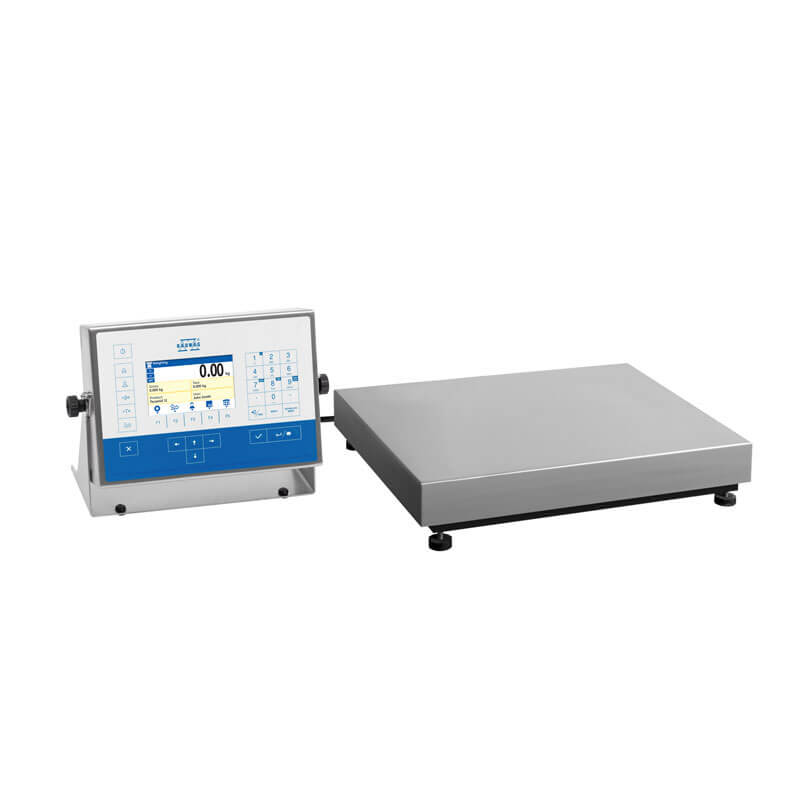

HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.30.C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 18,1 / 20,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.60.C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 18,1 / 20,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.150.C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 18,1 / 20,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.300.C2
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 18,1 / 20,3kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.15.C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 28,7 / 32,7kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.30.C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 28,7 / 32,7kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.60.C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 28,7 / 32,7kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.150.C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 28,7 / 32,7kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
PRODUCT DATASHEET
HX5.EX-1 C 1 LOAD CELL PLATFORM SCALES - HX5.EX-1.300.C3
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×700mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 28,7 / 32,7kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
