PRODUCT DATASHEET

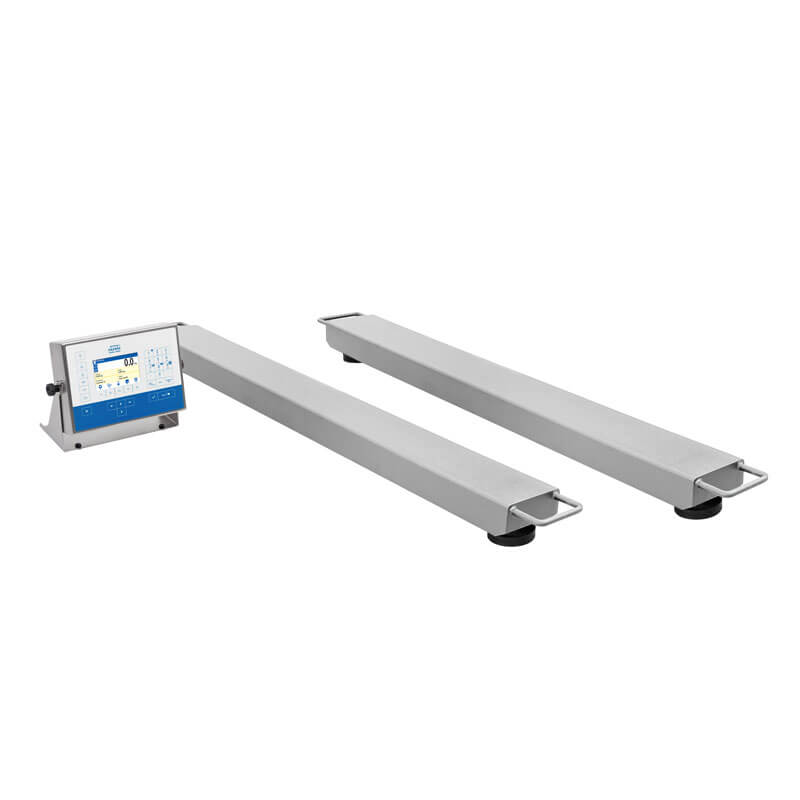

HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.600.H
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×1,2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 43,8 / 44kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.1500.H
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×1,2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 43,8 / 44kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.3000.H
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×1,2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 43,8 / 44kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.2000.H1
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -2000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 59,8 / 60kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.4000.H1
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -4000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 97,8 / 98kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.6000.H1
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 97,8 / 98kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.2000.H2
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -2000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2,5m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 71,8 / 72kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | Stal stainless steel AISI304 |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.4000.H2
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -4000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2,5m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 111,8 / 112kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4P2 H STAINLESS STEEL BEAM SCALES - HX5.EX-1.4P2.6000.H2
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2×2,5m |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIC T135°C Db |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 139,8 / 140kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
| Additional LCD display | |
|---|
