PRODUCT DATASHEET

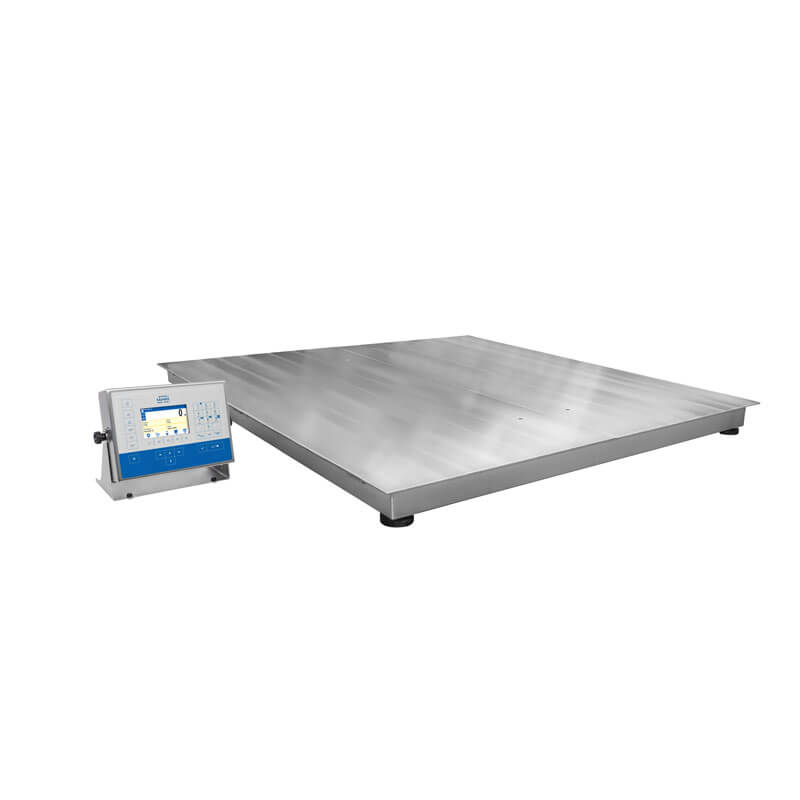

HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.60.H6/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 67 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.150.H6/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.300.H6/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H6/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.150.H7/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 68kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.300.H7/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 68kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H7/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 68kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.1500.H7/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 68kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.300.H8/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 127,8 / 128kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H8/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 127,8 / 128kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.1500.H8/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 127,8 / 128kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.3000.H8/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 127,8 / 128kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.300.H8/9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 157,8 / 158kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H8/9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 157,8 / 158kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.1500.H8/9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 157,8 / 158kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.3000.H8/9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 162,8 / 163kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.300.H9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 192,8 / 193kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 192,8 / 193kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.1500.H9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 192,8 / 193kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.3000.H9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 202,8 / 203kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.6000.H9/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.600.H10/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 287,8 / 288kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.1500.H10/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 287,8 / 288kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.3000.H10/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 287,8 / 288kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 H/Z STAINLESS STEEL PLATFORM SCALES, PIT VERSION - HX5.EX-1.4.6000.H10/Z
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal stainless steel AISI304 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 287,8 / 288kg |
|---|
| Protection class | IP 68 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
