PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET

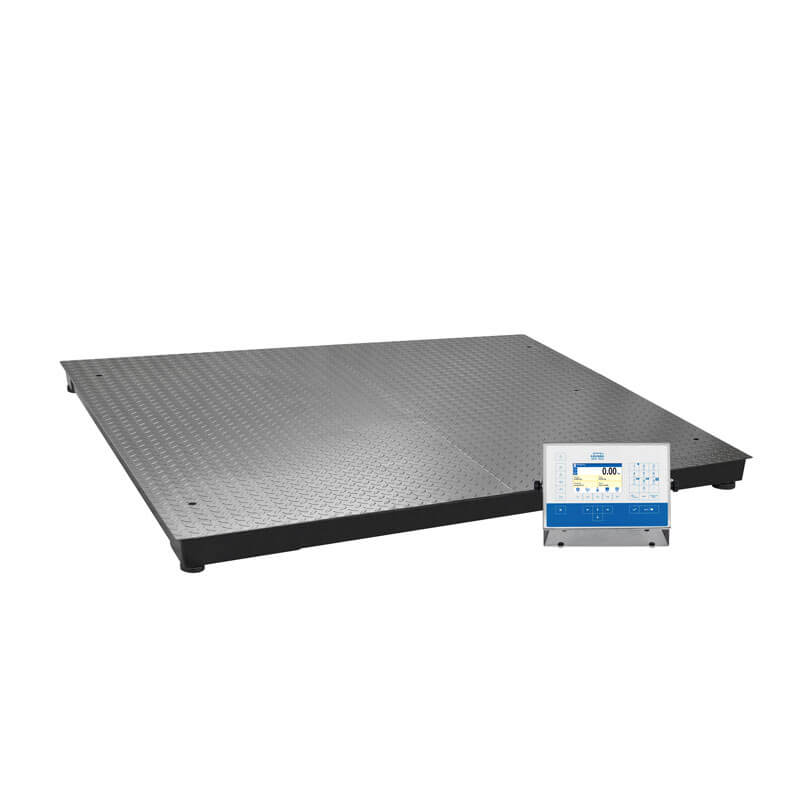

HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.60.C6
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.150.C6
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.300.C6
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.600.C6
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.1500.C6
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 62,8 / 63kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.60 C7
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 88kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.150.C7
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 88kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.300.C7
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 88kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.600.C7
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 88kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.1500.C7
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1000×1000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 87,8 / 88kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.300.C8
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 117,8 / 118kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.600.C8
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 117,8 / 118kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.1500.C8
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 117,8 / 118kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.3000.C8
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1200mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 117,8 / 118kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.600.C8/9
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 142,8 / 143kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.1500.C8/9
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 142,8 / 143kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.3000.C8/9
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1200×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 142,8 / 143kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.600.C9
| Maximum capacity [Max] | |
|---|
| Minimum load | 4kg |
|---|
| Readability [d] | 200g |
|---|
| Tare range | -600kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 167,8 / 168kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.1500.C9
| Maximum capacity [Max] | |
|---|
| Minimum load | 10kg |
|---|
| Readability [d] | 500g |
|---|
| Tare range | -1500kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 167,8 / 168kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.3000.C9
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 167,8 / 168kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.6000.C9
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×1500mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 167,8 / 168kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.3000.C10
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 237,8 / 238kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.6000.C10
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 1500×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 237,8 / 238kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.3000.C11
| Maximum capacity [Max] | |
|---|
| Minimum load | 20kg |
|---|
| Readability [d] | 1000g |
|---|
| Tare range | -3000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2000×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 297,8 / 298kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
HX5.EX-1.4 C PLATFORM SCALES - HX5.EX-1.4.6000.C11
| Maximum capacity [Max] | |
|---|
| Minimum load | 40kg |
|---|
| Readability [d] | 2000g |
|---|
| Tare range | -6000kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 2000×2000mm |
|---|
| Power supply | 230V AC |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2× RS 232, RS 485 |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 15 W |
|---|
| Conformity with ATEX | II 2G Ex ib IIB T4 Gb |
|---|
| Construction | Stal malowana proszkowo St35 |
|---|
| Indicator | PUE HX5.EX-1 |
|---|
| Net weight/gross weight | 357,8 / 358kg |
|---|
| Protection class | IP 65 construction, IP 66/68 indicator |
|---|
| Weighing pan material | |
|---|
