PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET
DWM/HPS SORTING CHECKWEIGHER - DWM 1500/HPS CHECKWEIGHER
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -1500g |
|---|
| Operating temperature | |
|---|
| Power supply | 230V 50Hz AC |
|---|
| Display | LCD 12" (panel touchscreen) |
|---|
| Communication interface | Ethernet, USB, RS 232, I/O |
|---|
| Air consumption | |
|---|
| Capacity | |
|---|
| Construction | stainless steel |
|---|
| Conveyor velocity | 1,6 m/s |
|---|
| Conveyors | belt |
|---|
| Max dimens of product [l× w] | 350×180mm |
|---|
| Number of separators | 6 or 12 |
|---|
| OIML Class | |
|---|
| Operating pressure | |
|---|
| Pneumatic connector | 6 bar quick coupling intended for 12 mm cable |
|---|
| Protection class | IP 65 |
|---|
| Speed | |
|---|
| Weighing module | electromagnetic weighing module |
|---|
| Weighing platform height | |
|---|
PRODUCT DATASHEET

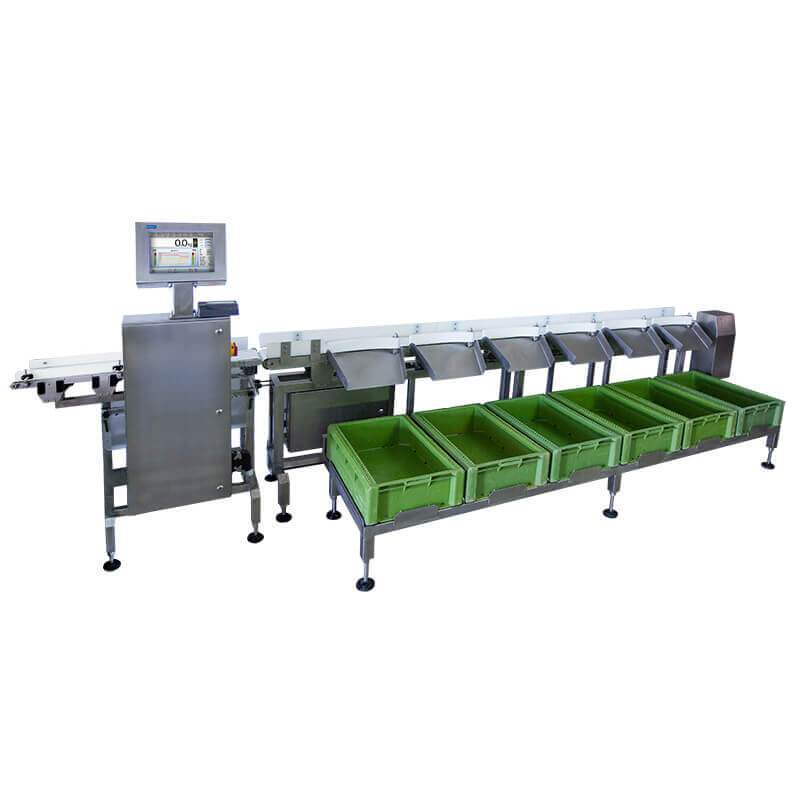

DWM/HPS SORTING CHECKWEIGHER - DWM 3000/HPS CHECKWEIGHER
| Maximum capacity [Max] | |
|---|
| Minimum load | 50g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3000g |
|---|
| Operating temperature | |
|---|
| Power supply | 230V 50Hz AC |
|---|
| Display | LCD 12" (panel touchscreen) |
|---|
| Communication interface | Ethernet, USB, RS 232, I/O |
|---|
| Air consumption | |
|---|
| Capacity | |
|---|
| Construction | stainless steel |
|---|
| Conveyor velocity | 1,6 m/s |
|---|
| Conveyors | belt |
|---|
| Max dimens of product [l× w] | 400×230mm |
|---|
| Number of separators | 6 or 12 |
|---|
| OIML Class | |
|---|
| Operating pressure | |
|---|
| Pneumatic connector | 6 bar quick coupling intended for 12 mm cable |
|---|
| Protection class | IP 65 |
|---|
| Speed | |
|---|
| Weighing module | electromagnetic weighing module |
|---|
| Weighing platform height | |
|---|
PRODUCT DATASHEET
DWM/HPS SORTING CHECKWEIGHER - DWM 6000/HPS CHECKWEIGHER
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6000g |
|---|
| Operating temperature | |
|---|
| Power supply | 230V 50Hz AC |
|---|
| Display | LCD 12" (panel touchscreen) |
|---|
| Communication interface | Ethernet, USB, RS 232, I/O |
|---|
| Air consumption | |
|---|
| Capacity | |
|---|
| Construction | stainless steel |
|---|
| Conveyor velocity | 1 m/s |
|---|
| Conveyors | belt |
|---|
| Max dimens of product [l× w] | 500×280mm |
|---|
| Number of separators | 6 or 12 |
|---|
| OIML Class | |
|---|
| Operating pressure | |
|---|
| Pneumatic connector | 6 bar quick coupling intended for 12 mm cable |
|---|
| Protection class | IP 65 |
|---|
| Speed | |
|---|
| Weighing module | electromagnetic weighing module |
|---|
| Weighing platform height | |
|---|
