PRODUCT DATASHEET

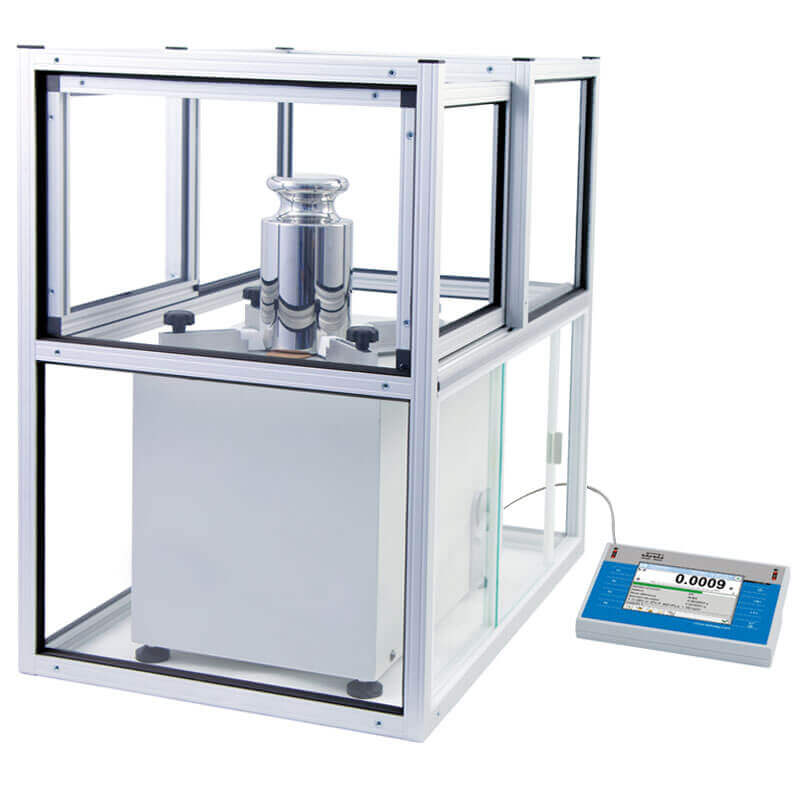

APP.4Y.KO MANUAL MASS COMPARATORS - APP 10.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 0,1mg |
|---|
| Repeatability (5% Max) | 0,4 mg (100 g) |
|---|
| Repeatability (Max) | 0,5 mg (10 kg) |
|---|
| Stabilization time | 30s |
|---|
| Operating temperature | +15 ÷ +30 |
|---|
| Weighing pan dimensions | ø190 (ø 300 )mm |
|---|
| Power supply | |
|---|
| Packaging dimensions | 1160×650×700mm |
|---|
| Adjustment | external |
|---|
| Net weight | 63kg |
|---|
| Gross weight | 89kg |
|---|
| Atmospheric humidity | 40% ÷ 60% |
|---|
| Atmosph humidity change rate | ±5%/4h |
|---|
| Anti-draft chamber dimens | |
|---|
| Chamber packaging size | 960×920×735mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 5 kg ÷ 10 kg |
|---|
| E2 | 1 kg ÷ 10 kg |
|---|
| Eccentricity (tested load) | 2 d / 1 |
|---|
| Electric compensation range | - 100 g ÷ + 200g |
|---|
| F1 | 500 g ÷ 10 kg |
|---|
| F2 | 100 g ÷ 10 kg |
|---|
| M1 | 100 g ÷ 10 kg |
|---|
| M2 | 100 g ÷ 10 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | 71 kg / 97 kg |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | 300 g, 200 g |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 455×300×380mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ±0,5°C/12h (±0,3°C/h) |
|---|
PRODUCT DATASHEET
APP.4Y.KO MANUAL MASS COMPARATORS - APP 30.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 1mg |
|---|
| Repeatability (5% Max) | 2 mg (1 kg) |
|---|
| Repeatability (Max) | 3 mg (30 kg) |
|---|
| Stabilization time | 20s |
|---|
| Operating temperature | +15 ÷ +30 |
|---|
| Weighing pan dimensions | ø220 (ø 300 )mm |
|---|
| Power supply | |
|---|
| Packaging dimensions | 1160×650×700mm |
|---|
| Adjustment | external |
|---|
| Net weight | 38,8kg |
|---|
| Gross weight | 64,8kg |
|---|
| Atmospheric humidity | 30% ÷ 70% |
|---|
| Atmosph humidity change rate | ±5%/4h |
|---|
| Anti-draft chamber dimens | 700×440×550mm |
|---|
| Chamber packaging size | 960×825×730mm |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | 20 kg |
|---|
| E2 | 10 kg ÷ 20 kg |
|---|
| Eccentricity (tested load) | 2d / 1mm |
|---|
| Electric compensation range | 100 g ÷ 30,5 kg |
|---|
| F1 | 2 kg ÷ 20 kg |
|---|
| F2 | 1 kg ÷ 20 kg |
|---|
| M1 | 1 kg ÷ 20 kg |
|---|
| M2 | 1 kg ÷ 20 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | 41 kg / 67 kg |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | - |
|---|
| Supplementary weights intern | half automatic |
|---|
| Weighing device dimensions | 454×300×380mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ±0,5°C/12h |
|---|
PRODUCT DATASHEET

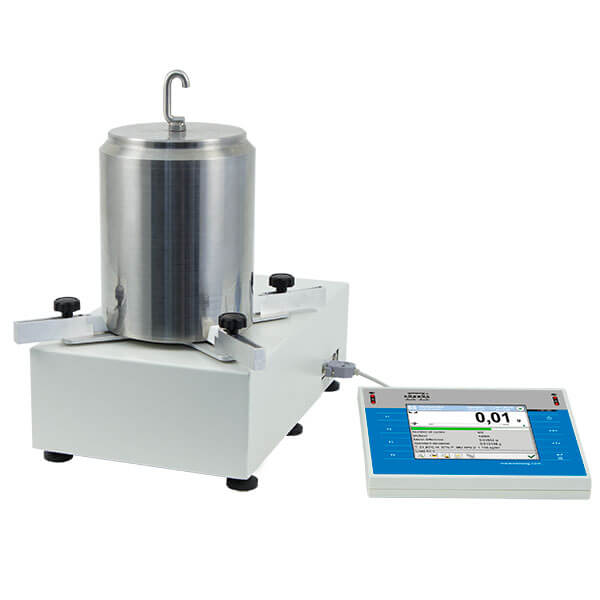

APP.4Y.KO MANUAL MASS COMPARATORS - APP 64.4Y.KO
| Maximum capacity [Max] | |
|---|
| Readability [d] | 10mg |
|---|
| Repeatability (5% Max) | 18 mg (1 kg) |
|---|
| Repeatability (Max) | 18 mg (50 kg) |
|---|
| Stabilization time | 20s |
|---|
| Operating temperature | +10 ÷ +40°C |
|---|
| Weighing pan dimensions | ø300 (ø 400 )mm |
|---|
| Power supply | |
|---|
| Packaging dimensions | 1160×650×700mm |
|---|
| Adjustment | external |
|---|
| Net weight | 22,5kg |
|---|
| Gross weight | 36,5kg |
|---|
| Atmospheric humidity | 30% ÷ 70% |
|---|
| Atmosph humidity change rate | ±10%/4h |
|---|
| Anti-draft chamber dimens | |
|---|
| Chamber packaging size | |
|---|
| Comparator packsize with pan | |
|---|
| Comp packsize without pan | |
|---|
| Controling device dimensions | 206×140×70mm |
|---|
| E1 | - |
|---|
| E2 | 50 kg |
|---|
| Eccentricity (tested load) | 2 d / 1 |
|---|
| Electric compensation range | 0 ÷ 64 kg |
|---|
| F1 | 20 kg ÷ 50 kg |
|---|
| F2 | 5 kg ÷ 50 kg |
|---|
| M1 | 2 kg ÷ 50 kg |
|---|
| M2 | 1 kg ÷ 50 kg |
|---|
| Max permissible load speed | |
|---|
| Net weight/gross weight | |
|---|
| Net/gross weight with pan | 25 kg / 39 kg |
|---|
| Recommended load speed | |
|---|
| Self-cent weigh pan dimens | |
|---|
| Supplementary weights extern | - |
|---|
| Supplementary weights intern | - |
|---|
| Weighing device dimensions | 385×215×420mm |
|---|
| Weigh unit dimens with pan | |
|---|
| Weigh unit dmns without pan | |
|---|
| Working tempr change rate | ±0,5°C/12h |
|---|
