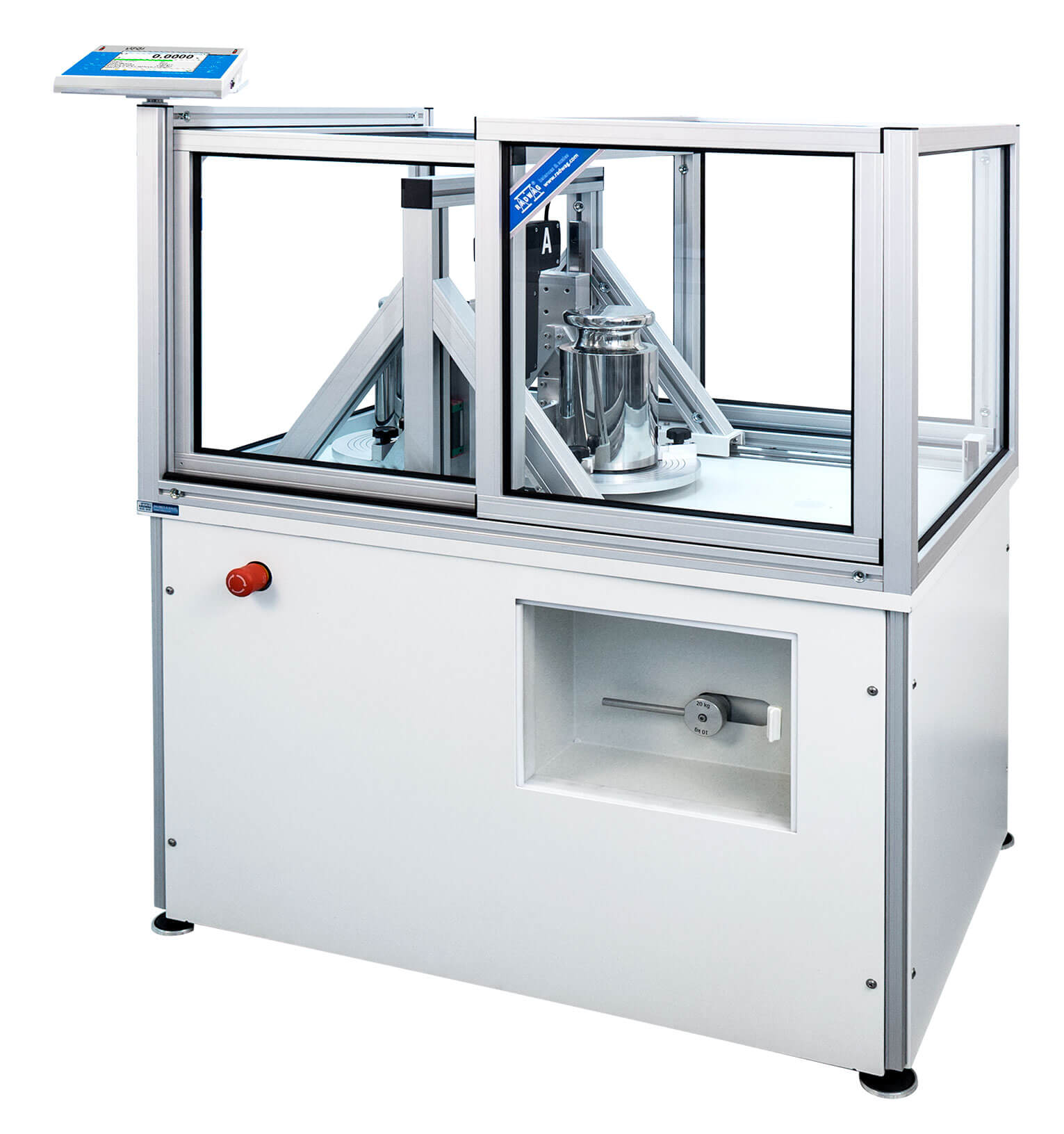

Name: AKM-2 AUTOMATIC MASS COMPARATORS
SKU: R882
Availability: OutOfStock

PRODUCT SERIES

SKU	Model	Maximum capacity	Readability	Pan size
WL-411-0001	AKM-2/10	10,2kg	0,1mg	ø90mm
WL-411-0009	AKM-2/20.1	20,5kg	0,1mg	ø90mm
WL-411-0006	AKM-2/50	51kg	1mg	ø100mm
WL-411-0010	AKM-2/20.5	20.5 kg	0.1 mg	ø90 mm

Please, use model selector above to see product description.

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	10,2kg
Readability [d]	0,1mg
Repeatability (5% Max)	0,2 mg (500 g)
Repeatability (Max)	0,2 mg (10 kg)
Stabilization time	30s
Operating temperature	+10 ÷ +30°C
Weighing pan dimensions	ø90mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	1050×800×1320mm
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 12 h
Anti-draft chamber dimens
Chamber packaging size
Controling device dimensions	206×140×70 mm
E1	2 kg ÷ 10 kg
E2	500 g ÷ 10 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 100 ÷ + 200g
F1	500 g ÷ 10 kg
F2	500 g ÷ 10 kg
M1	-
M2	-
Magazine positions
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)	230 kg / 350 kg
Net/gross weight (comparator)	30 kg / 59 kg
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	950×650×1150
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	20,5kg
Readability [d]	0,1mg
Repeatability (5% Max)	0,4 mg (1 kg)
Repeatability (Max)	0,4 mg (20 kg)
Stabilization time	30s
Operating temperature	+10 ÷ +30°C
Weighing pan dimensions	ø90mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	1150×770×1320mm
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 12 h
Anti-draft chamber dimens
Chamber packaging size
Controling device dimensions	206×140×70mm
E1	5 kg ÷ 20 kg
E2	1 kg ÷ 20 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 500 ÷ + 500g
F1	1 kg ÷ 20 kg
F2	1 kg ÷ 20 kg
M1	-
M2	-
Magazine positions
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)	235 kg / 352 kg
Net/gross weight (comparator)	39 kg / 68 kg
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	455×275×380mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	51kg
Readability [d]	1mg
Repeatability (5% Max)	2 mg (5 kg)
Repeatability (Max)	2 mg (50 kg)
Stabilization time	30s
Operating temperature	+10 ÷ +30°C
Weighing pan dimensions	ø100mm
Power supply	110 ÷ 230 V AC / 50 ÷ 60 Hz / 13,5 ÷ 16 V DC
Packaging dimensions	1150×800×1320mm
Adjustment	external
Net weight
Gross weight
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 12 h
Anti-draft chamber dimens
Chamber packaging size
Controling device dimensions	206×140×70mm
E1	20 kg ÷ 50 kg
E2	10 kg ÷ 50 kg
Eccentricity (tested load)	0mg
Electric compensation range	- 1000 ÷ + 1000g
F1	10 kg ÷ 50 kg
F2	10 kg ÷ 50 kg
M1	-
M2	-
Magazine positions
Net weight (with table)
Net weight (without table)
Net weight/gross weight
Net/gross weight (automat)	260 kg / 380 kg
Net/gross weight (comparator)	60 kg / 94 kg
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	1050×650×1150mm
Working tempr change rate	± 0,5 °C / 12 h (± 0,3 °C / 4 h)

Maximum capacity [Max]	20.5 kg
Readability [d]	0.1 mg
Repeatability (5% Max)	0.4 mg (1 kg)
Repeatability (Max)	0.4 mg (20 kg)
Stabilization time	30 s
Operating temperature	+10 ÷ +30 °C
Weighing pan dimensions	ø90 mm
Power supply	100 ÷ 240 V AC 50 / 60 Hz
Packaging dimensions	1150×770×1320 mm
Adjustment	external
Net weight
Gross weight	68 kg / 352 kg
Atmospheric humidity	40% ÷ 60%
Atmosph humidity change rate	± 2 % / 12 h
Anti-draft chamber dimens
Chamber packaging size
Controling device dimensions
E1	5 kg ÷ 20 kg
E2	5 kg ÷ 20 kg
Eccentricity (tested load)	0 mg
Electric compensation range	-500 g ÷ +500 g
F1	5 kg ÷ 20 kg
F2	5 kg ÷ 20 kg
M1	-
M2	-
Magazine positions
Net weight (with table)	235 kg
Net weight (without table)	39 kg
Net weight/gross weight
Net/gross weight (automat)
Net/gross weight (comparator)
Object diameters
Pressure range
Supplementary weights extern	-
Supplementary weights intern	half automatic
Vacuum chamber dimensions
Weighing device dimensions	455×275×380 mm
Working tempr change rate	±0.5°C/12h (±0.3°C/4h)

AKM-2 AUTOMATIC MASS COMPARATORS
