PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 1.5/F1/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 10g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -1,5kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 3/F1/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET

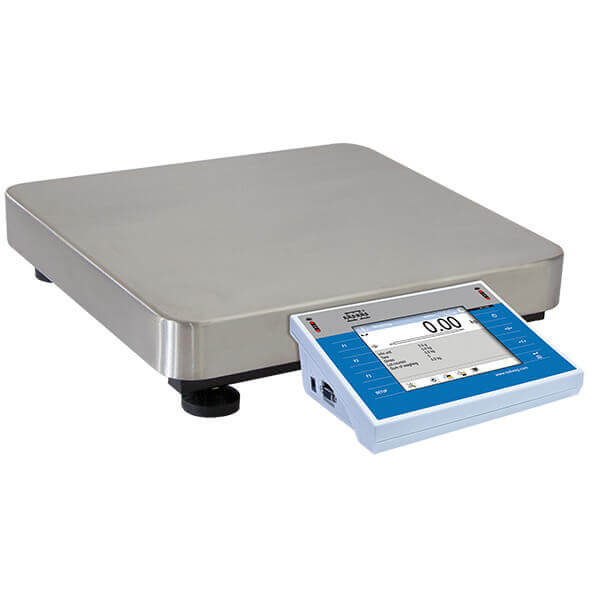

WPY /R Multifunctional Scale - WPY 6/F1/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 15/F1/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 30/F1/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 15/C2/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40 |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 720×580×220mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 30/C2/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40 |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 720×580×220mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 60/C2/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40 |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 720×580×220mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
WPY /R Multifunctional Scale - WPY 150/C2/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40 |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 720×580×220mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET

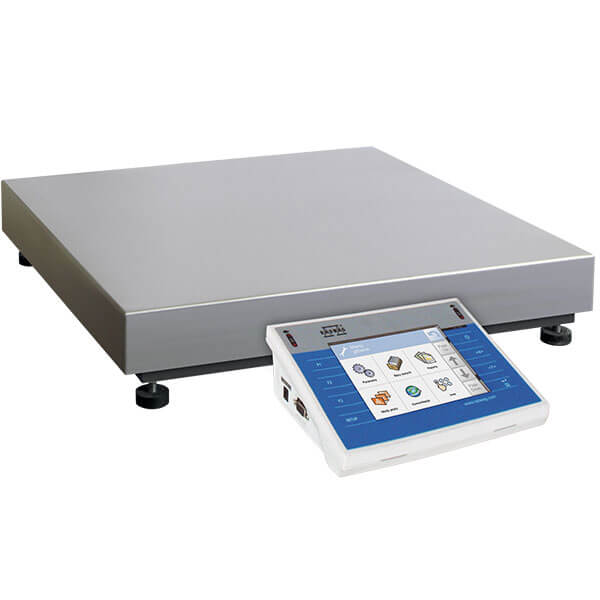

WPY /R Multifunctional Scale - WPY 300/C2/R
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | 2s |
|---|
| Operating temperature | -10 ÷ +40 |
|---|
| Weighing pan dimensions | 400×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | 720×580×220mm |
|---|
| Adjustment | external |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | |
|---|
| Add weighing platform module | |
|---|
| Construction | |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 43 |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
