PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 3/HR2/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250x300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 580×320×360mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 9 / 10,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 1g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 6/HR2/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250x300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 580×320×360mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 9 / 10,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 2g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 15/HR2/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 250x300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 580×320×360mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 9 / 10,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 5g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 15/HR3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410x410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 5g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 30/HR3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410x410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 10g |
|---|
PRODUCT DATASHEET

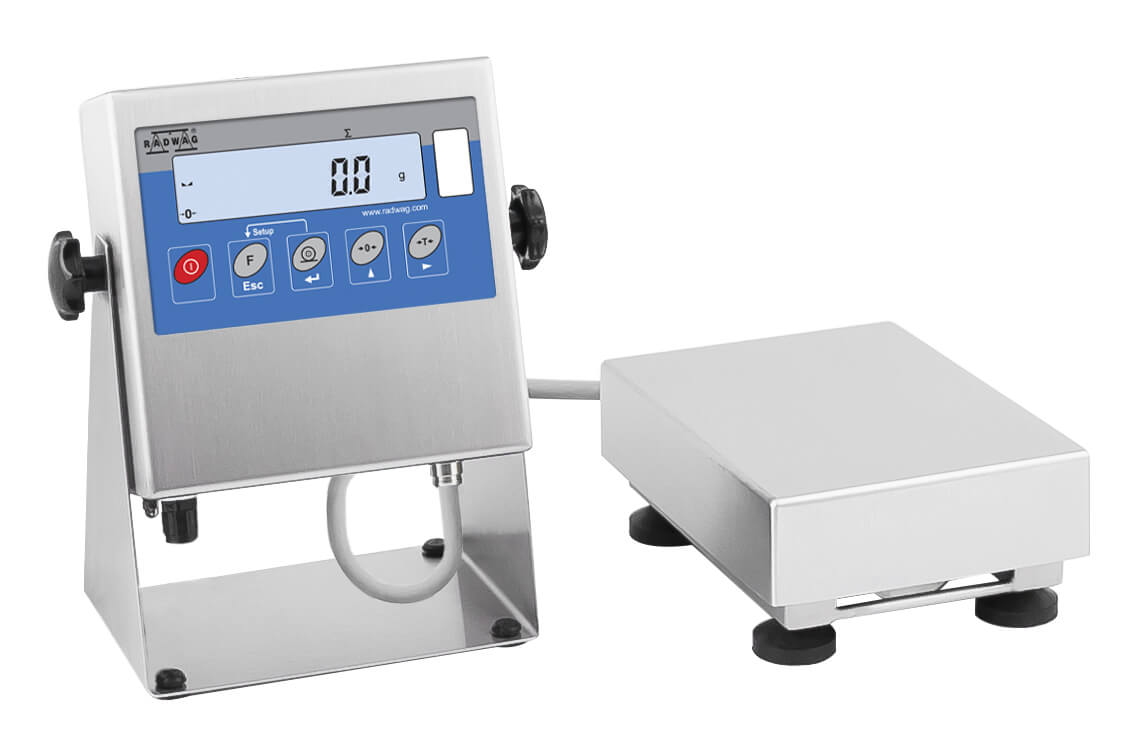

WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 60/HR3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410x410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 150/HR3/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1000g |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 410x410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 50g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 60/HR4/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 840×600×400mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 23,5 / 25,8kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 150/HR4/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1000g |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 840×600×400mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 23,5 / 25,8kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 50g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 60/HR3/5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 150/HR3/5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1000g |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 670×510×330mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 15,5 / 17,3kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 50g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 60/HR5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 840×700×400mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 29,5 / 31,8kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 20g |
|---|
PRODUCT DATASHEET
WPT /HR /K Waterproof Scale With Stainless Steel Load Cell - WPT 150/HR5/K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1000g |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
|---|
| Display | LCD (backlit) |
|---|
| Communication interface | RS 232 |
|---|
| Packaging dimensions | 840×700×400mm |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Construction | Stal stainless steel AISI 316 |
|---|
| Net weight/gross weight | 29,5 / 31,8kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | 45 h (average time) |
|---|
| Protection class | IP 68 construction, IP 68 cell,IP 68 (1h max)/69 indicator |
|---|
| Storage temperature | -25 - +70°C |
|---|
| Verification scale interval | 50g |
|---|
