WPT /H Waterproof Scale With Protected Load Cell

WPT /H Waterproof Scale With Protected Load Cell

Name: WPT /H Waterproof Scale With Protected Load Cell
SKU: E007
Availability: OutOfStock

Code: E007

Model

Clear

Add to Compare

View Compare

WPT /H Waterproof Scale With Protected Load Cell quantity

Add to quote

This product is already in quote request list

Browse the list

Share (0)

Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Series
Description
Documents
Datasheet

PRODUCT SERIES

SKU	Model	Verification	Maximum capacity	Readability	Pan size
WP-105-0008	WPT 60/H4	yes	60kg	20g	500×500mm
WP-105-0039	WPT 3/H1	yes	3kg	1g	200×150mm
WP-105-0039	WPT 3/H1	yes		1g	200×150mm
WP-105-0058	WPT 6/H2	yes	6kg	2g	250x300mm
WP-105-0037	WPT 15/H2	yes	15kg	5g	250x300mm
WP-105-0037	WPT 15/H2	yes		5g	250x300mm
WP-105-0004	WPT 15/H3	yes	15kg	5g	410×410mm
WP-105-0036	WPT 30/H3	yes	30kg	10g	410×410mm
WP-105-0006	WPT 60/H3	yes	60kg	20g	410×410mm
WP-105-0007	WPT 150/H3	yes	150kg	50g	410×410mm
WP-105-0009	WPT 150/H4	yes	150kg	50g	500×500mm
WP-105-0086	WPT 60/H3/5	yes	60kg	20g	400×600mm
WP-105-0088	WPT 150/H3/5	yes	150kg	50g	400×600mm
WP-105-0010	WPT 60/H5	yes	60kg	20g	600×600mm
WP-105-0010	WPT 60/H5	yes		20g	600×600mm
WP-105-0011	WPT 150/H5	yes	150kg	50g	600×600mm
WP-105-0012	WPT 300/H5	yes	300kg	100g	600×600mm
WP-105-0013	WPT 150/H6	yes	150kg	50g	800×800mm
WP-105-0013	WPT 150/H6	yes		50g	800×800mm
WP-105-0014	WPT 300/H6	yes	300kg	100g	800×800mm
WP-105-0014	WPT 300/H6	yes		100g	800×800mm

Previous1Next

PRODUCT DESCRIPTION

Please, use model selector above to see product description.

PRODUCT DOCUMENTS

Technical Documentation

User Manual
Data Sheet
Conformity Declaration
Certificate of Health Quality

PRODUCT DATASHEET

Please, use model selector above to see product datasheet.

PRODUCT DATASHEET

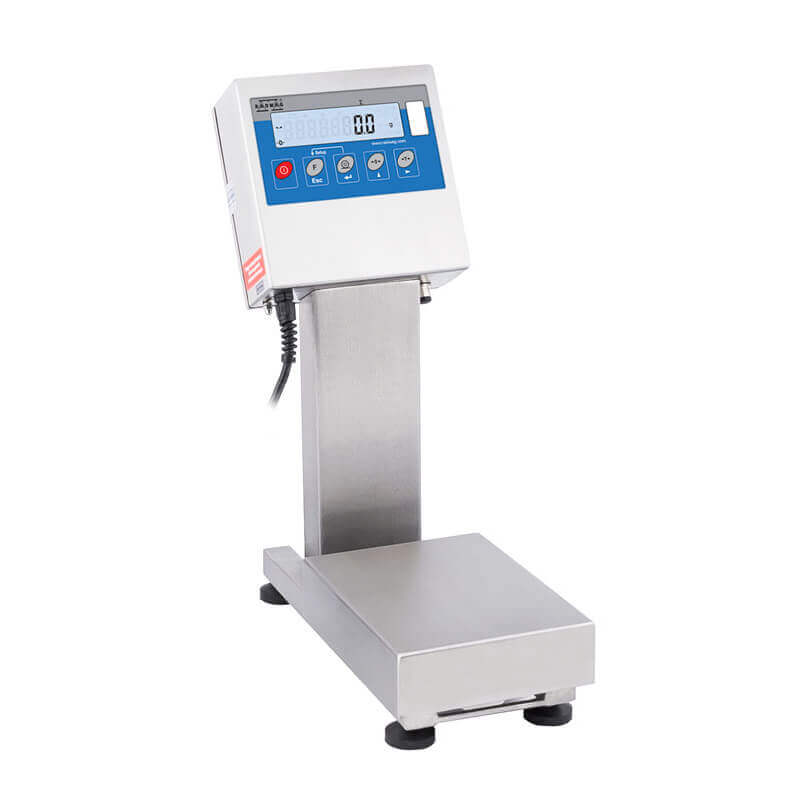

WPT /H Waterproof Scale With Protected Load Cell - WPT 3/H1

Maximum capacity [Max]	3kg
Minimum load
Readability [d]	1g
Tare range	-3kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	200×150mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	520×260×290mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	7 / 8,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

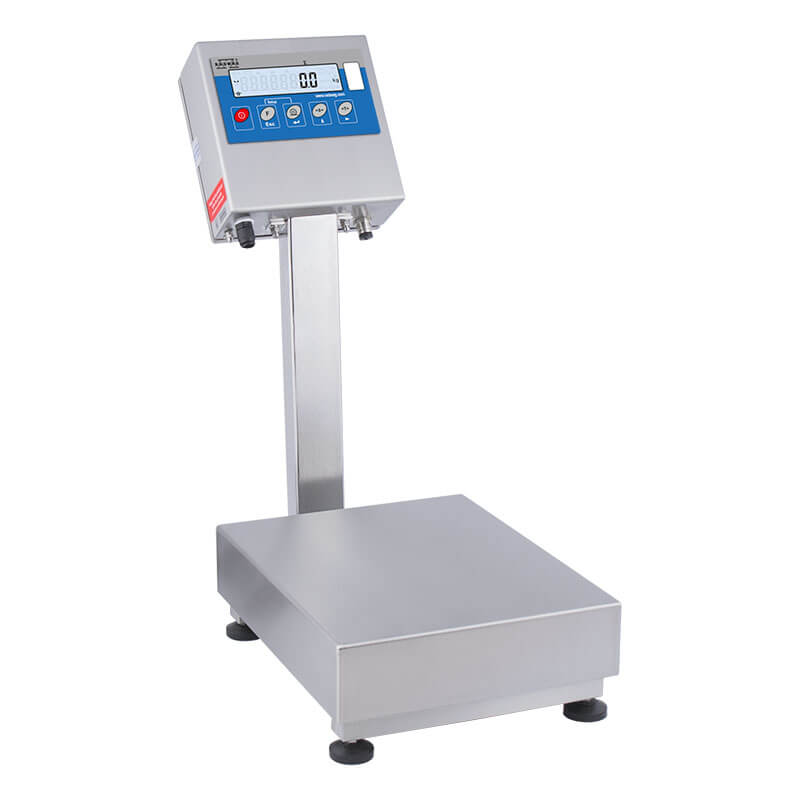

WPT /H Waterproof Scale With Protected Load Cell - WPT 6/H2

Maximum capacity [Max]	6kg
Minimum load
Readability [d]	2g
Tare range	-6kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	250x300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	580×320×360mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	9 / 10,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 3/H1

Maximum capacity [Max]
Minimum load
Readability [d]	1g
Tare range	-3kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	200×150mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	520×260×290mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	7 / 8,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 15/H2

Maximum capacity [Max]	15kg
Minimum load
Readability [d]	5g
Tare range	-15kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	250x300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	580×320×360mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	9 / 10,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

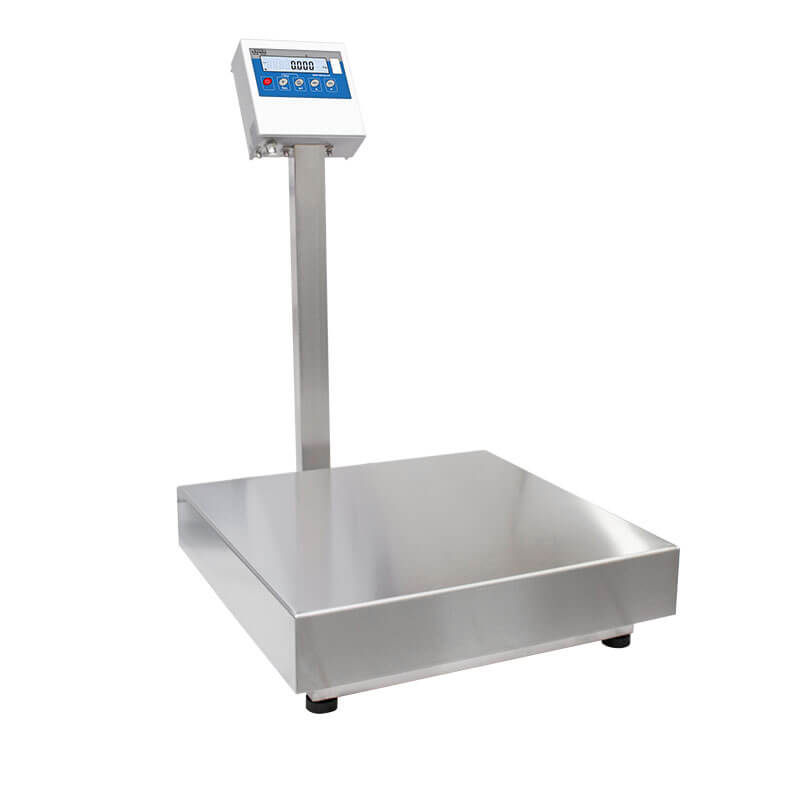

WPT /H Waterproof Scale With Protected Load Cell - WPT 15/H3

Maximum capacity [Max]	15kg
Minimum load
Readability [d]	5g
Tare range	-15kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	410×410mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 30/H3

Maximum capacity [Max]	30kg
Minimum load
Readability [d]	10g
Tare range	-30kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	410×410mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 15/H2

Maximum capacity [Max]
Minimum load
Readability [d]	5g
Tare range	-15kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	250x300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	580×320×360mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	9 / 10,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 60/H3

Maximum capacity [Max]	60kg
Minimum load
Readability [d]	20g
Tare range	-60kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	410×410mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

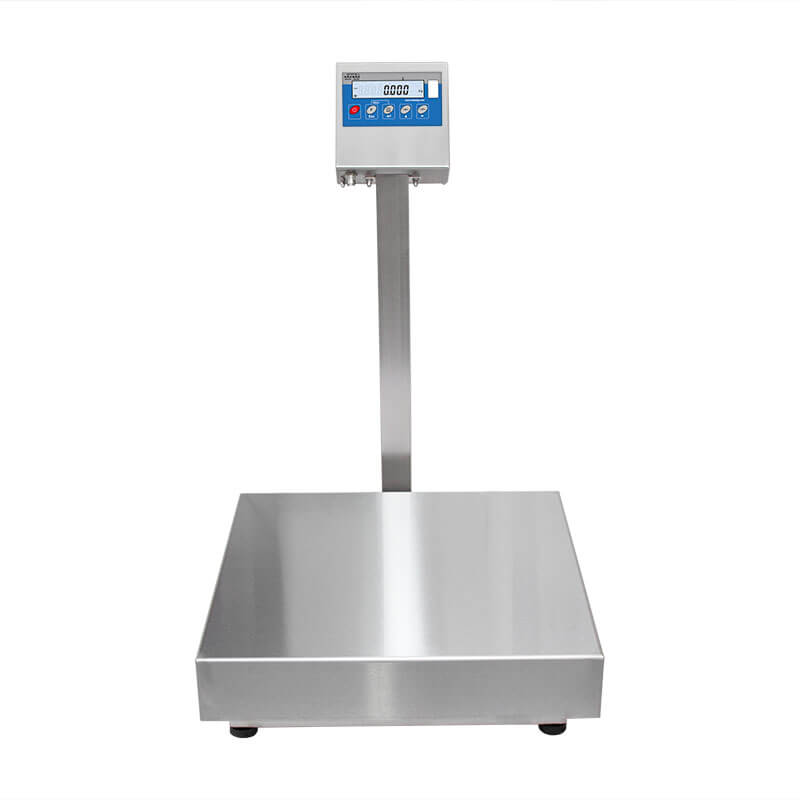

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H3

Maximum capacity [Max]	150kg
Minimum load
Readability [d]	50g
Tare range	-150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	410×410mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H4

Maximum capacity [Max]	150kg
Minimum load
Readability [d]	50g
Tare range	- 150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	500×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×600×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	23,5 / 25,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 60/H3/5

Maximum capacity [Max]	60kg
Minimum load
Readability [d]	20g
Tare range	-60kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	400×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H3/5

Maximum capacity [Max]	150kg
Minimum load
Readability [d]	50g
Tare range	-150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	400×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	670×510×330mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	15,5 / 17,3kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 60/H5

Maximum capacity [Max]	60kg
Minimum load
Readability [d]	20g
Tare range	-60kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	600×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×700×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	29,5 / 31,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H5

Maximum capacity [Max]	150kg
Minimum load
Readability [d]	50g
Tare range	- 150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	600×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×700×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	29,5 / 31,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 60/H5

Maximum capacity [Max]
Minimum load
Readability [d]	20g
Tare range	-60kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	600×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×700×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	29,5 / 31,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 300/H5

Maximum capacity [Max]	300kg
Minimum load
Readability [d]	100g
Tare range	- 300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	600×600mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×700×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	29,5 / 31,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H6

Maximum capacity [Max]	150kg
Minimum load
Readability [d]	50g
Tare range	- 150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	800×800mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	1160×820×340mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	42,5 / 45,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 150/H6

Maximum capacity [Max]
Minimum load
Readability [d]	50g
Tare range	- 150kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	800×800mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	1160×820×340mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	42,5 / 45,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 300/H6

Maximum capacity [Max]
Minimum load
Readability [d]	100g
Tare range	- 300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	800×800mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	1160×820×340mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	42,5 / 45,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 300/H6

Maximum capacity [Max]	300kg
Minimum load
Readability [d]	100g
Tare range	- 300kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	800×800mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	1160×820×340mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	42,5 / 45,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval

PRODUCT DATASHEET

WPT /H Waterproof Scale With Protected Load Cell - WPT 60/H4

Maximum capacity [Max]	60kg
Minimum load
Readability [d]	20g
Tare range	-60kg
Operating temperature	-10 ÷ +40°C
Weighing pan dimensions	500×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery
Display	LCD (backlit)
Communication interface	RS 232
Packaging dimensions	840×600×400mm
Atmospheric humidity	10÷85% RH no condensation
Construction
Net weight/gross weight	23,5 / 25,8kg
OIML Class	III
Operation time on batteries	45 h (average time)
Protection class	IP 67 construction, IP 68 (1h max)/69 indicator
Storage temperature
Verification scale interval
