Name: TMX MULTIFUNCTIONAL SCALES
SKU: R371
Availability: OutOfStock

PRODUCT DATASHEET

Please, use model selector above to see product datasheet.

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

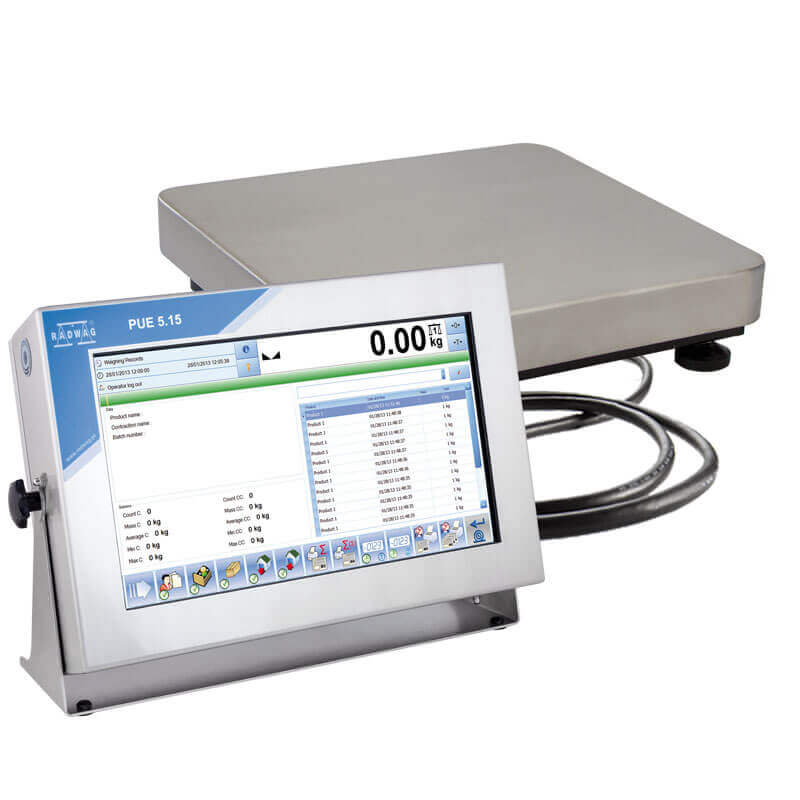

TMX MULTIFUNCTIONAL SCALES - TMX15C.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15IR.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15R.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	560×360×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19C.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

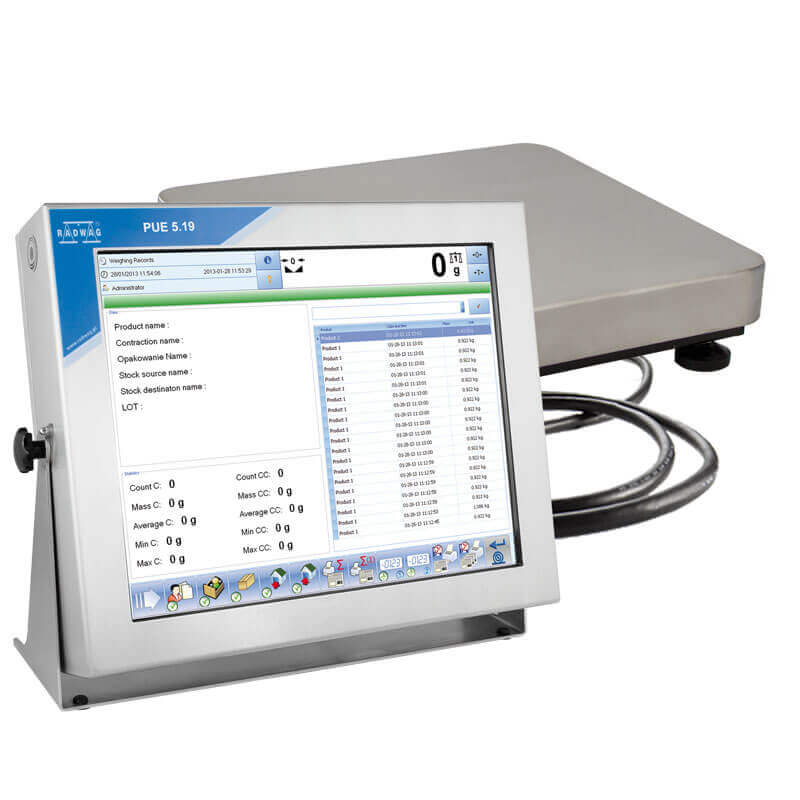

TMX MULTIFUNCTIONAL SCALES - TMX19IR.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19IR.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.15.F1.K

Maximum capacity [Max]	15kg
Minimum load	100g
Readability [d]	5g
Tare range	-15kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

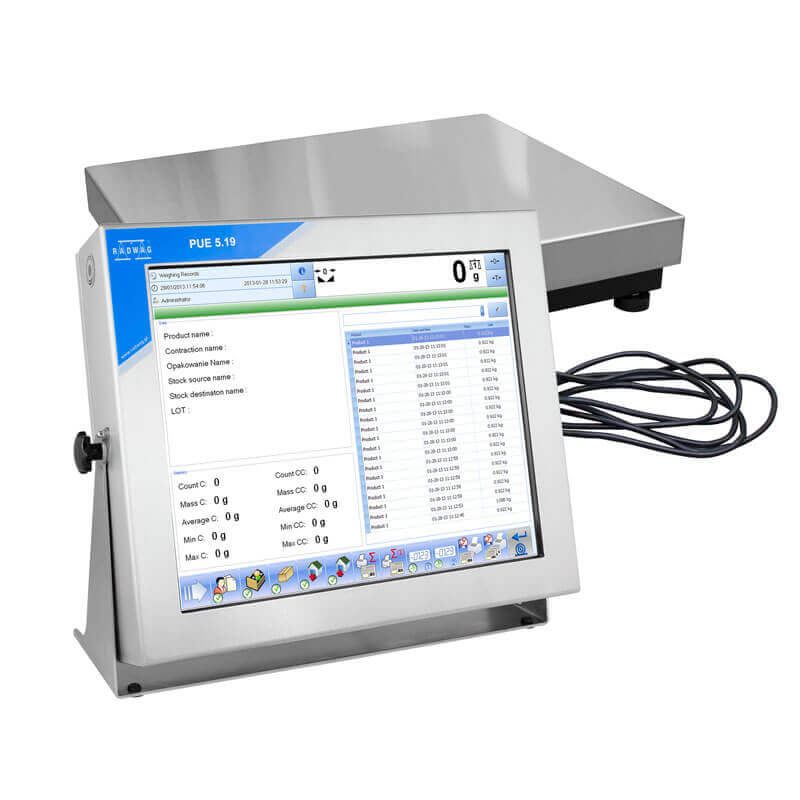

TMX MULTIFUNCTIONAL SCALES - TMX19R.150.C2.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.150.C3.K

Maximum capacity [Max]	150kg
Minimum load	1kg
Readability [d]	50g
Tare range	-150kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.30.C2.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.30.F1.K

Maximum capacity [Max]	30kg
Minimum load	200g
Readability [d]	10g
Tare range	-30kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.300.C2.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.300.C3.K

Maximum capacity [Max]	300kg
Minimum load	2kg
Readability [d]	100g
Tare range	-300kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	500×700mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.6.F1.K

Maximum capacity [Max]	6kg
Minimum load	40g
Readability [d]	2g
Tare range	-6kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	300×300mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX19R.60.C2.K

Maximum capacity [Max]	60kg
Minimum load	400g
Readability [d]	20g
Tare range	-60kg
Stabilization time
Operating temperature	0 - + 40°C
Weighing pan dimensions	400×500mm
Power supply	100 ÷ 240 V AC 50 ÷ 60 Hz
Display	LCD 15,6" (panel touchscreen)
Communication interface	4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit
Packaging dimensions
Adjustment
Net weight
Gross weight
Atmospheric humidity	10÷85% RH no condensation
Power consumption	45 W
Add weighing platform module	additional max. 3 pcs (metrological parameters as in the main weighing platform)
Construction
Controling device dimensions	590×430×240mm
Housing
Inputs/Outputs (option)	4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland)
Net weight/gross weight
OIML Class	III
Operation time on batteries
Protection class	IP 43 construction, IP 68 (1h max)/69 indicator
Verification scale interval
Weighing pan material

TMX MULTIFUNCTIONAL SCALES

PRODUCT SERIES

PRODUCT DESCRIPTION

PRODUCT DOCUMENTS

Technical Documentation

PRODUCT DATASHEET

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.15.F1.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.150.C2.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.150.C3.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.30.C2.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.30.F1.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.300.C2.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.300.C3.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.6.F1.K

PRODUCT DATASHEET

TMX MULTIFUNCTIONAL SCALES - TMX15C.60.C2.K
