PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.300.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.60.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15C.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.300.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.60.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15IR.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1 kg |
|---|
| Readability [d] | 50 g |
|---|
| Tare range | -150 kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 ÷ +40 °C |
|---|
| Weighing pan dimensions | 500×500 mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 15.6” graphic colour touchscreen |
|---|
| Communication interface | 2×RS232, 4×USB, RS485, Ethernet |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10% ÷ 85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240 mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN / 4OUT (2×ports M12 8P or 2×cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET

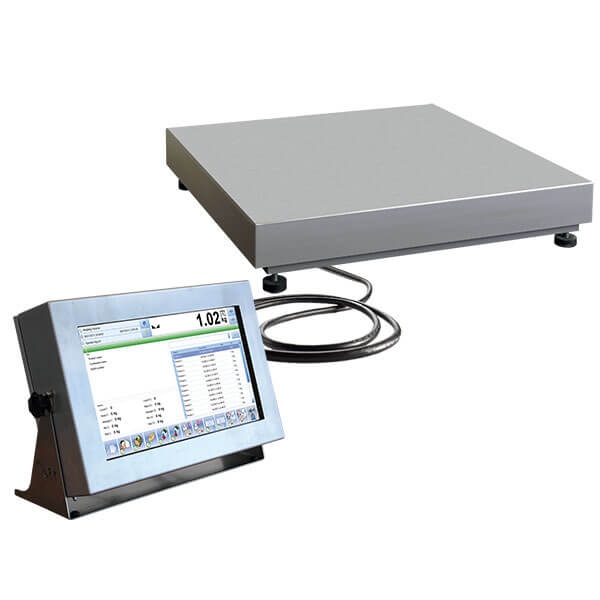

TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.300.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.60.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX15R.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 15,6" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.300.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.60.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19C.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.300.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19IR.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.15.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.15.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100 g |
|---|
| Readability [d] | 5 g |
|---|
| Tare range | -15 kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 ÷ +40 °C |
|---|
| Weighing pan dimensions | 410×410 mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
|---|
| Display | 19” graphic colour touchscreen |
|---|
| Communication interface | 2×RS232, 4×USB, RS485, Ethernet |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10% ÷ 85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240 mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN / 4OUT (2×ports M12 8P or 2×cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.150.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.150.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.150.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.150.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.150.H6.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 800×800mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.3.H1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 150×200mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.30.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 560×360×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.300.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.6.H2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 250×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.60.H3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 410×410mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.60.H3/5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 400×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.60.H4.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 500×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
PRODUCT DATASHEET
TMX H STAINLESS STEEL MULTIFUNCTIONAL SCALES - TMX19R.60.H5.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | 0 - + 40°C |
|---|
| Weighing pan dimensions | 600×600mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz |
|---|
| Display | LCD 19" (panel touchscreen) |
|---|
| Communication interface | 4 x USB 2.0; 2 x RS 232; RS 485; Ethernet 10/100/1000 Mbit |
|---|
| Packaging dimensions | |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | 45 W |
|---|
| Add weighing platform module | additional max. 3 pcs (metrological parameters as in the main weighing platform) |
|---|
| Construction | |
|---|
| Controling device dimensions | 590×430×240mm |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | 4IN/4OUT (2 × ports M12 8P or 2× cables fed through the cable gland) |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | |
|---|
| Protection class | IP 68 construction, IP 68 (1h max)/69 indicator |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | |
|---|
