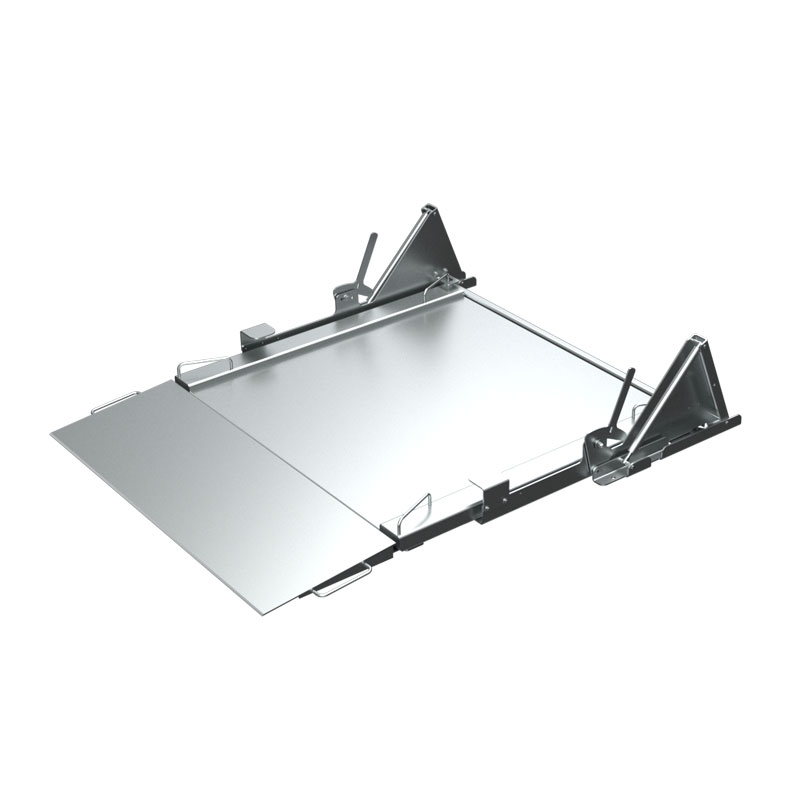

Stainless steel ramp platforms with LD lifting system

Code: 3763

Clear

PRODUCT SERIES

ImageSKUModelVerificationMaximum capacityReadabilityPan size
Stainless steel ramp platforms with LD lifting system - PL/4N/150/H1.LD
3763-WX-009-0239PL/4N/150/H1.LD150 kg50 g840×860 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/1500/H2.LD
3763-WX-009-0244PL/4N/1500/H2.LD1500 kg500 g1100×1200 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/1500/H3.LD
3763-WX-009-0247PL/4N/1500/H3.LD1500 kg500 g1200×1500 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/1500/H4.LD
3763-WX-009-0250PL/4N/1500/H4.LD1500 kg500 g1500×1500 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/300/H1.LD
3763-WX-009-0240PL/4N/300/H1.LD300 kg100 g840×860 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/300/H2.LD
3763-WX-009-0242PL/4N/300/H2.LD300 kg100 g1100×1200 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/300/H3.LD
3763-WX-009-0245PL/4N/300/H3.LD300 kg100 g1200×1500 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/300/H4.LD
3763-WX-009-0248PL/4N/300/H4.LD300 kg100 g1500×1500 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/600/H1.LD
3763-WX-009-0241PL/4N/600/H1.LD600 kg200 g840×860 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/600/H2.LD
3763-WX-009-0243PL/4N/600/H2.LD600 kg200 g1100×1200 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/600/H3.LD
3763-WX-009-0246PL/4N/600/H3.LD600 kg200 g1200×1500 mm
Stainless steel ramp platforms with LD lifting system - PL/4N/600/H4.LD
3763-WX-009-0249PL/4N/600/H4.LD600 kg200 g1500×1500 mm

Stainless steel 4-load-cell ramp platforms, equipped with LD4N platform lifting system useful for maintenance purposes.
