PUE C/31 INDICATOR
Code: R805
PRODUCT DESCRIPTION
Please, use model selector above to see product description.
PRODUCT DOCUMENTS
Technical Documentation
PRODUCT DATASHEET
Please, use model selector above to see product datasheet.
PRODUCT DATASHEET
PUE C/31 INDICATOR - PUE C/31
Operating temperature | -10 ÷ +40°C |
---|---|
Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
Display | LCD (backlit) |
Communication interface | RS 232 |
Packaging dimensions | 220×190×90mm |
Database capacity | |
Atmospheric humidity | 10÷85% RH no condensation |
Power consumption | |
Additional DP4 A/C conv mod | |
Additional LCD display | LCD (option) |
Add weighing platform module | |
Analog output module (option) | |
Chipset | |
Connection of load cells | 4 or 6 wires + shield |
Data memory | |
Ethernet | |
Ethernet module (option) | |
External buttons (option) | |
Housing | ABS plastic |
Input/Output module (option) | |
Inputs/Outputs | |
Inputs/Outputs (option) | |
Keypad | microswitch |
Load cell excitation voltage | 5V DC |
Max number of platforms | |
Maximum increase of signal | 19,2 mV |
Maximum load cell impedance | 1200 Ω |
Max qty of divisions conv | 838 860 ×10 |
Max qty of verific units | 6000 e |
Max voltage/verific unit | 3,2 µV |
Memory | |
Minimum load cell impedance | 80 Ω |
Min voltage/verification unit | 1,0 µV |
Multiple range | 1 or 2 ranges |
Net weight/gross weight | 0,5/0,8kg |
OIML Class | |
Operating system | |
Operation time on batteries | 35 h (average time) |
Optional power supply | 10,5 ÷15V DC Imax = 600mA, and battery |
Optoisolated Interfaces | |
Processor | |
Profibus DP Interface | |
Protection class | IP 43 |
Relay module (option) | |
RS 232 | |
Serial Interface | |
Touch panel | |
USB | |
USB Interface |
PRODUCT DATASHEET
PUE C/31 INDICATOR - PUE C/31H
Operating temperature | -10 ÷ +40°C |
---|---|
Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
Display | LCD (backlit) |
Communication interface | RS 232 |
Packaging dimensions | 300×250×140mm |
Database capacity | |
Atmospheric humidity | 10÷85% RH no condensation |
Power consumption | |
Additional DP4 A/C conv mod | |
Additional LCD display | LCD (option) |
Add weighing platform module | |
Analog output module (option) | |
Chipset | |
Connection of load cells | 4 or 6 wires + shield |
Data memory | |
Ethernet | |
Ethernet module (option) | |
External buttons (option) | |
Housing | stainless steel |
Input/Output module (option) | |
Inputs/Outputs | |
Inputs/Outputs (option) | |
Keypad | microswitch |
Load cell excitation voltage | 5V DC |
Max number of platforms | |
Maximum increase of signal | 19,2 mV |
Maximum load cell impedance | 1200 Ω |
Max qty of divisions conv | 838 860 ×10 |
Max qty of verific units | 6000 e |
Max voltage/verific unit | 3,2 µV |
Memory | |
Minimum load cell impedance | 80 Ω |
Min voltage/verification unit | 1,0 µV |
Multiple range | 1 or 2 ranges |
Net weight/gross weight | 3,5/3,8kg |
OIML Class | |
Operating system | |
Operation time on batteries | 45 h (average time) |
Optional power supply | |
Optoisolated Interfaces | |
Processor | |
Profibus DP Interface | |
Protection class | IP 68 (1h max)/69 |
Relay module (option) | |
RS 232 | |
Serial Interface | |
Touch panel | |
USB | |
USB Interface |
PRODUCT DATASHEET

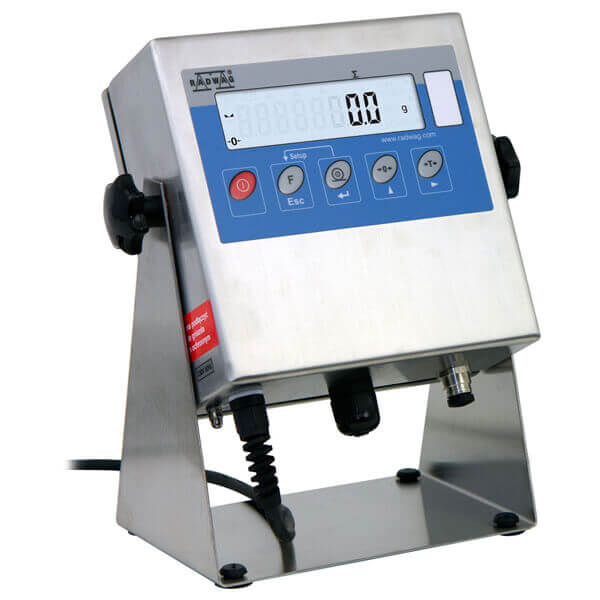

PUE C/31 INDICATOR - PUE C/31H/Z
Operating temperature | -10 ÷ +40°C |
---|---|
Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC and battery |
Display | LCD (backlit) |
Communication interface | RS 232 |
Packaging dimensions | 300×250×140mm |
Database capacity | |
Atmospheric humidity | 10÷85% RH no condensation |
Power consumption | |
Additional DP4 A/C conv mod | |
Additional LCD display | LCD (option) |
Add weighing platform module | |
Analog output module (option) | |
Chipset | |
Connection of load cells | 4 or 6 wires + shield |
Data memory | |
Ethernet | |
Ethernet module (option) | |
External buttons (option) | |
Housing | stainless steel |
Input/Output module (option) | |
Inputs/Outputs | |
Inputs/Outputs (option) | |
Keypad | microswitch |
Load cell excitation voltage | 5V DC |
Max number of platforms | |
Maximum increase of signal | 19,2 mV |
Maximum load cell impedance | 1200 Ω |
Max qty of divisions conv | 838 860 ×10 |
Max qty of verific units | 6000 e |
Max voltage/verific unit | 3,2 µV |
Memory | |
Minimum load cell impedance | 80 Ω |
Min voltage/verification unit | 1,0 µV |
Multiple range | 1 or 2 ranges |
Net weight/gross weight | 3,5/3,8kg |
OIML Class | |
Operating system | |
Operation time on batteries | 45 h (average time) |
Optional power supply | 10-18V DC Imax=600mA |
Optoisolated Interfaces | |
Processor | |
Profibus DP Interface | |
Protection class | IP 68 (1h max)/69 |
Relay module (option) | |
RS 232 | |
Serial Interface | |
Touch panel | |
USB | |
USB Interface |
