PRODUCT DATASHEET

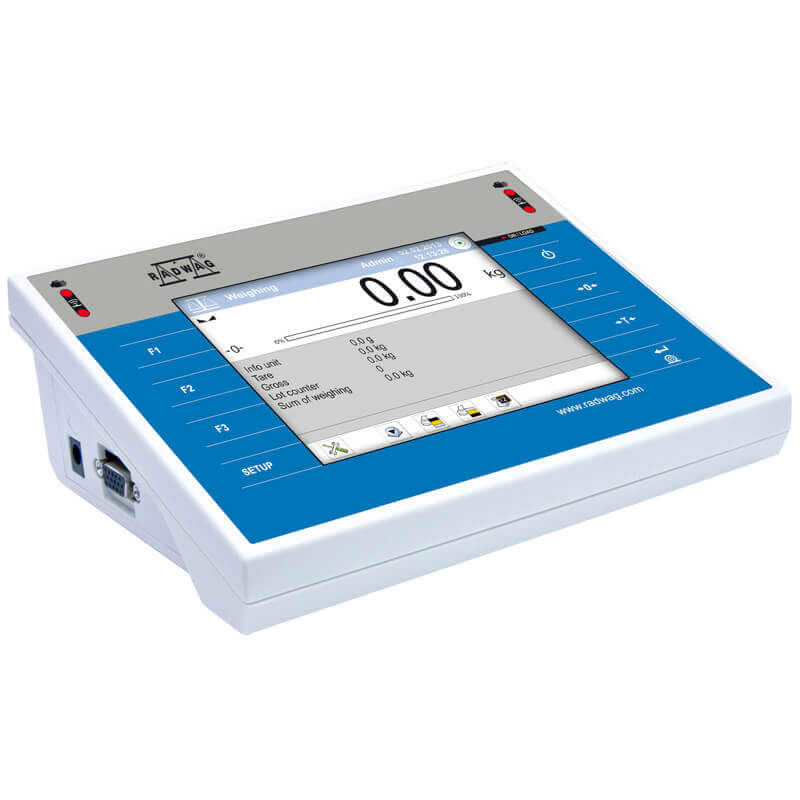

PUE 7.1 TERMINAL - PUE 7.1
| Operating temperature | -10 ÷ +40°C |
|---|
| Power supply | 10 – 28 VDC |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Packaging dimensions | |
|---|
| Database capacity | 8 GB (micro SD) |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | max. 1 A |
|---|
| Additional DP4 A/C conv mod | 1 (option) |
|---|
| Additional LCD display | |
|---|
| Add weighing platform module | |
|---|
| Analog output module (option) | |
|---|
| Chipset | |
|---|
| Connection of load cells | |
|---|
| Data memory | |
|---|
| Ethernet | |
|---|
| Ethernet module (option) | |
|---|
| External buttons (option) | |
|---|
| Housing | ABS plastic |
|---|
| Input/Output module (option) | |
|---|
| Inputs/Outputs | |
|---|
| Inputs/Outputs (option) | |
|---|
| Keypad | panel touchscreen |
|---|
| Load cell excitation voltage | 5V DC |
|---|
| Max number of platforms | 2 |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of divisions conv | |
|---|
| Max qty of verific units | 6000 |
|---|
| Max voltage/verific unit | 3,25 µV |
|---|
| Memory | RAM 256 MB |
|---|
| Minimum load cell impedance | 50 Ω |
|---|
| Min voltage/verification unit | 0,4 µV |
|---|
| Multiple range | |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | III |
|---|
| Operating system | Windows CE 7 |
|---|
| Operation time on batteries | |
|---|
| Optional power supply | |
|---|
| Optoisolated Interfaces | |
|---|
| Processor | 2×1 GHz |
|---|
| Profibus DP Interface | |
|---|
| Protection class | IP 43 |
|---|
| Relay module (option) | |
|---|
| RS 232 | |
|---|
| Serial Interface | |
|---|
| Touch panel | |
|---|
| USB | |
|---|
| USB Interface | |
|---|
PRODUCT DATASHEET

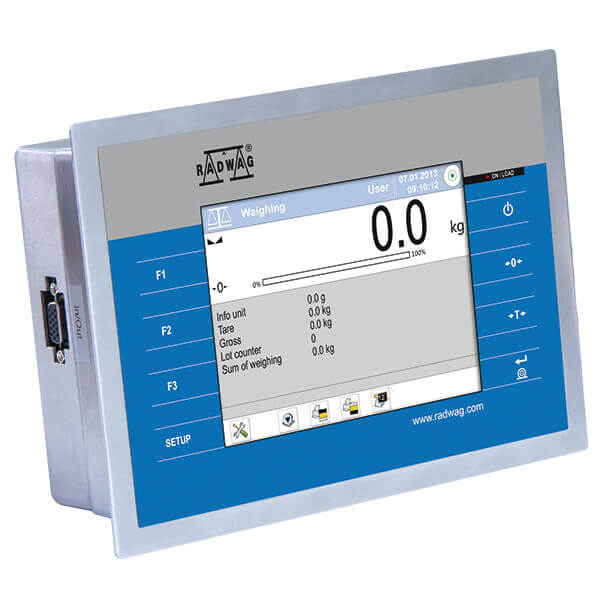

PUE 7.1 TERMINAL - PUE 7.1P
| Operating temperature | -10 ÷ +40°C |
|---|
| Power supply | 10 – 28 VDC |
|---|
| Display | TFT 5,7 |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs |
|---|
| Packaging dimensions | |
|---|
| Database capacity | |
|---|
| Atmospheric humidity | 10÷85% RH no condensation |
|---|
| Power consumption | |
|---|
| Additional DP4 A/C conv mod | |
|---|
| Additional LCD display | |
|---|
| Add weighing platform module | Moduł dodatkowego przetwornika A/C DP4 |
|---|
| Analog output module (option) | |
|---|
| Chipset | |
|---|
| Connection of load cells | |
|---|
| Data memory | |
|---|
| Ethernet | |
|---|
| Ethernet module (option) | |
|---|
| External buttons (option) | |
|---|
| Housing | stainless steel |
|---|
| Input/Output module (option) | |
|---|
| Inputs/Outputs | |
|---|
| Inputs/Outputs (option) | |
|---|
| Keypad | panel touchscreen |
|---|
| Load cell excitation voltage | 5V DC |
|---|
| Max number of platforms | 2 |
|---|
| Maximum increase of signal | 19,5 mV |
|---|
| Maximum load cell impedance | 1200 Ω |
|---|
| Max qty of divisions conv | |
|---|
| Max qty of verific units | |
|---|
| Max voltage/verific unit | |
|---|
| Memory | RAM 256 MB |
|---|
| Minimum load cell impedance | 50 Ω |
|---|
| Min voltage/verification unit | |
|---|
| Multiple range | |
|---|
| Net weight/gross weight | |
|---|
| OIML Class | |
|---|
| Operating system | Windows CE 7 |
|---|
| Operation time on batteries | |
|---|
| Optional power supply | |
|---|
| Optoisolated Interfaces | |
|---|
| Processor | 2×1 GHz |
|---|
| Profibus DP Interface | |
|---|
| Protection class | front IP 66/67, construction IP 32 |
|---|
| Relay module (option) | |
|---|
| RS 232 | |
|---|
| Serial Interface | |
|---|
| Touch panel | |
|---|
| USB | |
|---|
| USB Interface | |
|---|
