HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales

Code: 3647

Clear

PRODUCT SERIES

ImageSKUModelVerificationMaximum capacityReadabilityPan size

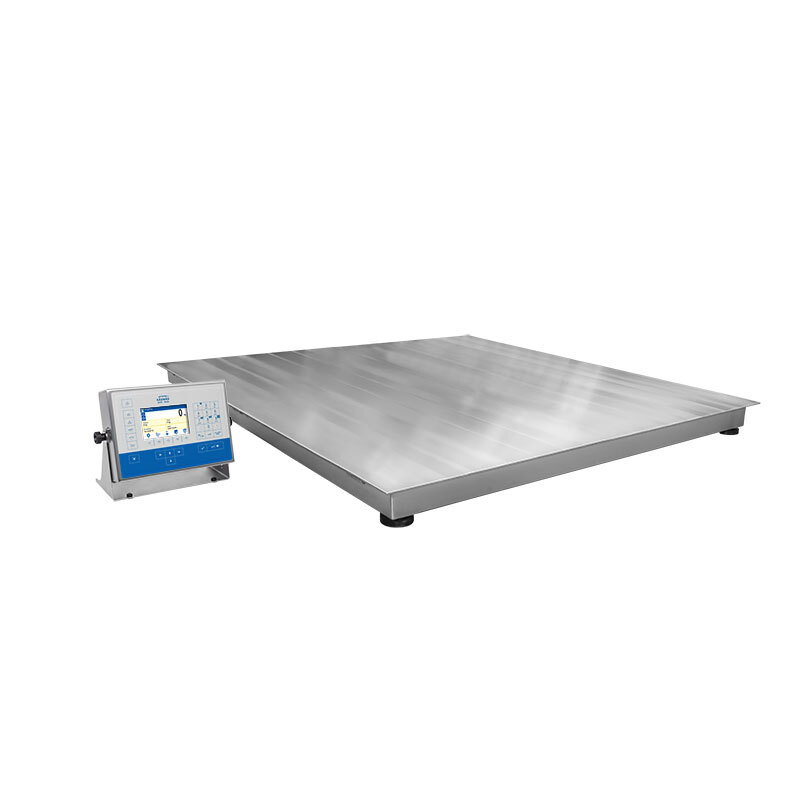

HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.150.H6
3647-WW-009-0002HX5.EX-1.4.150.H6150 kg50 g800×800 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.150.H7
3647-WW-009-0005HX5.EX-1.4.150.H7150 kg50 g1000×1000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.1500.H10
3647-WW-009-0023HX5.EX-1.4.1500.H101500 kg500 g1500×2000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.1500.H7
3647-WW-009-0008HX5.EX-1.4.1500.H71500 kg500 g1000×1000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.1500.H8
3647-WW-009-0011HX5.EX-1.4.1500.H81500 kg500 g1200×1200 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.1500.H8/9
3647-WW-009-0015HX5.EX-1.4.1500.H8/91500 kg500 g1200×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.1500.H9
3647-WW-009-0019HX5.EX-1.4.1500.H91500 kg500 g1500×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.300.H6
3647-WW-009-0003HX5.EX-1.4.300.H6300 kg100 g800×800 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.300.H7
3647-WW-009-0006HX5.EX-1.4.300.H7300 kg100 g1000×1000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.300.H8
3647-WW-009-0009HX5.EX-1.4.300.H8300 kg100 g1200×1200 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.300.H8/9
3647-WW-009-0013HX5.EX-1.4.300.H8/9300 kg100 g1200×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.300.H9
3647-WW-009-0017HX5.EX-1.4.300.H9300 kg100 g1500×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.3000.H10
3647-WW-009-0024HX5.EX-1.4.3000.H103000 kg1000 g1500×2000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.3000.H8
3647-WW-009-0012HX5.EX-1.4.3000.H83000 kg1000 g1200×1200 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.3000.H8/9
3647-WW-009-0016HX5.EX-1.4.3000.H8/93000 kg1000 g1200×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.3000.H9
3647-WW-009-0020HX5.EX-1.4.3000.H93000 kg1000 g1500×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.60.H6
3647-WW-009-0001HX5.EX-1.4.60.H660 kg20 g800×800 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H10
3647-WW-009-0022HX5.EX-1.4.600.H10600 kg200 g1500×2000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H6
3647-WW-009-0004HX5.EX-1.4.600.H6600 kg200 g800×800 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H7
3647-WW-009-0007HX5.EX-1.4.600.H7600 kg200 g1000×1000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H8
3647-WW-009-0010HX5.EX-1.4.600.H8600 kg200 g1200×1200 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H8/9
3647-WW-009-0014HX5.EX-1.4.600.H8/9600 kg200 g1200×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.600.H9
3647-WW-009-0018HX5.EX-1.4.600.H9600 kg200 g1500×1500 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.6000.H10
3647-WW-009-0025HX5.EX-1.4.6000.H106000 kg2000 g1500×2000 mm
HX5.EX-1.4 H Stainless Steel 4-Load-Cell Platform Scales - HX5.EX-1.4.6000.H9
3647-WW-009-0021HX5.EX-1.4.6000.H96000 kg2000 g1500×1500 mm
The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
Power supply types:
  • PM01.EX-1 – power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
  • PM01.EX-2 – power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.
