Name: H315 HR Waterproof Platform Scales
SKU: 3909
Availability: InStock

PRODUCT SERIES

SKU	Model	Maximum capacity	Readability	Pan size
3909-WP-124-0063	H315.15.HR2.M	15 kg	5 g	250×300 mm
3909-WP-124-1049	H315.3/6.HR2.M	3/6 kg	1/2 g	250×300 mm
3909-WP-124-0059	H315.3.HR2.M	3 kg	1 g	250×300 mm
3909-WP-124-1054	H315.15/30.HR2.K	15/30 kg	5/10 g	250×300 mm
3909-WP-124-1053	H315.15/30.HR2.M	15/30 kg	5/10 g	250×300 mm
3909-WP-124-1060	H315.15/30.HR3.K	15/30 kg	5/10 g	410×410 mm
3909-WP-124-1059	H315.15/30.HR3.M	15/30 kg	5/10 g	410x410 mm
3909-WP-124-0064	H315.15.HR2.K	15 kg	5 g	250×300 mm
3909-WP-124-0086	H315.15.HR3/5.K	15 kg	5 g	400×600 mm
3909-WP-124-0085	H315.15.HR3/5.M	15 kg	5 g	400×600 mm
3909-WP-124-0070	H315.15.HR3.K	15 kg	5 g	410×410 mm
3909-WP-124-0069	H315.15.HR3.M	15 kg	5 g	410x410 mm
3909-WP-124-0078	H315.15.HR4.K	15 kg	5 g	500×500 mm
3909-WP-124-0077	H315.15.HR4.M	15 kg	5 g	500×500 mm
3909-WP-124-0094	H315.15.HR5.K	15 kg	5 g	600×600 mm
3909-WP-124-0093	H315.15.HR5.M	15 kg	5 g	600×600 mm
3909-WP-124-0092	H315.150.HR3/5.K	150 kg	50 g	400×600 mm
3909-WP-124-0091	H315.150.HR3/5.M	150 kg	50 g	400×600 mm
3909-WP-124-0076	H315.150.HR3.K	150 kg	50 g	410x410 mm
3909-WP-124-0075	H315.150.HR3.M	150 kg	50 g	410x410 mm
3909-WP-124-0084	H315.150.HR4.K	150 kg	50 g	500×500 mm
3909-WP-124-0083	H315.150.HR4.M	150 kg	50 g	500×500 mm
3909-WP-124-0100	H315.150.HR5.K	150 kg	50 g	600×600 mm
3909-WP-124-0099	H315.150.HR5.M	150 kg	50 g	600×600 mm
3909-WP-124-1050	H315.3/6.HR2.K	3/6 kg	1/2 g	250×300 mm
3909-WP-124-1056	H315.3/6.HR3.K	3/6 kg	1/2 g	410x410 mm
3909-WP-124-1055	H315.3/6.HR3.M	3/6 kg	1/2 g	410x410 mm
3909-WP-124-0060	H315.3.HR2.K	3 kg	1 g	250×300 mm
3909-WP-124-1070	H315.30/60.HR3/5.K	30/60 kg	10/20 g	400×600 mm
3909-C8G	H315.30/60.HR3/5.M	30/60 kg	10/20 g	400×600 mm
3909-62T	H315.30/60.HR3.K	30/60 kg	10/20 g	410x410 mm
3909-WP-124-1061	H315.30/60.HR3.M	30/60 kg	10/20 g	410x410 mm
3909-B4B	H315.30/60.HR4.K	30/60 kg	10/20 g	500×500 mm
3909-WP-124-1066	H315.30/60.HR4.K	30/60 kg	10/20 g	500×500 mm
3909-1IC	H315.30/60.HR4.M	30/60 kg	10/20 g	500×500 mm
3909-WP-124-1065	H315.30/60.HR4.M	30/60 kg	10/20 g	500×500 mm
3909-WP-124-1074	H315.30/60.HR5.K	30/60 kg	10/20 g	600×600 mm
3909-WP-124-1073	H315.30/60.HR5.M	30/60 kg	10/20 g	600×600 mm
3909-WP-124-0066	H315.30.HR2.K	30 kg	10 g	250×300 mm
3909-WP-124-0065	H315.30.HR2.M	30 kg	10 g	250×300 mm
3909-WP-124-0088	H315.30.HR3/5.K	30 kg	10 g	400×600 mm
3909-WP-124-0087	H315.30.HR3/5.M	30 kg	10 g	400×600 mm
3909-LDJ	H315.30.HR3.K	30 kg	10 g	410x410 mm
3909-WP-124-0072	H315.30.HR3.K	30 kg	10 g	410x410 mm
3909-WP-124-0071	H315.30.HR3.M	30 kg	10 g	410x410 mm
3909-U2T	H315.30.HR3.M	30 kg	10 g	410x410 mm
3909-WP-124-0080	H315.30.HR4.K	30 kg	10 g	500×500 mm
3909-WP-124-0079	H315.30.HR4.M	30 kg	10 g	500×500 mm
3909-WP-124-0096	H315.30.HR5.K	30 kg	10 g	600×600 mm
3909-WP-124-0095	H315.30.HR5.M	30 kg	10 g	600×600 mm
3909-WP-124-1052	H315.6/15.HR2.K	6/15 kg	2/5 g	250×300 mm
3909-WP-124-1051	H315.6/15.HR2.M	6/15 kg	2/5 g	250×300 mm
3909-WP-124-0062	H315.6.HR2.K	6 kg	2 g	250×300 mm
3909-WP-124-0061	H315.6.HR2.M	6 kg	2 g	250×300 mm
3909-WP-124-0068	H315.6.HR3.K	6 kg	2 g	410x410 mm
3909-WP-124-0067	H315.6.HR3.M	6 kg	2 g	410x410 mm
3909-WP-124-1072	H315.60/150.HR3/5.K	60/150 kg	20/50 g	400×600 mm
3909-WP-124-1071	H315.60/150.HR3/5.M	60/150 kg	20/50 g	400×600 mm
3909-WP-124-1064	H315.60/150.HR3.K	60/150 kg	20/50 g	410x410 mm
3909-WP-124-1063	H315.60/150.HR3.M	60/150 kg	20/50 g	410x410 mm
3909-WP-124-1068	H315.60/150.HR4.K	60/150 kg	20/50 g	500×500 mm
3909-WP-124-1067	H315.60/150.HR4.M	60/150 kg	20/50 g	500×500 mm
3909-WP-124-1076	H315.60/150.HR5.K	60/150 kg	20/50 g	600×600 mm
3909-WP-124-1075	H315.60/150.HR5.M	60/150 kg	20/50 g	600×600 mm
3909-WP-124-0090	H315.60.HR3/5.K	60 kg	20 g	400×600 mm
3909-WP-124-0089	H315.60.HR3/5.M	60 kg	20 g	400×600 mm
3909-WP-124-0074	H315.60.HR3.K	60 kg	20 g	410x410 mm
3909-WP-124-0073	H315.60.HR3.M	60 kg	20 g	410x410 mm
3909-WP-124-0082	H315.60.HR4.K	60 kg	20 g	500×500 mm
3909-WP-124-0081	H315.60.HR4.M	60 kg	20 g	500×500 mm
3909-WP-124-0098	H315.60.HR5.K	60 kg	20 g	600×600 mm
3909-WP-124-0097	H315.60.HR5.M	60 kg	20 g	600×600 mm

Application:

Waterproof platform scales H315/HR series is designed for operation in locations with high humidity or direct contact with water. The scales is easily used in areas with no access to power supply from mains, as it features an internal rechargeable accumulator.

Design:

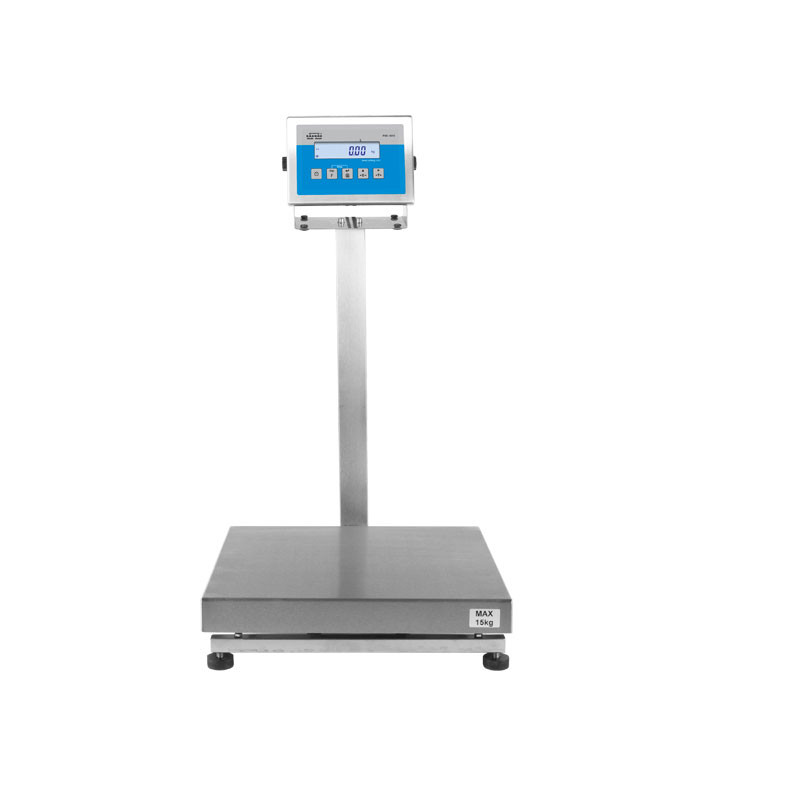

Single load cell stainless steel platform scales H315 HR series is based on an indicator PUE H315 series. The indicator features large backlit LCD display and function buttons for easy operation. The indicator is installed on a pillar for easy readout of measurement result. Optionally, the scales is offered with indicator installed on a cable for mounting it on a wall.

The weighing platform structure is made of stainless steel class AISI 316 with a stainless steel load cell providing the highest IP rating of 68. The scales features RS 232 interface, and optionally an additional display socket. The scales is powered from mains or internal rechargeable accumulator. Optionally, the scales can be powered from mains – 110÷120VAC 60Hz (non-standard factory option).
