H315 4H Stainless Steel Platform Scales

Code: 870

Clear

PRODUCT SERIES

ImageSKUModelVerificationMaximum capacityReadabilityPan size
H315 4H Stainless Steel Platform Scales - H315.4.150/300.H6
870-WP-232-1001H315.4.150/300.H6150/300 kg50/100 g800×800 mm
H315 4H Stainless Steel Platform Scales - H315.4.150.H6
870-WP-232-0001H315.4.150.H6150 kg50 g800×800 mm
H315 4H Stainless Steel Platform Scales - H315.4.150.H7
870-WP-232-0004H315.4.150.H7150 kg50 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500/3000.H10
870-WP-232-1012H315.4.1500/3000.H101500/3000 kg500/1000 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500/3000.H8/9
870-WP-232-1008H315.4.1500/3000.H8/91500/3000 kg500/1000 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500/3000.H8
870-WP-232-1006H315.4.1500/3000.H81500/3000 kg500/1000 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500/3000.H9
870-WP-232-1010H315.4.1500/3000.H91500/3000 kg500/1000 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500.H10
870-WP-232-0022H315.4.1500.H101500 kg500 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500.H7
870-WP-232-0007H315.4.1500.H71500 kg500 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500.H8/9
870-WP-232-0014H315.4.1500.H8/91500 kg500 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500.H8
870-WP-232-0010H315.4.1500.H81500 kg500 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.1500.H9
870-WP-232-0018H315.4.1500.H91500 kg500 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.300/600.H6
870-WP-232-1002H315.4.300/600.H6300/600 kg100/200 g800×800 mm
H315 4H Stainless Steel Platform Scales - H315.4.300/600.H7
870-WP-232-1003H315.4.300/600.H7300/600 kg100/200 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.300.H6
870-WP-232-0002H315.4.300.H6300 kg100 g800×800 mm
H315 4H Stainless Steel Platform Scales - H315.4.300.H7
870-WP-232-0005H315.4.300.H7300 kg100 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.300.H8/9
870-WP-232-0012H315.4.300.H8/9300 kg100 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.300.H8
870-WP-232-0008H315.4.300.H8300 kg100 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.300.H9
870-WP-232-0016H315.4.300.H9300 kg100 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000/6000.H10
870-WP-232-1013H315.4.3000/6000.H103000/6000 kg1000/2000 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000/6000.H9
870-WP-232-1011H315.4.3000/6000.H93000/6000 kg1000/2000 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000.H10
870-WP-232-0023H315.4.3000.H103000 kg1000 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000.H8/9
870-WP-232-0015H315.4.3000.H8/93000 kg1000 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000.H8
870-WP-232-0011H315.4.3000.H83000 kg1000 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.3000.H9
870-WP-232-0019H315.4.3000.H93000 kg1000 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.600/1500.H7
870-WP-232-1004H315.4.600/1500.H7600/1500 kg200/500 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.600/1500.H8/9
870-WP-232-1007H315.4.600/1500.H8/9600/1500 kg200/500 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.600/1500.H8
870-WP-232-1005H315.4.600/1500.H8600/1500 kg200/500 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.600/1500.H9
870-WP-232-1009H315.4.600/1500.H9600/1500 kg200/500 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H10
870-WP-232-0021H315.4.600.H10600 kg200 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H6
870-WP-232-0003H315.4.600.H6600 kg200 g800×800 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H7
870-WP-232-0006H315.4.600.H7600 kg200 g1000×1000 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H8/9
870-WP-232-0013H315.4.600.H8/9600 kg200 g1200×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H8
870-WP-232-0009H315.4.600.H8600 kg200 g1200×1200 mm
H315 4H Stainless Steel Platform Scales - H315.4.600.H9
870-WP-232-0017H315.4.600.H9600 kg200 g1500×1500 mm
H315 4H Stainless Steel Platform Scales - H315.4.6000.H10
870-WP-232-0024H315.4.6000.H106000 kg2000 g1500×2000 mm
H315 4H Stainless Steel Platform Scales - H315.4.6000.H9
870-WP-232-0020H315.4.6000.H96000 kg2000 g1500×1500 mm

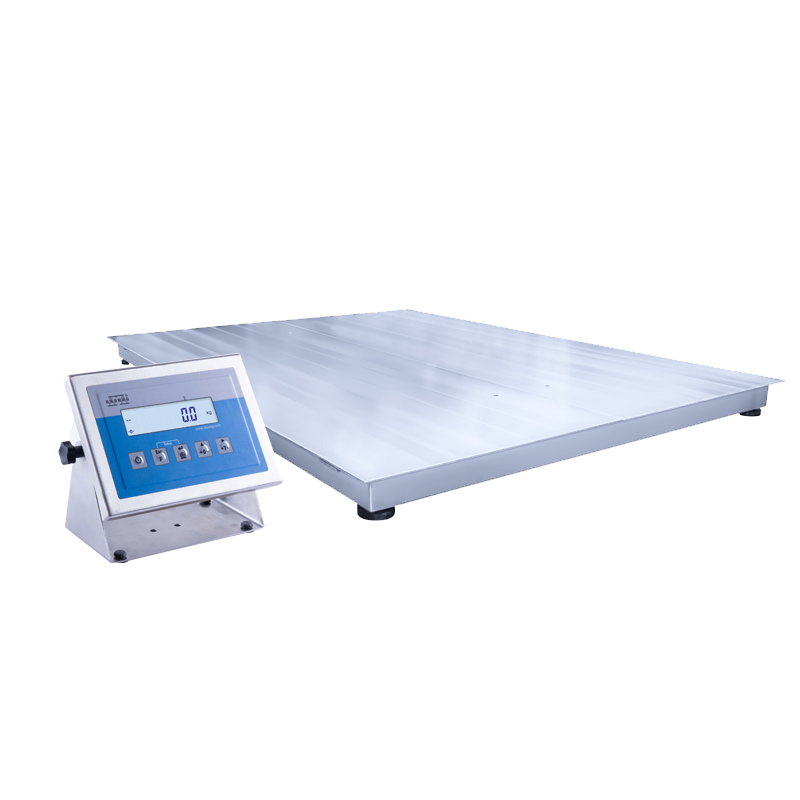

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on the weighing platform. The platform scales H315/4H series is fully made of stainless steel profiles with stainless steel weighing platform. The H315/4H series comprises a system of 4 load cell that are connected to an indicator PUE H315 series in stainless steel housing. The indicator features backlit LCD display and function buttons.

The weighing platform and the indicator are connected through a long cable enabling hanging the indicator on a wall.
The scale is powered from mains, RS 232 interface comes standard.

Scales is available in dual range version on surcharge.
