PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.1,5.F1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 10g |
|---|
| Readability [d] | 0,5g |
|---|
| Tare range | -1,5kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET

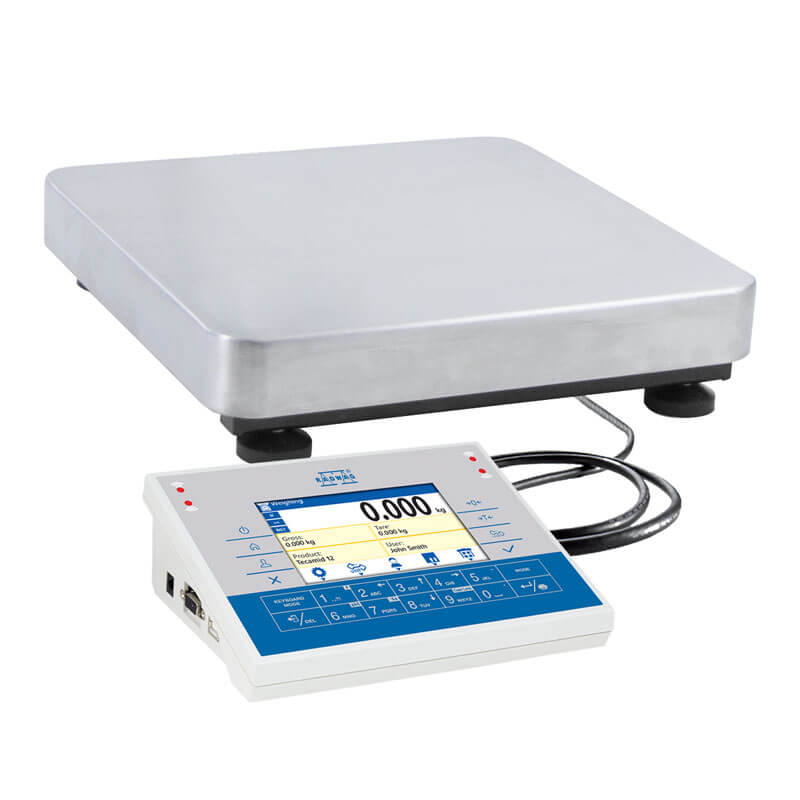

C32.K MULTIFUNCTIONAL SCALES - C32.3.F1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 20g |
|---|
| Readability [d] | 1g |
|---|
| Tare range | -3kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.6.F1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 40g |
|---|
| Readability [d] | 2g |
|---|
| Tare range | -6kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.15.F1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET

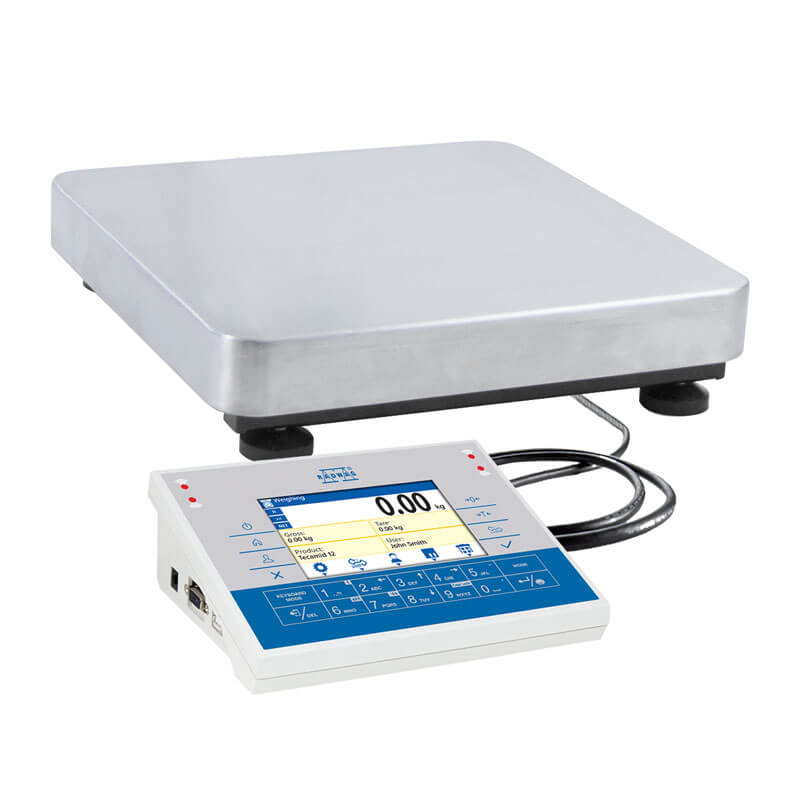

C32.K MULTIFUNCTIONAL SCALES - C32.30.F1.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 300×300mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 570×390×170mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 5,3 / 6,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.15.C2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×400mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.30.C2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×400mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.60.C2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×400mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.150.C2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×400mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.300.C2.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 500×400mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 720×620×210mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 11,1 / 13,1kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.15.C3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 100g |
|---|
| Readability [d] | 5g |
|---|
| Tare range | -15kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 700×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 21,7 / 25,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.30.C3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 200g |
|---|
| Readability [d] | 10g |
|---|
| Tare range | -30kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 700×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 21,7 / 25,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.60.C3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 400g |
|---|
| Readability [d] | 20g |
|---|
| Tare range | -60kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 700×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 21,7 / 25,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET

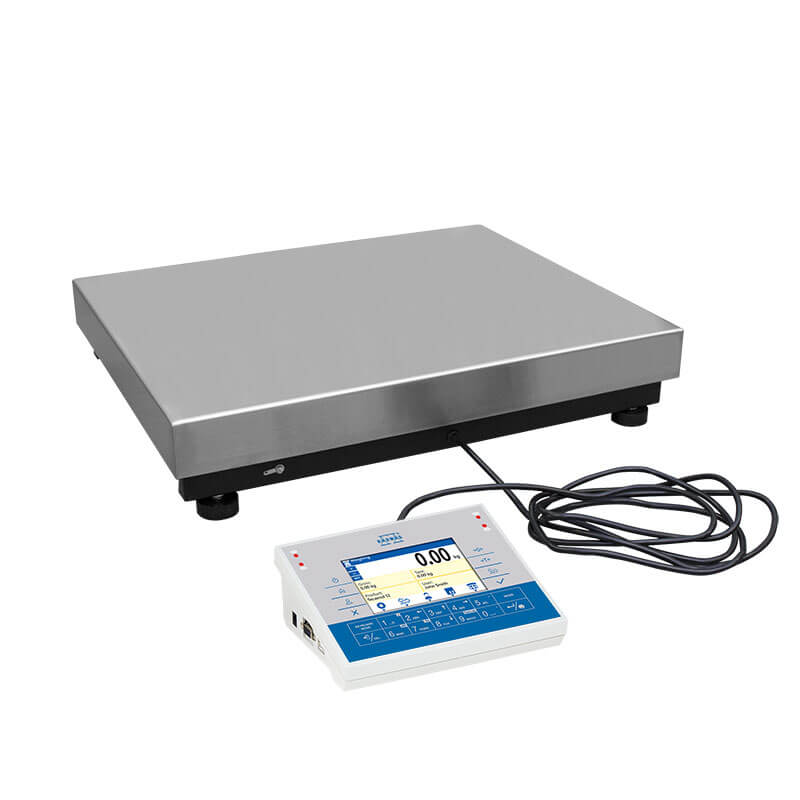

C32.K MULTIFUNCTIONAL SCALES - C32.150.C3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 1kg |
|---|
| Readability [d] | 50g |
|---|
| Tare range | -150kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 700×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 21,7 / 25,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
PRODUCT DATASHEET
C32.K MULTIFUNCTIONAL SCALES - C32.300.C3.K
| Maximum capacity [Max] | |
|---|
| Minimum load | 2kg |
|---|
| Readability [d] | 100g |
|---|
| Tare range | -300kg |
|---|
| Stabilization time | |
|---|
| Operating temperature | -10 ÷ +40°C |
|---|
| Weighing pan dimensions | 700×500mm |
|---|
| Power supply | 100 ÷ 240 V AC 50 ÷ 60 Hz / 12 V DC / battery* |
|---|
| Display | 5" graphic colour |
|---|
| Communication interface | 2×RS232, 1×USB A, 1×USB B, 1×Ethernet, 4×IN,4×OUT, Wireless Connection |
|---|
| Packaging dimensions | 850×800×270mm |
|---|
| Adjustment | |
|---|
| Net weight | |
|---|
| Gross weight | |
|---|
| Atmospheric humidity | |
|---|
| Power consumption | 10 W |
|---|
| Add weighing platform module | |
|---|
| Construction | mild steel |
|---|
| Controling device dimensions | |
|---|
| Housing | |
|---|
| Inputs/Outputs (option) | |
|---|
| Net weight/gross weight | 21,7 / 25,5kg |
|---|
| OIML Class | III |
|---|
| Operation time on batteries | do 5 h ciągłej pracy |
|---|
| Protection class | IP 43 (terminal), IP 65 (construction) |
|---|
| Verification scale interval | |
|---|
| Weighing pan material | stainless steel |
|---|
