Code: 3807

Clear
Add to quote
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

PRODUCT SERIES

ImageSKUModelVerificationMaximum capacityReadabilityPan size
C315.4P pallet scales - C315.4P.1500/3000.C
3807-WP-239-1000C315.4P.1500/3000.C1500/3000 kg500/1000 g840×1200 mm
C315.4P pallet scales - C315.4P.1500.C
3807-WP-239-0001C315.4P.1500.C1500 kg500 g840×1200 mm
C315.4P pallet scales - C315.4P.3000.C
3807-WP-239-0002C315.4P.3000.C3000 kg1000 g840×1200 mm
C315.4P pallet scales - C315.4P.600/1500.C
3807-WP-239-1001C315.4P.600/1500.C600/1500 kg200/500 g840×1200 mm
C315.4P pallet scales - C315.4P600.C
3807-WP-239-0003C315.4P600.C600 kg200 g840×1200 mm

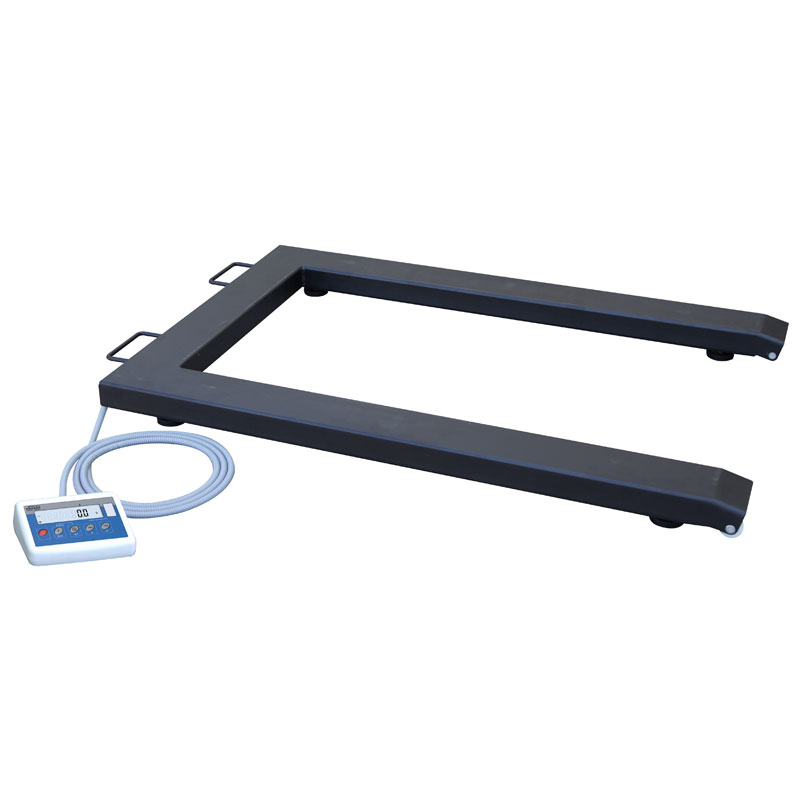

Pallet scales is stable and proved 4 load cell construction designed for weighing pallets. The load to be weighed can be placed on the platform by a standard fork-lift truck. The pallet scales C315.4P series is manufactured in mild steel powder coated version.

The H315/4P series features wheels and handles for easy transporting the scales to its place of use. The scales comes standard with an indicator PUE C315 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.

Scales is available in dual range version on surcharge.
