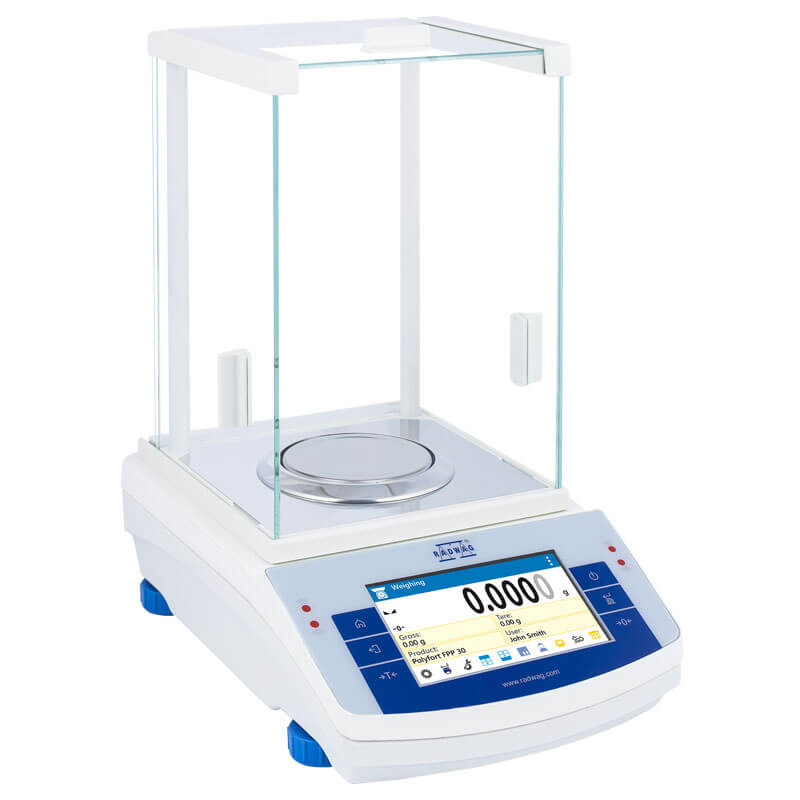

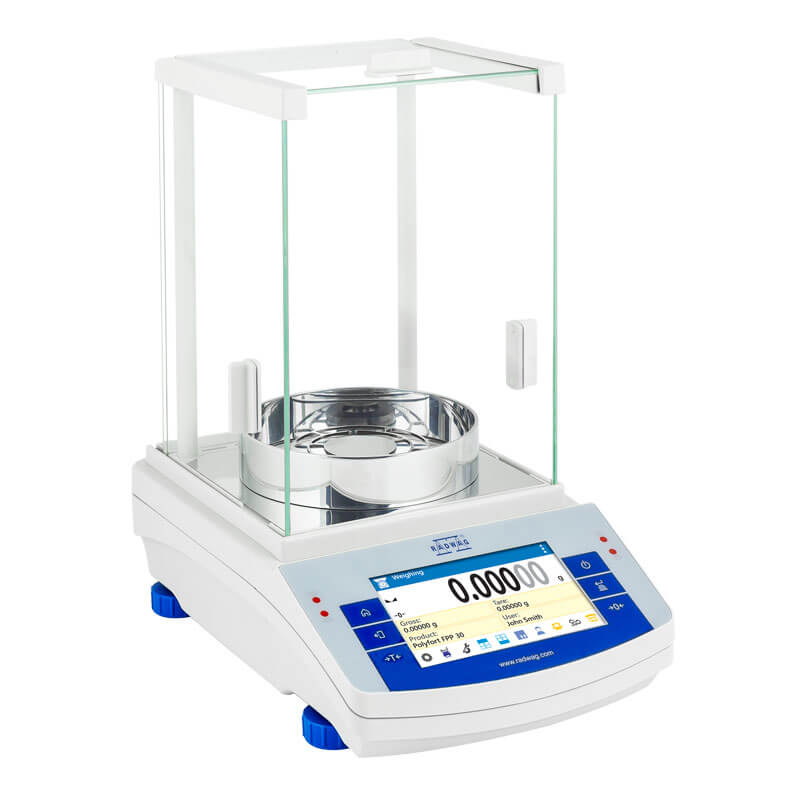

AS X2 ANALYTICAL BALANCES

Code: R125

PRODUCT SERIES

SKU	Model	Maximum capacity	Readability	Pan size
WL-104-0080	AS 310.X2	310g	0,1mg	? 100mm
WL-104-0079	AS 220.X2	220g	0,1mg	ø 100mm
WL-104-1020	AS 82/220.X2	82/220g	0,01/0,1mg	ø 90 + ø 85 (option)mm
WL-104-1024	AS 60/220.X2	60/220g	0,01/0,1mg	ø 90 + ø 85 (option)mm

Please, use model selector above to see product datasheet.

Maximum capacity [Max]	310g
Minimum load	10mg
Readability [d]	0,1mg
Power supply	12 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity
Communication interface	2×RS 232, USB-A, USB-B, Wireless Connection
Database capacity	7
Display	5" capacitive colour panel tactile
Gross weight	7,3kg
Linearity	±0,3mg
Net weight	5,3kg
Operating temperature	+10 ° - +40 °C
Packaging dimensions	495×400×515mm
Repeatability (5% Max)	0,08mg
Repeatability (Max)	0,15mg
Sensitivity drift	1 ppm/°C in temperature +10 ° - +40 °C
Stabilization time	2,5s
Tare range	-310g
Weighing pan dimensions	? 100mm
Minimum weight (USP)	140mg
Minimum weight (U=1%,k=2)	14mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Weighing chamber dimensions
Power consumption	250 mA
Touch-free operation	2 infrared sensors
Repeatability
Sensitivity tempr drift
Weight

Maximum capacity [Max]	220g
Minimum load	10mg
Readability [d]	0,1mg
Power supply	12 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity
Communication interface	2×RS 232, USB-A, USB-B, Wireless Connection
Database capacity	7
Display	5" capacitive colour panel touchscreen
Gross weight	7,3kg
Linearity	±0,2mg
Net weight	5,3kg
Operating temperature	+10 ° - +40 °C
Packaging dimensions	495×400×515mm
Repeatability (5% Max)	0,08mg
Repeatability (Max)	0,1mg
Sensitivity drift	1 ppm/°C in temperature +10 ° - +40 °C
Stabilization time	2s
Tare range	-220g
Weighing pan dimensions	ø 100mm
Minimum weight (USP)	140mg
Minimum weight (U=1%,k=2)	14mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Weighing chamber dimensions
Power consumption	250 mA
Touch-free operation	2 IR Sensors
Repeatability
Sensitivity tempr drift
Weight

Maximum capacity [Max]	82/220g
Minimum load	1mg
Readability [d]	0,01/0,1mg
Power supply	12 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity
Communication interface	2×RS 232, USB-A, USB-B, Wireless Connection
Database capacity	7
Display	5" capacitive colour panel touchscreen
Gross weight	7,3kg
Linearity	±0,06mg
Net weight	5,3kg
Operating temperature	+10 ° - +40 °C
Packaging dimensions	495×400×515mm
Repeatability (5% Max)	0,015mg
Repeatability (Max)	0,1mg
Sensitivity drift	1 ppm/°C in temperature +10 ° - +40 °C
Stabilization time	2s
Tare range	-220g
Weighing pan dimensions	ø 90 + ø 85 (option)mm
Minimum weight (USP)	30mg
Minimum weight (U=1%,k=2)	3mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Weighing chamber dimensions
Power consumption	250 mA
Touch-free operation	2 IR Sensors
Repeatability
Sensitivity tempr drift
Weight

Maximum capacity [Max]	60/220g
Minimum load	1mg
Readability [d]	0,01/0,1mg
Power supply	12 ÷ 16 V DC
Adjustment	internal (automatic)
Atmospheric humidity
Communication interface	2×RS 232, USB-A, USB-B, Wireless Connection
Database capacity	7
Display	5" capacitive colour panel touchscreen
Gross weight	7,3kg
Linearity	±0,06mg
Net weight	5,3kg
Operating temperature	+10 ° - +40 °C
Packaging dimensions	495×400×515mm
Repeatability (5% Max)	0,015mg
Repeatability (Max)	0,1mg
Sensitivity drift	1 ppm/°C in temperature +10 ° - +40 °C
Stabilization time	2s
Tare range	-220g
Weighing pan dimensions	ø 90 + ø 85 (option)mm
Minimum weight (USP)	30mg
Minimum weight (U=1%,k=2)	3mg
Eccentric load deviation
Sensitivity offset
Sensitivity time drift
Weighing chamber dimensions
Power consumption	250 mA
Touch-free operation	2 IR Sensors
Repeatability
Sensitivity tempr drift
Weight
