AS 3Y ANALYTICAL BALANCES - AS 510.3Y
| Maximum capacity [Max] | |
|---|
| Minimum load | 10mg |
|---|
| Readability [d] | 0,1mg |
|---|
| Power supply | 13,5 ÷ 16 V DC |
|---|
| Adjustment | internal (automatic) |
|---|
| Atmospheric humidity | |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Database capacity | |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Gross weight | 11kg |
|---|
| Linearity | ±0,4mg |
|---|
| Net weight | 6,2kg |
|---|
| Operating temperature | +10 ÷ +40°C |
|---|
| Packaging dimensions | 600×400×540mm |
|---|
| Repeatability (5% Max) | 0,1mg |
|---|
| Repeatability (Max) | 0,3mg |
|---|
| Sensitivity drift | 1ppm/°C in temperature +15 - +35°C |
|---|
| Stabilization time | 3,5s |
|---|
| Tare range | -510g |
|---|
| Weighing pan dimensions | ø 100mm |
|---|
| Minimum weight (USP) | 200mg |
|---|
| Minimum weight (U=1%,k=2) | 20mg |
|---|
| Eccentric load deviation | |
|---|
| Sensitivity offset | |
|---|
| Sensitivity time drift | |
|---|
| Weighing chamber dimensions | |
|---|
| Power consumption | 7 W |
|---|
| Touch-free operation | |
|---|
| Repeatability | |
|---|
| Sensitivity tempr drift | |
|---|
| Weight | |
|---|
PRODUCT DATASHEET
AS 3Y ANALYTICAL BALANCES - AS 310.3Y
| Maximum capacity [Max] | |
|---|
| Minimum load | 10mg |
|---|
| Readability [d] | 0,1mg |
|---|
| Power supply | 13,5 ÷ 16 V DC |
|---|
| Adjustment | internal (automatic) |
|---|
| Atmospheric humidity | |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Database capacity | |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Gross weight | 11kg |
|---|
| Linearity | ±0,3mg |
|---|
| Net weight | 6,2kg |
|---|
| Operating temperature | +10 ÷ +40°C |
|---|
| Packaging dimensions | 600×400×540mm |
|---|
| Repeatability (5% Max) | 0,08mg |
|---|
| Repeatability (Max) | 0,15mg |
|---|
| Sensitivity drift | 1ppm/°C in temperature +15 - +35°C |
|---|
| Stabilization time | 3,5s |
|---|
| Tare range | -310g |
|---|
| Weighing pan dimensions | ø 100mm |
|---|
| Minimum weight (USP) | 160mg |
|---|
| Minimum weight (U=1%,k=2) | 16mg |
|---|
| Eccentric load deviation | |
|---|
| Sensitivity offset | |
|---|
| Sensitivity time drift | |
|---|
| Weighing chamber dimensions | |
|---|
| Power consumption | 7 W |
|---|
| Touch-free operation | |
|---|
| Repeatability | |
|---|
| Sensitivity tempr drift | |
|---|
| Weight | |
|---|
PRODUCT DATASHEET

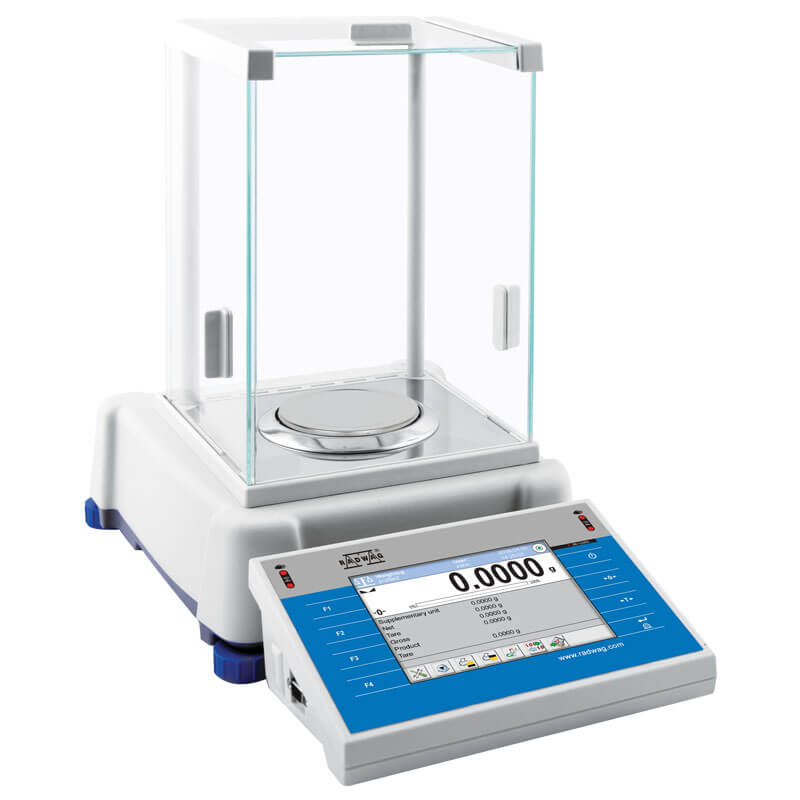

AS 3Y ANALYTICAL BALANCES - AS 220.3Y
| Maximum capacity [Max] | |
|---|
| Minimum load | 10mg |
|---|
| Readability [d] | 0,1mg |
|---|
| Power supply | 13,5 ÷ 16 V DC |
|---|
| Adjustment | internal (automatic) |
|---|
| Atmospheric humidity | |
|---|
| Communication interface | 2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs (digital), Wireless Connection |
|---|
| Database capacity | |
|---|
| Display | 5,7'' (panel touchscreen) |
|---|
| Gross weight | 11kg |
|---|
| Linearity | ±0,2mg |
|---|
| Net weight | 6,2kg |
|---|
| Operating temperature | +10 ÷ +40°C |
|---|
| Packaging dimensions | 600×400×540mm |
|---|
| Repeatability (5% Max) | 0,08mg |
|---|
| Repeatability (Max) | 0,1mg |
|---|
| Sensitivity drift | 1ppm/°C in temperature +15 - +35°C |
|---|
| Stabilization time | 3,5s |
|---|
| Tare range | -220g |
|---|
| Weighing pan dimensions | ø 100mm |
|---|
| Minimum weight (USP) | 160mg |
|---|
| Minimum weight (U=1%,k=2) | 16mg |
|---|
| Eccentric load deviation | |
|---|
| Sensitivity offset | |
|---|
| Sensitivity time drift | |
|---|
| Weighing chamber dimensions | |
|---|
| Power consumption | 7 W |
|---|
| Touch-free operation | |
|---|
| Repeatability | |
|---|
| Sensitivity tempr drift | |
|---|
| Weight | |
|---|
