Code: 1466

Clear
Add to quote
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

PRODUCT SERIES

ImageSKUModelVerificationMaximum capacityReadabilityPan size
APP 5Y.KO Manual Mass Comparator - APP10.5Y.KO
1466-WL-407-0036APP10.5Y.KO10,2 kg0,1 mgø190 (ø300) mm
APP 5Y.KO Manual Mass Comparator - APP30.5Y.KO
1466-WL-407-0037APP30.5Y.KO30,5 kg1 mgø220 (ø300) mm
APP 5Y.KO Manual Mass Comparator - APP64.5Y.KO
1466-WL-407-0038APP64.5Y.KO64 kg10 mgø300 (ø400) mm

The newest line of Radwag Mass Comparators enables adjusting mass standards and weights according to the OIML recommendations (R-111) from 5 kg to 20kg for E1 class and lower.

Mass comparators are used both for ensuring traceability of mass measurements, and verification of weights in accordance with the principles of legal metrology. RADWAG Mass Comparators have gained recognition among Accredited Calibration Laboratories in many countries.

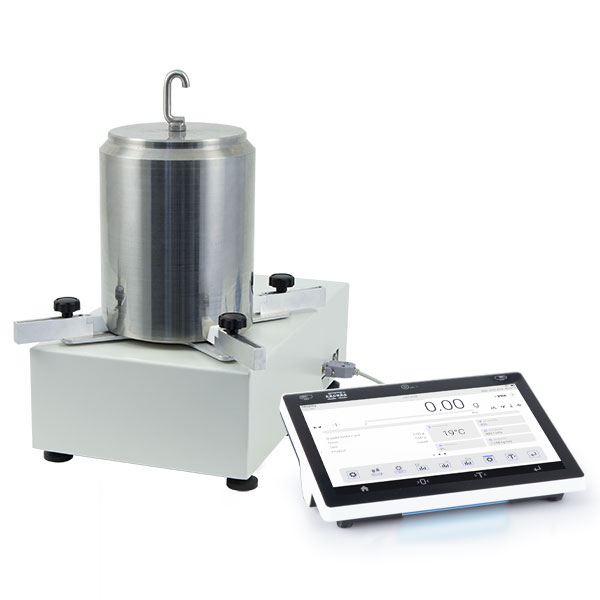

Mass comparator APP 5Y.KO series comprises two components. One of them holds the electronic module, and the other precise mechanical measuring system.
High measuring accuracy is guaranteed by semi-automatic adjustment system with external mass standard. The weighing pan made of aluminium is covered with cork layer and features centering holders for the weights. The APP 5Y.KO series features an intuitive menu supporting a user in instrument operation.

Correct operation of the mass comparator requires applying a special anti-draft shield which comes standard with the instrument.
