Name: CY10 Multifunctional Scale
SKU: 4221
Availability: InStock

PRODUCT SERIES

SKU	Model	Maximum capacity	Readability	Pan size
4221-WP-125-1000	CY10.0,6/1,5.D2.K.M3	0,6/1,5 kg	0,2/0,5 g	195×195 mm
4221-WP-125-0001	CY10.0,6.D2.K.M3	0,6 kg	0,2 g	195×195 mm
4221-WP-125-1001	CY10.1,5/3.D2.K.M3	1,5/3 kg	0,5/1 g	195×195 mm
4221-WP-125-0002	CY10.1,5.D2.K.M3	1,5 kg	0,5 g	195×195 mm
4221-WP-125-0007	CY10.1,5.F1.K.M3	1,5 kg	0,5 g	300×300 mm
4221-WP-125-1008	CY10.15/30.C2.K.M3	15/30 kg	5/10 g	400×500 mm
4221-WP-125-1012	CY10.15/30.C3.K.M3	15/30 kg	5/10 g	500×700 mm
4221-WP-125-1007	CY10.15/30.F1.K.M3	15/30 kg	5/10 g	300×300 mm
4221-WP-125-0022	CY10.15.C2.K.M3	15 kg	5 g	400×500 mm
4221-WP-125-0037	CY10.15.C3.K.M3	15 kg	5 g	500×700 mm
4221-WP-125-0005	CY10.15.D2.K.M3	15 kg	5 g	195×195 mm
4221-WP-125-0016	CY10.15.F1.K.M3	15 kg	5 g	300×300 mm
4221-WP-125-1011	CY10.150/300.C2.K.M3	150/300 kg	50/100 g	400×500 mm
4221-WP-125-1015	CY10.150/300.C3.K.M3	150/300 kg	50/100 g	500×700 mm
4221-WP-125-0031	CY10.150.C2.K.M3	150 kg	50 g	400×500 mm
4221-WP-125-0043	CY10.150.C3.K.M3	150 kg	50 g	500×700 mm
4221-WP-125-1002	CY10.3/6.D2.K.M3	3/6 kg	1/2 g	195×195 mm
4221-WP-125-1005	CY10.3/6.F1.K.M3	3/6 kg	1/2 g	300×300 mm
4221-WP-125-0003	CY10.3.D2.K.M3	3 kg	1 g	195×195 mm
4221-WP-125-0010	CY10.3.F1.K.M3	3 kg	1 g	300×300 mm
4221-WP-125-1009	CY10.30/60.C2.K.M3	30/60 kg	10/20 g	400×500 mm
4221-WP-125-1013	CY10.30/60.C3.K.M3	30/60 kg	10/20 g	500×700 mm
4221-WP-125-0025	CY10.30.C2.K.M3	30 kg	10 g	400×500 mm
4221-WP-125-0039	CY10.30.C3.K.M3	30 kg	10 g	500×700 mm
4221-WP-125-0019	CY10.30.F1.K.M3	30 kg	10 g	300×300 mm
4221-WP-125-0034	CY10.300.C2.K.M3	300 kg	100 g	400×500 mm
4221-WP-125-0045	CY10.300.C3.K.M3	300 kg	100 g	500×700 mm
4221-WP-125-1003	CY10.6/15.D2.K.M3	6/15 kg	2/5 g	195×195 mm
4221-WP-125-1006	CY10.6/15.F1.K.M3	6/15 kg	2/5 g	300×300 mm
4221-WP-125-0004	CY10.6.D2.K.M3	6 kg	2 g	195×195 mm
4221-WP-125-0013	CY10.6.F1.K.M3	6 kg	2 g	300×300 mm
4221-WP-125-1010	CY10.60/150.C2.K.M3	60/150 kg	20/50 g	400×500 mm
4221-WP-125-1014	CY10.60/150.C3.K.M3	60/150 kg	20/50 g	500×700 mm
4221-WP-125-0028	CY10.60.C2.K.M3	60 kg	20 g	400×500 mm
4221-WP-125-0041	CY10.60.C3.K.M3	60 kg	20 g	500×700 mm

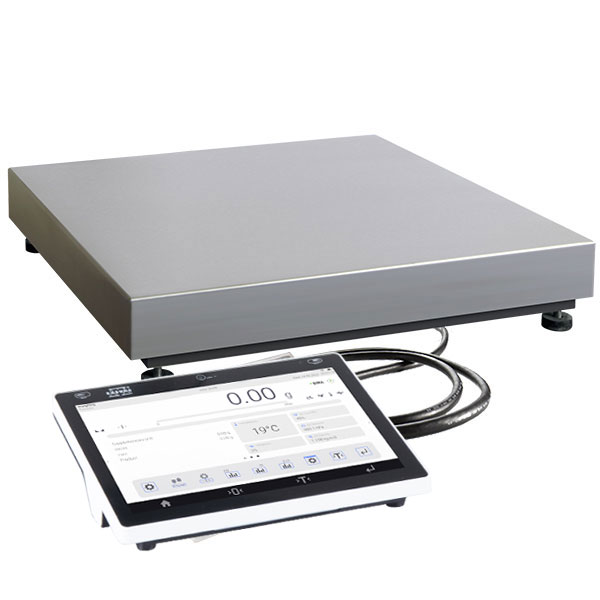

The CY10 series 1 load cell platform scale is designed for quick and accurate weight determination using the CY10 PUE advanced terminal.

Labeling Scale Functionality

The CY10 series 1 load cell platform scale can work like a labeling scale thanks to the terminal which:

cooperates with the computer program Label Editor R02
is compatible with ZEBRA label printers
supports single labels, bulk labels and bulk from bulk labels
allows import/export of label designs using a pendrive
enables you to assign labels to goods or customers and print a global label.

Software for Special Tasks

Thanks to the terminal advanced software, the CY10 series 1 load cell platform scale:

cooperates with up to 2 weighing platforms
updates statistical data separately for each commodity or globally
has a Tare mode expanded to include End-product issue mode capability
works with RFID tags*.

* RFID ISO/IEC 14443 Type A, 13,56 MHz
